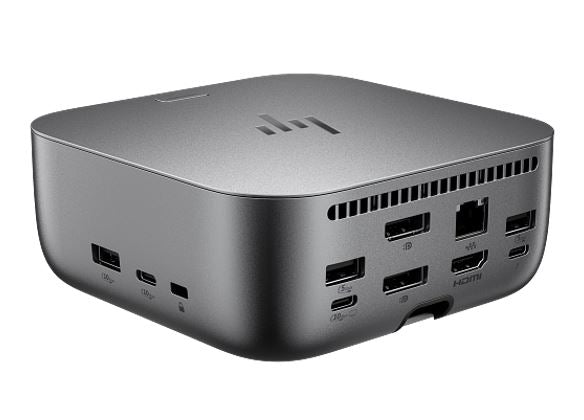

HP Dock G6 Thunderbolt 4 Ultra Docking Station 280W
HP Dock G6 Thunderbolt 4 Ultra Docking Station 280W
SKU:NAHP-DOCKG6280W
The HP Dock G6 is a Thunderbolt 4 docking station designed for mobile professionals and workstation users. Featuring 280W power delivery, quad-display support, and comprehensive connectivity options, it delivers seamless multi-monitor productivity for creative professionals and business users.
Couldn't load pickup availability
- See our return policy
- 3-year limited warranty Manufacturer Warranty
Product Information
| Brand | HP |
|---|---|
| Category | Notebook Accessories |
| SKU | NAHP-DOCKG6280W |
| Availability | In Stock |
Overview
- The HP Dock G6 Thunderbolt 4 Ultra Docking Station is a professional-grade connectivity hub designed for users demanding high performance and extensive I/O expansion. With support for up to 4 external displays and 280W power delivery, it transforms any compatible laptop into a full-featured workstation without requiring multiple adapters or cables.
Build quality and compatibility are core strengths. Tested and validated with HP commercial PCs, workstations, and select third-party systems from Dell, Lenovo, and Apple, the dock provides a unified solution for enterprise environments. The Thunderbolt 4 connection delivers 40 Gbps signaling rates, ensuring fast data transfer alongside display output and power delivery through a single cable.
Management features including Intel vPro Technology support, Wake on LAN, and Poly Lens firmware updates make this dock ideal for IT departments managing distributed workforces. The compact 12.1 x 12.1 x 4.95 cm footprint fits easily on any desk while delivering professional-grade expansion with quad-display capability, comprehensive USB connectivity, and 2.5 GbE networking.
Specifications
| Connection Type | Thunderbolt 4 and 4.5 mm power barrel |
|---|---|
| Power Delivery | Up to 280W via 4.5 mm power barrel; up to 180W via Thunderbolt 4 cable (Power Delivery 3.1) |
| External Power Adapter | 330W |
| Display Support | Up to 4 external displays or 3 external displays plus 1 PC display |
| Maximum Resolution | 8K |
| Maximum Refresh Rate | 360 Hz |
| Ports | {"Thunderbolt 4"=>"1x (40 Gbps)", "USB Type-C"=>"1x (10 Gbps, Power Delivery, DisplayPort 1.4)", "USB Type-A"=>"2x (5 Gbps, charging capable)", "DisplayPort"=>"2x (1.4)", "HDMI"=>"1x (2.1)", "Ethernet"=>"1x RJ-45 (2.5 GbE)"} |
| Cable | 1m Thunderbolt 4 cable included |
| Dimensions | 12.1 x 12.1 x 4.95 cm (W x D x H) |
| Package Dimensions | 39.6 x 17.1 x 9.5 cm (W x D x H) |
| Weight | 1.14 kg |
| Operating Temperature | 0–35°C (32–95°F) |
| Operating Humidity | 10–90% non-condensing |
| Operating Altitude | -15 to 3,048 m |
| Security | 1x nano security lock slot |
| LED Indicators | Front RGB LED bar and power button RGB LED (white, blue, amber, green, red) |
| Management Features | HP CMSL, Intel vPro Technology, Wake on LAN, MAC address pass-through, PXE Boot, eTag, Disconnected Firmware updates, LAN/WLAN switching |
| Management Software | Poly Lens with automatic firmware updates |
| Compatible Operating Systems | Windows 10, Windows 11, macOS, Linux, ThinPro, ChromeOS |
| Compatibility | Tested with HP commercial PCs and select third-party systems (Dell, Lenovo, Apple) |
| Warranty | 3-year limited warranty |
Key Features
Ideal For
FAQs
What devices are compatible with the HP Dock G6 Thunderbolt 4?
The dock is tested and supported on select HP commercial PCs and workstations with Thunderbolt 4 ports. It has also been tested with select third-party systems including Dell, Lenovo, and Apple devices. For specific notebook compatibility, consult HP's compatibility checker or contact your sales representative.
How many displays can the HP Dock G6 support?
The dock supports up to 4 external displays simultaneously, or alternatively, up to 3 external displays plus the PC's built-in display. It supports up to 8K resolution with a maximum refresh rate of 360 Hz.
What is the maximum power delivery capability?
The dock delivers up to 280W of power to your host device via the 4.5 mm power barrel connector, or up to 180W via the Thunderbolt 4 cable. The external power adapter is rated at 330W.
Can the HP Dock G6 work with non-HP devices?
Yes. The dock has been tested and validated with select third-party systems from Dell, Lenovo, and Apple. All compatible devices must have a USB Type-C or Thunderbolt 4 port with Power Delivery and DisplayPort Alt Mode support. Contact your sales representative for specific compatibility confirmation.
Which operating systems are supported?
The dock supports Windows 10, Windows 11, macOS, Linux, ThinPro, and ChromeOS. Drivers for Intel and Realtek network controllers are included.
Does the dock include management software?
Yes. Poly Lens is included, which provides automatic firmware updates and device management capabilities. The dock also supports Intel vPro Technology, Wake on LAN, PXE Boot, and other enterprise management features.
What is the cable length?
The included Thunderbolt 4 cable is 1 metre long, providing flexibility in desk setup and positioning.
What warranty does the HP Dock G6 include?
The dock is covered by HP's three-year limited warranty.
