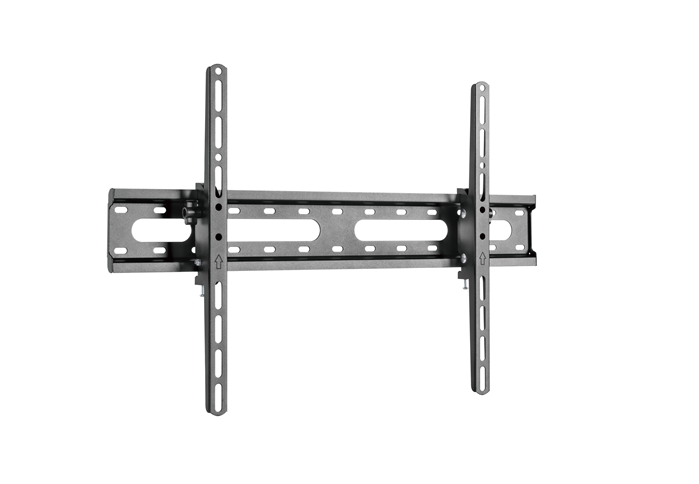

Brateck KL31-46T Tilt TV Wall Mount 37–80 inch
Brateck KL31-46T Tilt TV Wall Mount 37–80 inch
SKU:MABT-KL31-46T
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-KL31-46T |
| Availability | In Stock |
Overview
- The Brateck KL31-46T is an economy-class tilt TV wall mount engineered for large-format displays up to 80 inches. Its robust steel construction and precision engineering support screens weighing up to 45 kg, making it ideal for corporate and commercial environments.
The mount delivers practical tilting adjustment (±12° range) via easy-grip knobs, allowing users to optimise viewing angles without tools. Security screws and a fixed wall plate provide stability in high-traffic areas, while VESA and universal mounting compatibility ensures broad TV support.
Designed for solid walls and double-stud installations, the KL31-46T includes a hook-on bubble level to ensure accurate, level mounting. The compact 53 mm profile minimises wall protrusion, making it suitable for modern office and retail spaces.
Specifications
| Product Type | Tilt TV Wall Mount |
|---|---|
| Rank | Economy |
| Fit Screen Size | 37–80 inches |
| Weight Capacity | 45 kg (99 lbs) |
| Tilt Range | ±12° |
| VESA Compatibility | 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400 |
| Max Mounting Hole | 600×400 |
| Curved TV Compatible | Yes |
| Material | Steel, plastic |
| Bracket Arm Thickness | 1.4 mm cold-rolled steel |
| Wall Plate Thickness | 1.4 mm cold-rolled steel |
| Surface Finish | Powder coating |
| Colour | Fine texture black |
| Dimensions | 53×635×420 mm |
| Profile Depth | 53 mm |
| Panel Type | Detachable |
| Wall Plate Type | Fixed |
| Installation Type | Solid wall, double stud (406 mm, 450 mm, 600 mm) |
| Accessories Included | Hook-on bubble level |
| Direction Indicator | Yes |
| Strength Testing | 4× approved |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What screen sizes does the Brateck KL31-46T support?
The mount supports screens from 37 to 80 inches with a maximum weight capacity of 45 kg, making it suitable for large conference room and commercial displays.
Is the KL31-46T compatible with curved TVs?
Yes, the mount is compatible with curved TVs, providing flexibility for modern curved display installations.
What VESA patterns does this mount support?
The KL31-46T supports multiple VESA patterns including 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, and 600×400, plus universal mounting hole patterns.
What is the tilt range of the KL31-46T?
The mount provides ±12° tilt adjustment via easy-grip knobs, allowing users to optimise viewing angles for different room configurations.
How is the KL31-46T installed?
The mount is designed for installation on solid walls or double-stud framing (406 mm, 450 mm, or 600 mm spacing). It includes a bubble level to ensure accurate, level mounting.
What warranty is included with the KL31-46T?
The Brateck KL31-46T includes a 36-month warranty, providing long-term peace of mind for commercial and office installations.
Does the mount include cable management features?
The KL31-46T does not include built-in cable management, but its fixed wall plate and detachable panel design allow for straightforward cable routing behind the TV.
