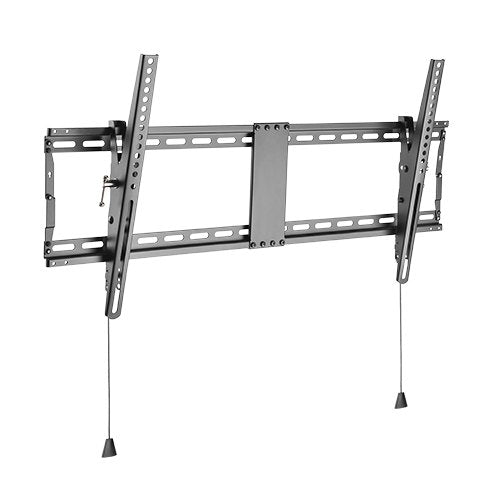

Brateck LP59-48T Heavy Duty Tilt TV Wall Mount 43-90 Inch
Brateck LP59-48T Heavy Duty Tilt TV Wall Mount 43-90 Inch
SKU:MABT-LP59-48T
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LP59-48T |
| Availability | In Stock |
Overview
- The Brateck LP59-48T is a professional-grade tilt wall mount engineered for large-format displays up to 90 inches. With a robust 70kg weight capacity and steel construction, it provides dependable mounting for demanding commercial and business environments.
The innovative foldable design reduces both shipping costs and physical footprint when not in use, while the toolless tilt mechanism allows quick angle adjustments without additional tools. The open wall plate architecture provides clear access for cable routing and ventilation, essential for installations with multiple connectivity requirements.
Security is built in with an anti-theft locking hole and automatic spring locks that enable quick TV removal while preventing unauthorised access. This combination of functionality, durability, and security makes it ideal for high-value display installations across hospitality, retail, corporate, and educational settings.
Specifications
| Brand | Brateck |
|---|---|
| Model | LP59-48T |
| Product Type | Tilt TV Wall Mount |
| Colour | Matte Black |
| Material | Steel with powder coating |
| Wall Plate Thickness | 2mm cold-rolled sheet |
| Dimensions (W x H x D) | 49 x 890 x 431mm |
| Screen Size Compatibility | 43 to 90 inches |
| Curved TV Compatible | Yes |
| Weight Capacity | 70kg (154lbs) |
| Tilt Range | +3° to -12° |
| VESA Compatibility | 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400, 800x400 |
| Maximum VESA | 855 x 405mm |
| Mount Profile Depth | 49mm |
| Wall Installation Type | Double stud (406mm/450mm/600mm) or solid wall |
| Wall Plate Type | Fixed, detachable panel |
| Bubble Level | Hook-on bubble level included |
| Anti-Theft | Yes, with locking hole |
| Cable Management | Open architecture, no integrated cable tray |
| Strength Testing | 4x approved |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What is the maximum TV size and weight the Brateck LP59-48T can support?
The mount supports TVs up to 90 inches in size with a maximum weight capacity of 70kg (154lbs). Always verify your TV's VESA mounting pattern and weight specifications before installation.
Is the Brateck LP59-48T compatible with curved TVs?
Yes, the LP59-48T is designed to accommodate curved TVs, making it suitable for modern display technology.
What are the VESA mounting patterns supported by this mount?
The mount supports VESA patterns including 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400, and 800x400mm, covering most commercial and consumer displays.
Does the mount include tools and hardware for installation?
The mount comes with a hook-on bubble level and quality steel hardware. Installation requires mounting to double studs (406mm, 450mm, or 600mm spacing) or solid wall surfaces. Confirm wall structure and fasteners are appropriate for your installation location.
What are the tilt adjustment capabilities?
The mount offers a tilt range of +3° to -12°, allowing adjustments to reduce glare and optimise viewing angles. Adjustment is toolless, making it quick and easy to reposition the display.
How does the foldable design benefit installations?
The foldable design reduces shipping costs and physical footprint. The arm folds away when the TV is not in use, helping save space in facilities where the display needs to be out of sight when powered down.
What security features does the LP59-48T provide?
The mount includes an anti-theft locking hole for use with a padlock (sold separately) and automatic spring locks with quick release cords. These features prevent unauthorised TV removal whilst allowing authorised personnel to remove the display quickly.
Is cable management integrated into this mount?
The mount features open architecture with an accessible wall plate, allowing clear cable routing and ventilation. There is no integrated cable tray, but the open design provides excellent access for multiple cables and connections.
