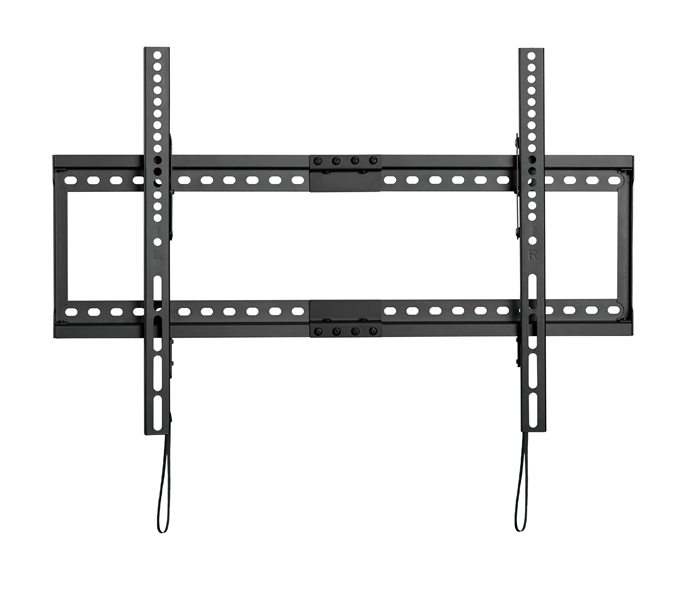

Brateck LP72-46T Tilt TV Wall Mount 37-80 inch
Brateck LP72-46T Tilt TV Wall Mount 37-80 inch
SKU:MABT-LP72-46T
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LP72-46T |
| Availability | In Stock |
Overview
- The Brateck LP72-46T is a robust tilt TV wall mount engineered for large-format displays from 37 to 80 inches. Its free-tilting mechanism allows easy forward or backward adjustment to reduce glare and optimise viewing comfort, making it ideal for both residential and commercial spaces.
Built from 1.5mm cold-rolled steel with powder-coat finish, the mount delivers reliable performance and durability. The automatic spring-lock system with quick-release cords enables quick and safe TV removal when needed, while the open architecture design ensures excellent ventilation around mounted equipment and unobstructed cable routing.
This mount supports an extensive range of VESA patterns from 150×100mm up to 600×400mm, making it compatible with virtually all modern television models. The detachable panel design reduces package dimensions, lowering transport and storage costs—particularly valuable for e-commerce and multi-location deployments.
Specifications
| Product Type | Tilt TV Wall Mount |
|---|---|
| Bracket Material | Cold-rolled steel |
| Material Thickness | 1.5mm (bracket arm and wall plate) |
| Surface Finish | Powder coating |
| Colour | Fine texture black |
| Screen Size Compatibility | 37 to 80 inches |
| Curved TV Support | Yes |
| VESA Mounting Patterns | 150×100, 200×100, 150×150, 200×200, 300×200, 200×400, 400×200, 300×300, 400×300, 600×200, 350×350, 400×400, 600×300, 600×400mm |
| Maximum VESA Pattern | 600×400mm |
| Weight Capacity | 75kg (165lbs) |
| Tilt Range | 0° to -8° |
| Profile Depth | 37mm |
| Mounted Dimensions | 37 × 641 × 420mm |
| Wall Compatibility | Solid wall, double stud (406mm/450mm/600mm spacing) |
| Panel Type | Detachable |
| Wall Plate | Fixed wall plate |
| Direction Indicator | Yes |
| Strength Testing | 3× approved |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What is the maximum TV size and weight this mount supports?
The Brateck LP72-46T supports TVs from 37 to 80 inches with a maximum weight capacity of 75kg. Always verify your TV's weight and VESA mounting pattern before installation.
Which VESA mounting patterns are compatible?
This mount is compatible with 14 different VESA patterns ranging from 150×100mm to 600×400mm, covering the vast majority of modern flat-screen and curved TVs.
Can I tilt the TV after it's mounted?
Yes. The free-tilting design allows adjustment between 0° and -8° (downward tilt) for optimal viewing angles and glare reduction without removing the TV.
How do I remove the TV if needed?
The automatic spring-lock system features quick-release cords that allow you to safely and quickly detach your TV without tools or additional help.
What wall types can this mount be installed on?
The mount is suitable for solid walls and double stud framing with standard spacing of 406mm, 450mm, or 600mm. Always use appropriate fasteners and anchors for your wall type.
Does this mount work with curved TVs?
Yes, the Brateck LP72-46T is designed to accommodate curved TVs as well as standard flat-screen models within the supported size and weight range.
How much space does the mount extend from the wall?
The profile depth is 37mm, providing a compact installation that keeps your TV positioned close to the wall while allowing adequate ventilation.
What is the warranty period?
This mount comes with a 60-month (5-year) warranty covering manufacturing defects and workmanship.
