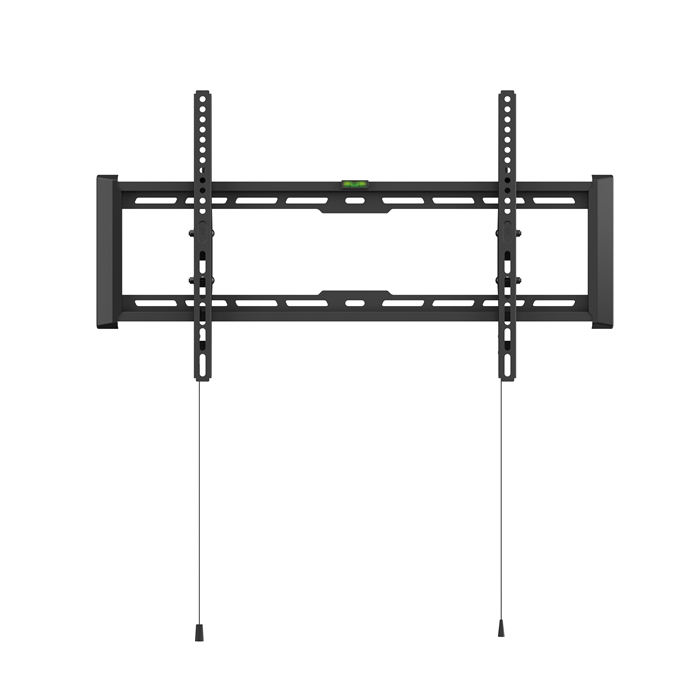

Brateck Ultra-Slim Heavy-Duty TV Wall Mount 37-80 inch
Brateck Ultra-Slim Heavy-Duty TV Wall Mount 37-80 inch
SKU:MABT-LP77-46T
The Brateck LP77-46T is an ultra-slim, heavy-duty TV wall mount designed for screens 37 to 80 inches. Featuring free-tilting adjustment, multiple VESA compatibility, and a 75 kg weight capacity, it delivers secure installation and flexible viewing angles for home and office environments.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LP77-46T |
| Availability | In Stock |
Overview
- The Brateck LP77-46T is a professional-grade TV wall mount engineered for stability and ease of installation. Its ultra-slim profile keeps the screen close to the wall while the free-tilting mechanism allows you to adjust the viewing angle after installation without additional tools. The robust steel construction with 1.5 mm cold-rolled sheet thickness ensures reliable performance under heavy loads up to 75 kg.
This mount accommodates screens from 37 to 80 inches and supports curved TVs. With compatibility across seven VESA mounting patterns, it works seamlessly with most modern television models. The automatic spring locks and quick-release cords make TV removal straightforward, while the included bubble level and decorative covers ensure professional installation and a polished final appearance.
Ideal for both residential and commercial environments, the LP77-46T combines durability with practical features that prioritise installation simplicity and user flexibility.
Specifications
| Brand | Brateck |
|---|---|
| Model | LP77-46T |
| Product Type | Tilt TV Wall Mount |
| Screen Size Range | 37–80 inches |
| Weight Capacity | 75 kg (165 lbs) |
| VESA Patterns Supported | 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400 |
| Maximum Mounting Hole | 600x405 |
| Tilt Range | +4° to −10° |
| Profile Depth | 47 mm |
| Mounting Panel Type | Detachable panel |
| Wall Plate Type | Fixed wall plate |
| Bracket Arm Thickness | 1.5 mm cold-rolled steel |
| Wall Plate Thickness | 1.5 mm cold-rolled steel |
| Surface Finish | Powder coat |
| Colour | Matte black |
| Material | Steel and plastic |
| Dimensions | 47 × 770 × 430 mm |
| Curved TV Compatible | Yes |
| Installation Type | Solid wall, double stud (406 mm, 450 mm, 600 mm spacing) |
| Levelling Adjustment | Yes, with 8 mm screen level |
| Included Accessories | Hook-on bubble level, decorative covers, quick-release cords |
| Strength Testing | 4-times approved |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What screen sizes does the Brateck LP77-46T support?
This mount supports television screens from 37 to 80 inches. It is compatible with both flat and curved TV models within this size range.
What is the maximum weight the mount can hold?
The LP77-46T has a maximum weight capacity of 75 kg (165 lbs), making it suitable for large, modern television models.
Which VESA patterns are compatible with this mount?
This mount supports seven VESA mounting patterns: 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, and 600x400, ensuring compatibility with most TV brands and models.
How much space does the mount take up from the wall?
The ultra-slim profile has a depth of just 47 mm, allowing your screen to sit close to the wall for a clean, modern appearance.
Can I adjust the viewing angle after installation?
Yes. The free-tilting design allows you to adjust the tilt angle by +4° to −10° after the mount is installed, and the included bubble level helps you achieve the perfect angle.
Is the TV easy to remove from this mount?
Yes. The automatic spring locks and quick-release cords allow you to safely and quickly detach the television without tools.
What type of wall does this mount require?
This mount is designed for solid walls or double-stud installations with spacing at 406 mm, 450 mm, or 600 mm. Ensure your wall can safely support the combined weight of the mount and television.
