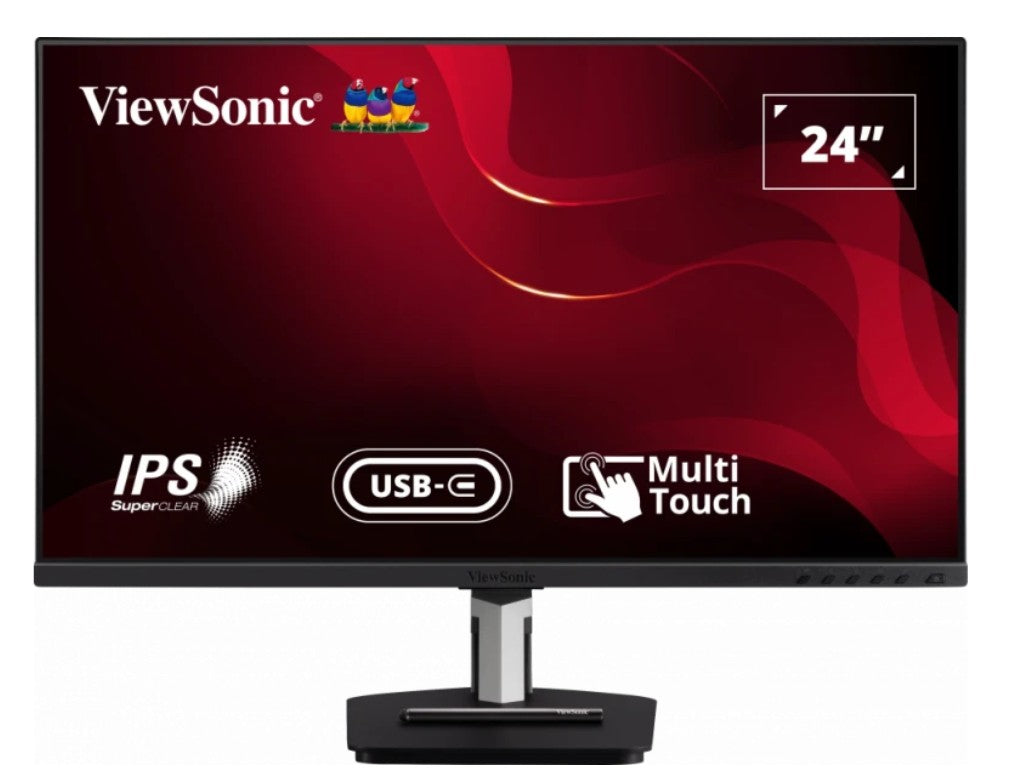

ViewSonic TD2455 24-Inch In-Cell 10-Point Touch Monitor
ViewSonic TD2455 24-Inch In-Cell 10-Point Touch Monitor
SKU:MNV-TD2455
The ViewSonic TD2455 is a 24-inch in-cell touch monitor designed for POS systems, education, and interactive applications. Featuring 10-point multi-touch, USB Type-C input with 60W power delivery, and advanced ergonomic design, it delivers responsive touch interaction for retail, hospitality, and business environments.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ViewSonic Commercial |
|---|---|
| Category | Monitors |
| SKU | MNV-TD2455 |
| Availability | Out of Stock |
Overview
- The ViewSonic TD2455 is a professional-grade 24-inch touch monitor designed for demanding commercial and educational environments. Its 10-point projected capacitive touch technology delivers responsive, accurate interaction without the need for styluses, making it ideal for self-service kiosks, interactive presentations, and collaborative workspaces.
Built with IPS panel technology and a 1920x1080 FHD resolution, the TD2455 provides clear visuals with consistent colour accuracy and wide viewing angles of 178° horizontally and vertically. The anti-glare, hard-coated surface is engineered to withstand frequent touch and high-traffic use, while flicker-free technology and blue light filtering reduce eye strain during extended operation.
Connectivity is simplified through USB Type-C with DisplayPort Alt Mode and 60W power delivery, allowing a single cable to provide video, touch, and power to the display. Additional ports include HDMI, DisplayPort, USB 3.2, and 3.5mm audio output, ensuring compatibility with diverse systems and peripherals. The monitor supports Windows, macOS, Android, Chrome, Linux, and Raspberry Pi, providing flexibility across different platforms.
With its ergonomic stand, dual internal speakers, and 36-month warranty, the TD2455 is a reliable investment for organisations seeking a durable, feature-rich touch display solution.
Specifications
| Display Size | 24 inches |
|---|---|
| Viewable Area | 23.8 inches |
| Panel Type | IPS |
| Resolution | 1920 x 1080 (FHD) |
| Aspect Ratio | 16:9 |
| Brightness | 250 cd/m² (typical) |
| Contrast Ratio (Static) | 1,000:1 (typical) |
| Contrast Ratio (Dynamic) | 50,000,000:1 |
| Colour Gamut (NTSC) | 72% |
| Colour Gamut (sRGB) | 102% |
| Colours Supported | 16.7 million |
| Response Time | 6ms (grey-to-grey) |
| Viewing Angle (Horizontal) | 178° |
| Viewing Angle (Vertical) | 178° |
| Refresh Rate | 60Hz |
| Backlight Life | 30,000 hours (minimum) |
| Touch Technology | Projected capacitive 10-point multi-touch |
| Touch Surface | Anti-glare hard coating (3H) |
| Pixel Size | 0.275mm (horizontal) x 0.275mm (vertical) |
| Flicker-Free | Yes |
| Blue Light Filter | Yes |
| Internal Speakers | 2x2 Watts |
| USB Type-C Upstream | 1 (DisplayPort Alt Mode, 60W power delivery) |
| USB Type-A Downstream | 2x USB 3.2 |
| USB Type-B Upstream | 1x USB 3.2 |
| HDMI | 1x HDMI 1.4 |
| DisplayPort | 1x input, 1x output |
| Audio Output | 1x 3.5mm |
| Power Input | 3-pin socket (IEC C14/CEE22) |
| VESA Mount Pattern | 75 x 75mm |
| OS Compatibility | Windows 7/8/8.1/10/11, macOS, Android, Chrome, Linux, Raspberry Pi |
| Max Resolution (Windows) | 1920x1080 |
| Max Resolution (macOS) | 1920x1080 |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Is the ViewSonic TD2455 suitable for outdoor or high-ambient-light environments?
The TD2455 has a brightness rating of 250 cd/m² and includes an anti-glare coating, making it suitable for most indoor retail and educational settings. For extremely bright or outdoor installations, consider the display's placement and supplementary lighting control to optimise visibility.
Can the USB Type-C connection power the monitor and provide video over a single cable?
Yes. The USB Type-C upstream port supports DisplayPort Alt Mode and includes 60W power delivery, enabling a single cable to provide video, touch control, and power simultaneously, reducing cable clutter and simplifying installation.
What operating systems are supported by the TD2455 touch functionality?
The monitor supports Windows (7, 8, 8.1, 10, 11), macOS, Android, Chrome, Linux, and Raspberry Pi. Touch drivers and compatibility should be verified with your specific OS version and system configuration.
How durable is the touch surface for high-traffic applications?
The touch surface features a 3H hard coating with anti-glare treatment, designed to withstand frequent contact in retail and educational environments. This durable construction helps maintain performance and clarity over extended use.
Does the TD2455 require a separate power supply or dedicated computer?
The monitor connects via USB Type-C, HDMI, or DisplayPort to a host computer or system. It does not function as a standalone device. Power is delivered through the 3-pin IEC C14 socket or via USB Type-C (60W).
What warranty and support is included with the TD2455?
The ViewSonic TD2455 includes a 36-month manufacturer warranty covering defects in materials and workmanship. Support and warranty terms are provided by ViewSonic and available through Hyetech Australia.
Can the monitor be wall-mounted, and what VESA standard does it support?
Yes, the TD2455 supports VESA 75x75mm mounting. It can be mounted on compatible wall brackets or stand solutions to suit your installation requirements.
