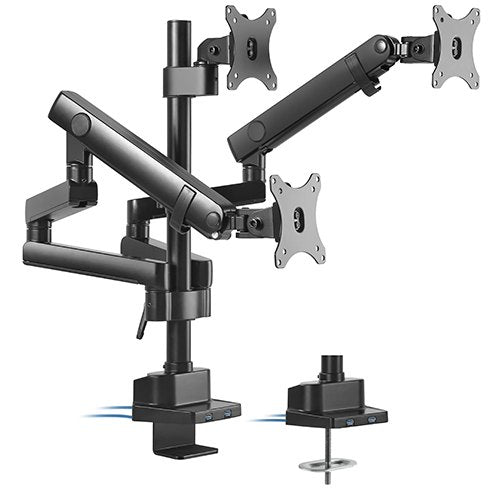

Brateck LDT20-C036UP Triple Monitor Aluminum Arm
Brateck LDT20-C036UP Triple Monitor Aluminum Arm
SKU:MABT-LDT20-C036UP
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LDT20-C036UP |
| Availability | In Stock |
Overview
- The Brateck LDT20-C036UP triple monitor arm is a premium mounting solution for organisations and professionals requiring stable, flexible multi-screen setups. Its mechanical spring system delivers smooth, tool-free height adjustment without the need for counterweights, while quick-release VESA plates make monitor swaps and maintenance straightforward.
The arm accommodates three monitors between 17 and 27 inches, with each capable of supporting up to 7kg. Full articulation—including tilt, swivel, and rotation—allows precise positioning for optimal viewing angles and ergonomic comfort. Built-in USB 3.0 connectivity and integrated cable management reduce desk clutter and improve workspace organisation.
With top-fix mounting (clamp or grommet), the LDT20-C036UP minimises underdesk obstruction, making it ideal for compact workstations or shared spaces. The robust aluminium and steel construction is backed by a 36-month warranty, ensuring reliability in demanding business environments.
Specifications
| Product Category | Mechanical Spring Monitor Arm |
|---|---|
| Product Type | Triple Monitor Arm |
| Material | Aluminium, plastic, steel |
| Surface Finish | Powder coating |
| Colour | Matte black |
| Monitor Compatibility | 17–27 inches (curved and flat) |
| VESA Patterns | 75×75 mm, 100×100 mm |
| Weight Capacity per Screen | 0–7 kg (0–15.4 lbs) |
| Number of Monitors | 3 |
| Tilt Range | +90° to −90° |
| Swivel Range | +90° to −90° |
| Screen Rotation | +90° to −90° |
| Full Arm Extension | 689 mm (27.1 inches) |
| Pole Height | 562 mm (22.1 inches) |
| Overall Dimensions | 1416×176×649 mm (55.7×6.9×25.6 inches) |
| Installation Methods | Clamp and grommet |
| Desktop Thickness Range | 10–50 mm (clamp and grommet) |
| Quick-Release VESA Plate | Yes |
| USB Ports | 2× USB 3.0 |
| Cable Management | Integrated |
| Instruction Manual | Included |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What monitor sizes and weights does the LDT20-C036UP support?
The arm supports three monitors from 17 to 27 inches, with a weight capacity of up to 7kg per monitor. It is compatible with both curved and flat screens using VESA patterns 75×75 mm or 100×100 mm.
What installation methods are available?
The arm can be installed using either a clamp or grommet mount, both of which support desktop thicknesses between 10 and 50 mm. The top-fix design minimises underdesk obstruction.
How does the mechanical spring adjustment work?
The built-in mechanical spring system allows smooth, tool-free height and tilt adjustment without requiring counterweights. The spring gauge is optimised for balanced weight distribution across your monitors.
Can I rotate or swivel the monitors independently?
Yes. Each monitor arm offers full articulation with +90° to −90° tilt, swivel, and screen rotation, allowing you to position each display at your preferred angle.
Are the VESA plates quick-release?
Yes. The quick-release VESA plates make it easy to install, remove, or swap monitors without tools, reducing setup time and supporting flexible workspace configurations.
Does the arm include cable management features?
Yes. The arm features integrated cable management to help organise and reduce desk clutter from monitor and peripheral cables.
What is the warranty period?
The Brateck LDT20-C036UP is covered by a 36-month manufacturer warranty, providing peace of mind for workplace and professional use.
