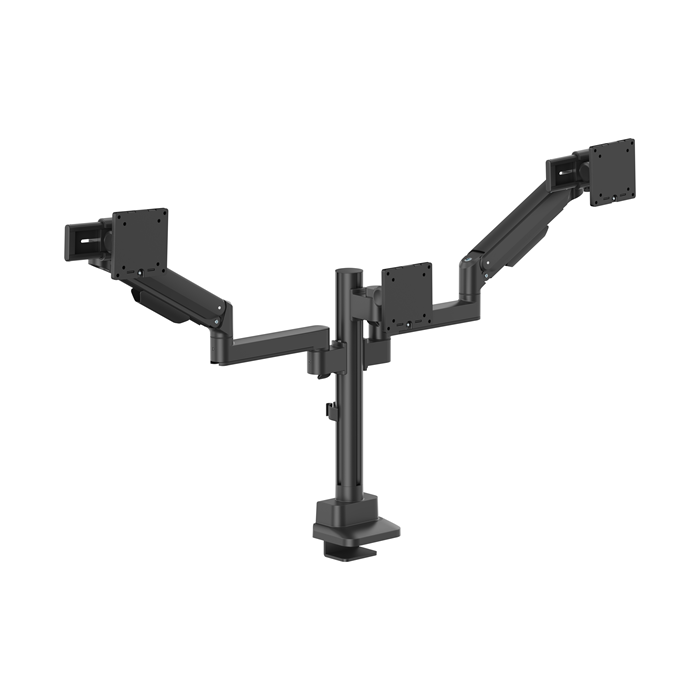

Brateck Triple Monitor Arm Mechanical Spring 17-27 inch
Brateck Triple Monitor Arm Mechanical Spring 17-27 inch
SKU:MABT-LDT86S-C034S-BLK
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LDT86S-C034S-BLK |
| Availability | In Stock |
Overview
- The Brateck LDT86S triple monitor arm is a premium solution for professionals requiring seamless multi-screen workspace organisation. Built from aluminium and steel with precision engineering, it accommodates three monitors up to 27 inches with individual weight capacities of 11kg per screen.
The mechanical spring tension system combined with a one-way bearing head mechanism ensures smooth, friction-free adjustment without sudden drops. Independent movement control allows each monitor to be positioned for optimal ergonomics, reducing neck and eye strain during extended work sessions. Universal sliders enable precise horizontal alignment across all three screens.
Installation is straightforward thanks to the quick-release VESA plate and top-mount design. The arm mounts entirely from above the desk surface using either clamp or grommet fittings, compatible with desktop thicknesses from 10–50mm. Integrated cable management keeps wiring organised and out of sight for a professional appearance.
Ideal for traders, programmers, content creators, and control room operations, this monitor arm transforms productivity in multi-screen environments whilst maintaining workspace aesthetics.
Specifications
| Brand | Brateck |
|---|---|
| Model | LDT86S-C034S |
| Product Category | Mechanical Spring Monitor Arm |
| Grade | Super Premium |
| Fit Screen Size | 17–27 inches |
| Screen Quantity | 3 monitors |
| Weight Capacity per Screen | 2–11 kg (standard) |
| Weight Capacity per Screen (Curved) | 2–10 kg |
| VESA Compatibility | 75×75 mm, 100×100 mm |
| Curved Monitor Support | Yes |
| Tilt Range | +75° to −45° |
| Swivel Range | +90° to −90° |
| Rotation Range | +180° to −180° |
| Arm Full Extension | 611 mm (24.1 inches) |
| Pole Height | 500 mm (19.7 inches) |
| Overall Dimensions | 1378×136×825 mm (54.3×5.4×32.5 inches) |
| Material | Aluminium, steel, plastic |
| Surface Finish | Paint spraying |
| Available Colours | Black, white, gloss grey |
| Installation Method | Clamp, grommet |
| Suggested Desktop Thickness | 10–50 mm |
| Quick-Release VESA Plate | Yes |
| Cable Management | Integrated |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What monitor sizes does the Brateck LDT86S support?
The LDT86S accommodates monitors from 17 to 27 inches with VESA patterns of 75×75 mm or 100×100 mm. Each monitor can weigh up to 11 kg (or 10 kg if curved).
Can I use this arm with curved monitors?
Yes, the LDT86S supports curved monitors with a weight capacity of up to 10 kg per screen, making it suitable for curved ultrawide displays.
How difficult is installation?
Installation is straightforward. The arm features a quick-release VESA plate and mounts entirely from the top of your desk using either clamp or grommet fittings. No tools are required for VESA attachment.
What desk thicknesses does the clamp and grommet support?
Both the clamp and grommet fittings are compatible with desks between 10 and 50 mm thick.
How much desk space does the LDT86S require?
The arm has a full extension of 611 mm and a pole height of 500 mm. Exact footprint depends on your specific setup, but it's designed for efficient desktop space utilisation.
Does it include cable management?
Yes, the LDT86S features integrated cable management to keep wiring organised and hidden, maintaining a clean, professional workspace appearance.
What is the warranty period?
The Brateck LDT86S includes a 36-month manufacturer's warranty covering defects in materials and workmanship.
