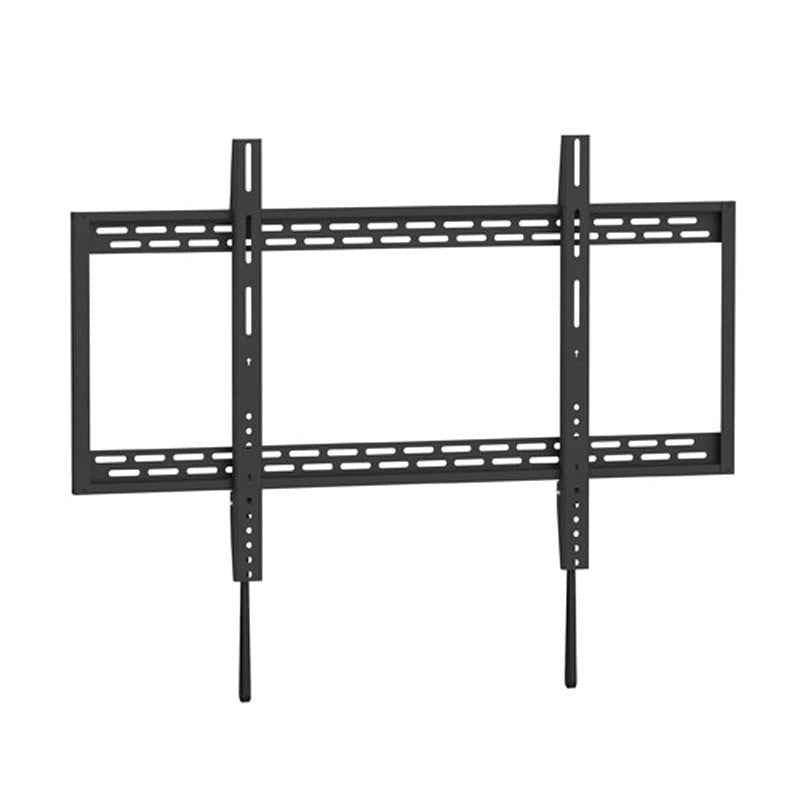

Brateck LP37-69F X-Large Heavy-Duty TV Wall Mount 60–100 inch
Brateck LP37-69F X-Large Heavy-Duty TV Wall Mount 60–100 inch
SKU:MABT-LP37-69F
The Brateck LP37-69F is a heavy-duty fixed wall mount for 60–100 inch curved and flat panel TVs up to 100kg. Featuring an automatically click-in spring lock, open architecture for ventilation, and VESA universal compatibility, it delivers secure installation and easy cable access for large-scale displays.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LP37-69F |
| Availability | In Stock |
Overview
- The Brateck LP37-69F is a professional-grade fixed wall mount engineered for large-format displays between 60 and 100 inches. Designed to handle flat and curved panel TVs weighing up to 100kg, this mount combines robust construction with user-friendly installation features.
Built from cold-rolled steel with a powder-coated black finish, the LP37-69F delivers durability and a clean aesthetic. The automatically click-in spring lock mechanism ensures secure attachment without complex fastening procedures, whilst the open architecture design provides excellent ventilation and straightforward access to rear connections and cable management.
With compatibility across multiple VESA patterns (200×200 through 900×600) and universal mounting options, this bracket accommodates a wide range of modern displays. The strength-tested construction has been validated to withstand four times its rated load capacity, ensuring long-term reliability in demanding commercial environments.
Ideal for businesses deploying large displays in boardrooms, retail spaces, hospitality venues, and control centres, the LP37-69F combines professional performance with practical installation convenience.
Specifications
| Manufacturer | Brateck |
|---|---|
| Model | LP37-69F |
| Product Type | Fixed TV Wall Mount |
| Screen Size Compatibility | 60–100 inches |
| Weight Capacity | 100kg (220lbs) |
| Curved TV Compatible | Yes |
| Material | Cold-rolled steel |
| Wall Plate Thickness | 3mm |
| Bracket Arm Thickness | 2mm |
| Surface Finish | Powder coating |
| Colour | Fine texture black |
| Dimensions | 1009 × 630 × 32mm |
| Profile Depth | 32mm (1.3 inches) |
| VESA Patterns | 200×200, 300×300, 400×200, 400×400, 600×400, 800×400, 800×600, 900×600 |
| Mount Type | VESA universal |
| Panel Type | Detachable |
| Wall Plate Type | Fixed |
| Installation | Double stud (406/450/600mm) or solid wall |
| Strength Tested | 4× minimum load capacity |
| Cable Management | No integrated system |
| Anti-Theft Feature | No |
| Bubble Level | No |
| Certification | UL |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What TV sizes does the Brateck LP37-69F support?
The LP37-69F is designed for flat and curved panel TVs between 60 and 100 inches, with a maximum weight capacity of 100kg (220lbs).
Is this mount compatible with curved TVs?
Yes, the LP37-69F supports both flat and curved panel displays within its 60–100 inch size range.
What VESA patterns does this mount accommodate?
The mount supports multiple VESA patterns: 200×200, 300×300, 400×200, 400×400, 600×400, 800×400, 800×600, and 900×600, providing broad compatibility with modern displays.
How is this mount installed?
The LP37-69F is installed onto double stud walls at 406mm, 450mm, or 600mm spacing, or directly to solid wall surfaces using appropriate fasteners.
What makes the spring lock mechanism secure?
The automatically click-in spring lock design ensures your TV snaps securely into place, and the mount has been strength-tested to withstand four times its stated load capacity for added safety.
Does the mount include cable management features?
The open architecture design allows easy access to rear connections and cable routing, though the mount does not include integrated cable management channels.
What is the warranty period?
The Brateck LP37-69F comes with a 60-month (5-year) warranty.
