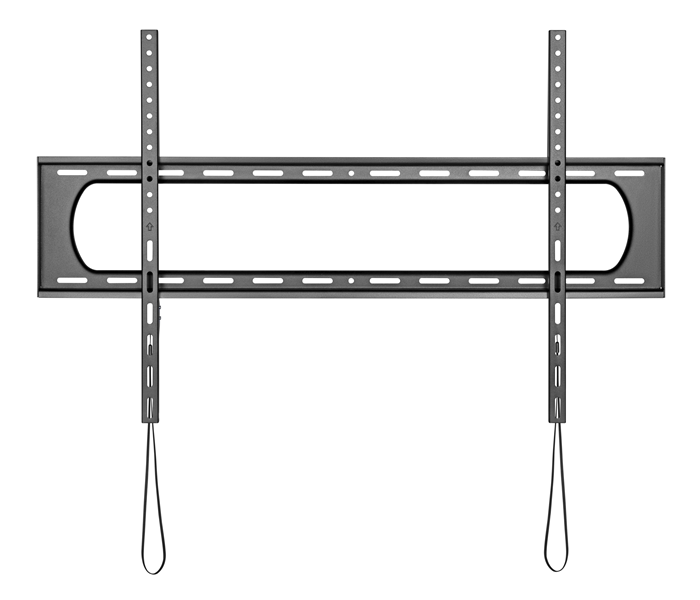

Brateck Heavy-Duty Fixed TV Wall Mount 60–120 inch
Brateck Heavy-Duty Fixed TV Wall Mount 60–120 inch
SKU:MABT-LP73-69F
The Brateck LP73-69F is a heavy-duty fixed TV wall mount designed for large displays up to 120 inches. Featuring robust steel construction, automatic spring locks for quick release, and support for curved TVs up to 120 kg, it delivers reliable mounting for modern home and commercial installations.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LP73-69F |
| Availability | In Stock |
Overview
- The Brateck LP73-69F is a professional-grade fixed TV wall mount engineered for large-format displays up to 120 inches and 120 kg capacity. Its heavy-duty steel construction, reinforced with 2mm cold-rolled bracket and wall plate materials, ensures long-term stability and durability in demanding environments.
This mount supports both flat and curved TVs across an extensive range of VESA patterns (50x50 through 900x600), making it compatible with most modern television models. The automatic spring locks and quick release cords enable straightforward TV installation and removal without tools, reducing installation time and maintenance overhead.
The open architecture design provides excellent ventilation and unobstructed access to cables and connections, simplifying setup and future adjustments. Each mount undergoes four-stage strength testing and holds UL certification, confirming compliance with international safety standards.
Ideal for businesses, hospitality venues, and residential installations requiring a reliable, versatile solution for premium display mounting.
Specifications
| Product Type | Fixed TV Wall Mount |
|---|---|
| Screen Size Range | 60–120 inches |
| Curved TV Compatible | Yes |
| Weight Capacity | 120 kg (264 lbs) |
| VESA Patterns Supported | 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 800x600, 900x600 |
| Maximum Mounting Hole Distance | 974 x 602 mm |
| Material | Steel |
| Bracket Thickness | 2 mm cold-rolled sheet |
| Wall Plate Thickness | 2 mm cold-rolled sheet |
| Profile Depth | 35 mm |
| Surface Finish | Powder coating |
| Colour | Fine texture black |
| Dimensions | 35 x 1005 x 625 mm |
| Panel Type | Detachable |
| Wall Plate Type | Fixed |
| Installation | Solid wall, double stud (406 mm, 450 mm, or 600 mm spacing) |
| Included Accessories | Hook-on bubble level, direction indicator |
| Strength Testing | 4-stage tested |
| Certification | UL certified |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What TV sizes and weights does the Brateck LP73-69F support?
This mount accommodates flat and curved TVs ranging from 60 to 120 inches and supports a maximum weight capacity of 120 kg (264 lbs). Verify your TV's VESA pattern is listed in the specifications before purchase.
Is this mount suitable for curved TVs?
Yes, the Brateck LP73-69F is specifically designed to support curved TVs up to 120 inches and 120 kg, making it ideal for modern curved display installations.
What VESA patterns are compatible?
The mount supports VESA patterns from 50x50 mm through 900x600 mm, including all standard patterns. Check your TV's manual to confirm its VESA pattern compatibility.
How difficult is installation?
Installation requires mounting to solid walls or double studs (406 mm, 450 mm, or 600 mm spacing). The mount includes a bubble level and direction indicator to assist with proper alignment. Professional installation is recommended for larger or heavier displays.
Can I remove the TV without tools?
Yes, the automatic spring locks and quick release cords enable tool-free TV removal and installation, simplifying maintenance and upgrades.
Is the Brateck LP73-69F certified for safety?
Yes, this mount holds UL certification and has undergone four-stage strength testing to ensure compliance with international safety standards and durability requirements.
What warranty does this mount include?
The Brateck LP73-69F includes a 60-month (5-year) manufacturer warranty covering defects in materials and workmanship.
