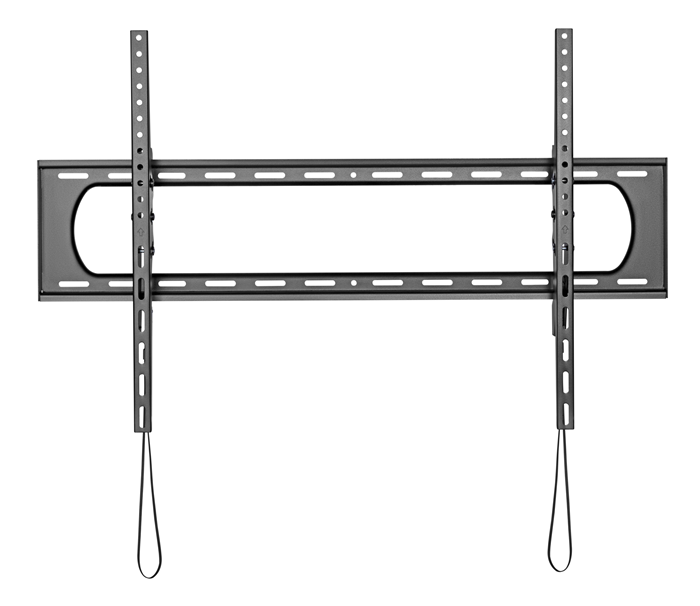

Brateck Heavy-Duty Tilt TV Wall Mount 60–120 Inch
Brateck Heavy-Duty Tilt TV Wall Mount 60–120 Inch
SKU:MABT-LP73-69T
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LP73-69T |
| Availability | In Stock |
Overview
- The Brateck LP73-69T is a professional-grade tilt wall mount engineered for large-format TVs and displays up to 120 inches. Built from 2mm cold-rolled steel with powder-coated finish, it provides exceptional durability and load capacity of 120kg, making it suitable for demanding commercial and institutional environments.
Toolless tilt functionality allows quick adjustment without tools, while universal VESA compatibility supports virtually all modern TV mounting standards. The quick-release locking mechanism ensures safe and convenient TV installation or removal, and the open-frame design maximises airflow around equipment and simplifies cable management—critical for professional installations.
This mount is ideal for organisations deploying large displays in boardrooms, control centres, retail spaces, or educational facilities where reliability and ease of maintenance are essential.
Specifications
| Product Type | Tilt TV Wall Mount |
|---|---|
| Material | Steel (cold-rolled) |
| Metal Thickness | Bracket arm and wall plate: 2mm |
| Surface Finish | Powder coating |
| Colour | Fine texture black |
| Screen Size Compatibility | 60–120 inches |
| Curved TV Support | Yes |
| VESA Compatibility | 50×50, 75×75, 100×100, 100×150, 150×100, 100×200, 200×100, 150×150, 200×200, 200×300, 300×200, 200×400, 400×200, 300×300, 300×400, 400×300, 600×200, 400×400, 600×300, 400×600, 600×400, 700×400, 800×400, 600×600, 800×500, 800×600, 900×600 |
| Maximum Mounting Hole Pattern | 965×602mm |
| Weight Capacity | 120kg (264lbs) |
| Tilt Range | +10° to −10° |
| Profile Depth | 80mm |
| Dimensions | 80×1005×602mm |
| Installation Type | Solid wall, double stud (406mm/450mm/600mm spacing) |
| Wall Plate Type | Fixed, detachable panel |
| Included Accessories | Hook-on bubble level, direction indicator |
| Certification | UL |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What TV sizes does this mount support?
The Brateck LP73-69T accommodates screens from 60–120 inches, with a weight capacity of 120kg. It supports both flat and curved TVs within this range.
Is this mount compatible with my TV's VESA pattern?
Yes. This mount features universal VESA compatibility and supports patterns from 50×50 up to 900×600, covering virtually all modern flat and curved TVs.
Can I adjust the viewing angle after installation?
Yes. The toolless tilt function allows adjustment of ±10° (10 degrees up or down) without requiring tools, making angle optimisation simple.
How is the TV secured to this mount?
The mount features automatic spring locks with quick-release cords, allowing secure attachment during normal use whilst enabling safe, straightforward removal when needed.
What surfaces can this mount be installed on?
The mount is designed for solid walls and double-stud construction with standard spacing of 406mm, 450mm, or 600mm. Installation requires suitable wall structures to support the 120kg load capacity.
Does installation require special tools?
The tilt adjustment is toolless. Installation onto the wall and TV does require standard fastening tools and hardware appropriate to your wall type and structure.
What warranty does this mount include?
The Brateck LP73-69T includes a 60-month (5-year) warranty, providing long-term protection for commercial and institutional installations.
