Brateck Ultra-Slim Heavy-Duty TV Wall Mount 43–90 inch
Brateck Ultra-Slim Heavy-Duty TV Wall Mount 43–90 inch
SKU:MABT-LP77-48F

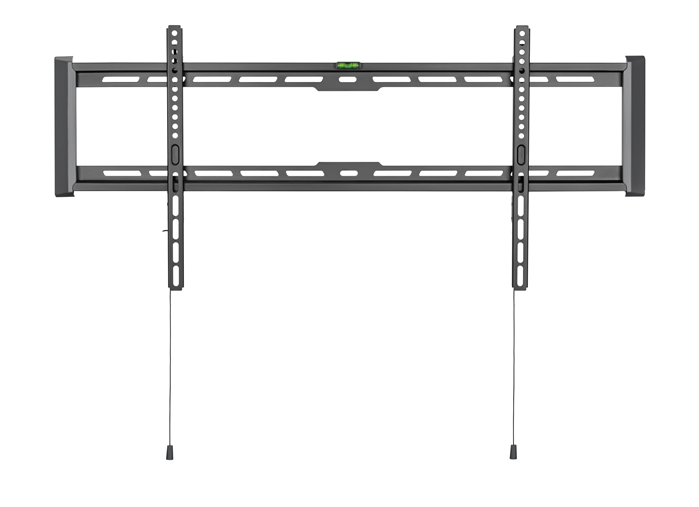

The Brateck LP77-48F is an ultra-slim, heavy-duty TV wall mount designed for large displays from 43 to 90 inches. Featuring automatic spring locks, levelling adjustments, and a 75 kg weight capacity, it delivers secure, elegant mounting for any business or home entertainment setup.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LP77-48F |
| Availability | In Stock |
Overview
- The Brateck LP77-48F is a fixed ultra-slim TV wall mount engineered for heavy-duty performance across large display sizes. With support for screens up to 90 inches and a weight capacity of 75 kg, it accommodates most modern commercial and residential displays. The mount features automatic spring locks with quick-release functionality, making TV installation and removal straightforward without tools.
Designed with aesthetics in mind, the 27 mm ultra-slim profile sits flush against the wall, while decorative covers provide a polished finish. Levelling adjustments and an included bubble level ensure pixel-perfect positioning, critical in professional environments. The mount's compatible with eight VESA patterns, offering flexibility across different display brands and models.
Built from cold-rolled steel with powder-coat finish, the LP77-48F combines durability with a matte black appearance suitable for both corporate and residential spaces. Its tilt range of +4° to –10° provides optimal viewing angles, whilst the detachable panel design simplifies installation on various wall types, including solid walls and double-stud framing.
Specifications
| Product Type | Fixed TV Wall Mount |
|---|---|
| Brand | Brateck |
| Model | LP77-48F |
| Screen Size Compatibility | 43–90 inches |
| Weight Capacity | 75 kg (165 lbs) |
| VESA Patterns Supported | 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400, 800×400 |
| Maximum Mounting Hole | 868×405 mm |
| Curved TV Compatible | Yes |
| Material | Steel and plastic with powder-coat finish |
| Colour | Matte black |
| Bracket Arm Thickness | 1.5 mm cold-rolled sheet |
| Wall Plate Thickness | 1.5 mm cold-rolled sheet |
| Profile Depth | 27 mm |
| Tilt Range | +4° to –10° |
| Screen Level | 8 mm |
| Overall Dimensions | 27×970×430 mm |
| Panel Type | Detachable |
| Wall Plate Type | Fixed |
| Installation Types | Solid wall, double stud (406 mm / 450 mm / 600 mm spacing) |
| Direction Indicator | Yes |
| Included Accessories | Bubble level, magnetic strap end |
| Automatic Spring Locks | Yes, with quick-release cords |
| Strength Tested | 4 times approved |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What screen sizes does the Brateck LP77-48F support?
The LP77-48F fits flat and curved TVs between 43 and 90 inches with a maximum weight capacity of 75 kg. Ensure your display matches one of the eight supported VESA patterns for compatibility.
Is this mount suitable for curved televisions?
Yes, the LP77-48F is designed to accommodate curved TVs as well as flat-screen displays, making it versatile across most modern display types.
How much does the mount stick out from the wall?
The ultra-slim profile is just 27 mm, ensuring a clean, minimal appearance that sits flush against the wall for a professional, integrated look.
What VESA patterns does this mount support?
The LP77-48F is compatible with eight VESA patterns: 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400, and 800×400 mm.
Is installation difficult, and what tools are required?
Installation is straightforward on solid walls or double-stud framing. The detachable panel design simplifies mounting. An included bubble level helps with alignment. Standard wall installation tools and appropriate wall anchors for your wall type are recommended.
Can the TV be easily removed after installation?
Yes, the automatic spring locks with quick-release cords allow you to remove the TV quickly and safely without tools, making maintenance and repositioning simple.
What is the warranty coverage?
The Brateck LP77-48F includes a 60-month (5-year) warranty, providing long-term protection for your investment.
