Brateck Ultra-Slim Heavy-Duty TV Wall Mount 43-90 inch
Brateck Ultra-Slim Heavy-Duty TV Wall Mount 43-90 inch
SKU:MABT-LP77-48T

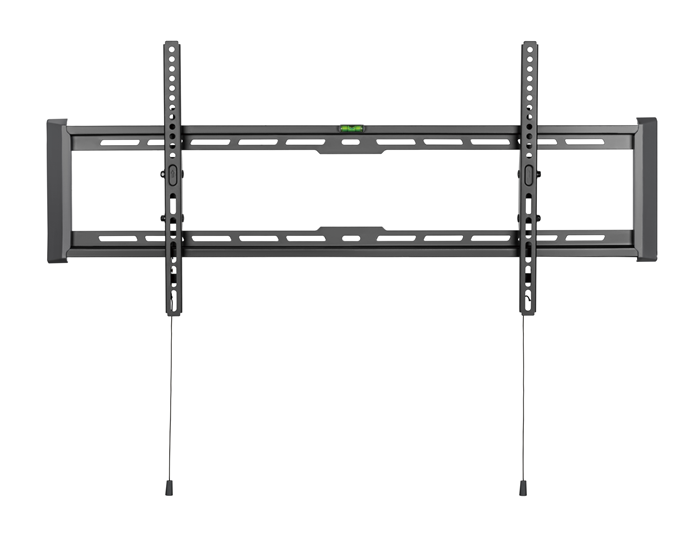

The Brateck LP77-48T is an ultra-slim, heavy-duty TV wall mount designed for screens 43 to 90 inches. Featuring free-tilting adjustment, automatic spring locks with quick release, and support for multiple VESA patterns, it delivers secure installation and flexible viewing angles for home and commercial environments.
Couldn't load pickup availability
- See our return policy
- 60 months (5 years) Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LP77-48T |
| Availability | In Stock |
Overview
- The Brateck LP77-48T is a professional-grade TV wall mount built for large-format displays from 43 to 90 inches. Its ultra-slim 47mm profile keeps your installation looking clean and minimal, while the heavy-duty steel construction provides reliable support for TVs weighing up to 75kg. The free-tilting mechanism allows forward and backward adjustment from +4° to -10°, giving you complete control over viewing angles and reducing unwanted glare.
This mount supports 8 different VESA mounting hole patterns (200x200 through 800x400), making it compatible with the vast majority of commercial and consumer displays on the market. The automatic spring locks with quick-release cords make TV installation and removal straightforward, while the included bubble level and levelling adjustments ensure pixel-perfect alignment after hanging.
Built for reliability, the LP77-48T is tested to 4 times the rated load and comes with a 5-year manufacturer warranty. Whether you're outfitting a home theatre, boardroom, retail space, or digital signage installation, this mount delivers professional results with minimal visual footprint.
Specifications
| Product Category | Tilt TV Wall Mount |
|---|---|
| Fit Screen Size | 43-90 inches |
| Weight Capacity | 75kg (165lbs) |
| VESA Patterns Supported | 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, 800x400 |
| Maximum Mounting Hole | 868x405mm |
| Curved TV Compatible | Yes |
| Tilt Range | +4° to -10° |
| Material | Steel and plastic |
| Bracket Arm Thickness | 1.5mm cold-rolled steel |
| Wall Plate Thickness | 1.5mm cold-rolled steel |
| Surface Finish | Powder coating |
| Colour | Matte black |
| Profile Depth | 47mm |
| Screen Level Adjustment | 8mm |
| Overall Dimensions | 470 x 970 x 430mm |
| Panel Type | Detachable |
| Wall Plate Type | Fixed |
| Installation Type | Solid wall, double stud (406mm/450mm/600mm spacing) |
| Direction Indicator | Yes |
| Included Accessories | Hook-on bubble level |
| Load Test Rating | 4 times approved |
| Warranty | 60 months (5 years) |
Key Features
Ideal For
FAQs
What screen sizes does this mount support?
The Brateck LP77-48T supports screens from 43 to 90 inches with a maximum weight capacity of 75kg. It is compatible with both flat-panel and curved TVs.
Which VESA patterns are compatible?
This mount supports 8 VESA mounting patterns: 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, and 800x400mm. Check your TV's VESA specification on the back or in your manual.
Can I adjust the viewing angle after installation?
Yes. The free-tilting design allows adjustment from +4° to -10°, giving you forward and backward tilt control. Levelling adjustments also ensure the screen sits perfectly level after hanging.
How easy is it to remove the TV?
Very easy. Automatic spring locks and quick-release cords allow you to safely remove and reinstall your TV without tools or complicated procedures.
What walls does this mount work on?
This mount is suitable for solid walls and double stud walls with 406mm, 450mm, or 600mm spacing. Always use appropriate wall anchors and fasteners for your wall type.
How thick is the mount when installed?
The ultra-slim profile extends just 47mm from the wall, providing a clean, minimalist appearance while maintaining heavy-duty structural support.
Is a bubble level included?
Yes. A hook-on bubble level is included in the package to help you ensure perfect alignment during installation.
What is the warranty?
The Brateck LP77-48T comes with a 5-year manufacturer warranty covering defects in materials and workmanship.
