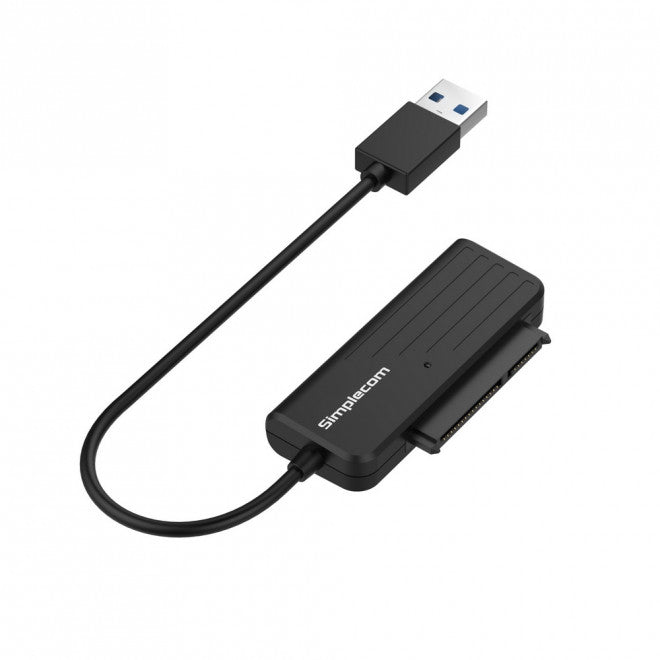

Simplecom SA205 USB 3.0 to SATA Adapter for 2.5" SSD/HDD
Simplecom SA205 USB 3.0 to SATA Adapter for 2.5" SSD/HDD
SKU:HXSI-SA205
The Simplecom SA205 is a compact USB 3.0 to SATA adapter designed for quick data transfers from 2.5" SSDs and HDDs. Featuring plug-and-play connectivity, no external power requirement, and hot-swappable operation, it delivers fast, portable drive access for data migration and backup tasks.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | USB, Bluetooth & IEEE |
| SKU | HXSI-SA205 |
| Availability | In Stock |
Overview
- The Simplecom SA205 is a lightweight, portable USB 3.0 to SATA adapter that eliminates the need for bulky external enclosures when accessing 2.5" SATA drives. With no external power supply required and true plug-and-play operation, it's ideal for IT professionals, system administrators, and business users who need quick, reliable access to SATA SSDs and HDDs for data migration, cloning, and backup tasks.
Designed for portability and ease of use, the SA205 features a compact 15cm cable design that fits easily into tool kits and laptop bags. The inclusion of UASP (USB Attached SCSI Protocol) support delivers up to 70% faster performance compared to standard USB 3.0 connections, making it suitable for high-volume data transfers and time-sensitive operations.
The adapter's hot-swappable design and universal driver-free operation work seamlessly with Windows and Mac systems, supporting drives with SATA I, II, and III interfaces. Whether you're managing multiple drives across different systems or simply need temporary access to a SATA drive, the SA205 provides a cost-effective, reliable solution.
Specifications
| Interface | USB 3.0 (USB 3.1 Gen1) and SATA 15+7 pin |
|---|---|
| Transfer Speed | Up to 5Gbps (UASP mode up to 70% faster) |
| Supported Drive Sizes | 2.5" SATA HDDs and SSDs |
| SATA Support | SATA I, SATA II, SATA III |
| USB Cable Length | 15cm |
| Material | ABS |
| Weight | 22g |
| Dimensions | 64 x 30 x 13mm |
| Power Source | USB-powered (no external adapter required) |
| Hot-Swap Capable | Yes |
| Driver Installation | Not required |
| USB Backwards Compatibility | USB 2.0, USB 1.1 |
| LED Indicators | Power and activity status |
| Supported Operating Systems | Windows XP and above (32/64-bit), Mac OS 10.4 and above |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Do I need external power to use the SA205?
No. The SA205 draws all power directly from the USB port, so no external power adapter or additional cables are required.
Can I use this adapter with 3.5" hard drives?
No. The SA205 is designed exclusively for 2.5" SATA drives, including SSDs and HDDs.
Is UASP support automatic, or do I need to configure it?
UASP support is automatic and requires no configuration. The adapter will use UASP mode if both the host system and drive support it, delivering up to 70% faster performance.
Will the SA205 work with my Mac?
Yes. The adapter is compatible with Mac OS 10.4 and above. It requires no driver installation on either Windows or Mac systems.
Can I use this for cloning SATA drives?
Yes. The SA205 is ideal for drive cloning, data migration, and backup tasks. Simply connect your source drive via the adapter and use your preferred cloning or backup software.
Is the adapter backwards compatible with older USB standards?
Yes. The SA205 is fully backwards compatible with USB 2.0 and USB 1.1 systems, though transfer speeds will be limited by the older USB standard.
What is the maximum transfer speed?
The adapter supports USB 3.0 speeds up to 5Gbps. With UASP mode enabled, performance can be up to 70% faster than standard USB 3.0 connections.
