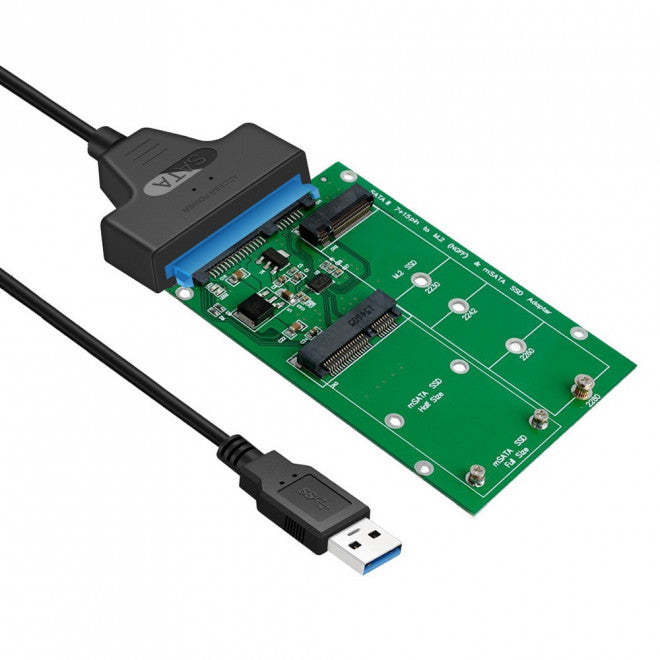

Simplecom SA221 USB 3.0 mSATA and M.2 SSD Adapter
Simplecom SA221 USB 3.0 mSATA and M.2 SSD Adapter
SKU:HXSI-SA221
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Hard Drives - External |
| SKU | HXSI-SA221 |
| Availability | In Stock |
Overview
- The Simplecom SA221 is a practical 2-in-1 combo adapter designed to bridge the gap between legacy mSATA drives and modern M.2 SSDs. By offering both USB 3.0 and SATA connectivity, it provides flexibility for connecting to desktop computers, laptops, or external enclosures without requiring additional hardware or software.
This adapter is particularly valuable for IT professionals and business users who need to access or migrate data from older mSATA or various M.2 form factor drives. The compact design, combined with built-in protection features such as thermal shutdown and short-circuit protection, ensures safe operation during extended data transfer sessions.
With support for M.2 drives ranging from 2230 to 2280 form factors and both half-size and full-size mSATA SSDs, the SA221 covers a wide range of legacy and modern storage equipment. It is an essential tool for system builders, IT teams, and organisations managing diverse storage infrastructure.
Specifications
| adapter_type | 2-in-1 mSATA and M.2 SSD Combo Adapter |
|---|---|
| interface | USB 3.0 and SATA |
| m2_interface | B Key (B Key or B+M Key compatible) |
| m2_form_factors_supported | 2230, 2242, 2260, 2280 |
| msata_support | Half-size (26.8mm L × 30mm W) and full-size (50.95mm L × 30mm W) |
| sata_revision | 3.2 |
| pci_express_spec | Mini Card 1.2, M.2 Spec 0.7 Version 1.0 |
| cable | Detachable USB 3.0 |
| power_protection | Thermal shutdown, short-circuit protection, in-rush current suppression |
| power_management | PWM synchronous buck converter |
| led_indicators | Power and activity status |
| warranty | 12 months |
| package_contents | 1× mSATA + M.2 SSD to SATA adapter, 1× USB 3.0 cable |
Key Features
Ideal For
FAQs
Can I use both an mSATA and M.2 SSD at the same time?
No. If both drives are inserted simultaneously, the M.2 SSD takes priority and the mSATA drive is disabled. You must remove the M.2 drive to access the mSATA drive.
Which M.2 form factors are supported?
The SA221 supports B Key M.2 drives in 2230, 2242, 2260, and 2280 form factors. M Key, NVMe, and other variations are not supported.
Does the adapter work with both USB 3.0 and SATA connections?
Yes. The SA221 features dual USB 3.0 and SATA connectivity. You can connect via either interface depending on your system requirements.
What protection features does the adapter include?
The SA221 includes thermal shutdown protection, short-circuit protection, in-rush current suppression, and a PWM synchronous buck converter for safe operation.
Is the USB 3.0 cable detachable?
Yes. The USB 3.0 cable is detachable, allowing you to use the adapter with SATA connectivity alone if preferred.
What types of mSATA SSDs are compatible?
The adapter supports both half-size (26.8mm × 30mm) and full-size (50.95mm × 30mm) mSATA SSDs.
Can I use this adapter for data migration?
Yes. The SA221 is an ideal solution for backing up and migrating data from mSATA and M.2 SSDs to another system or external storage.
