Simplecom DA323 USB-C to DisplayPort Cable DP1.4 2M
Simplecom DA323 USB-C to DisplayPort Cable DP1.4 2M
SKU:CBSI-DA323
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Cables |
| SKU | CBSI-DA323 |
| Availability | In Stock |
Overview

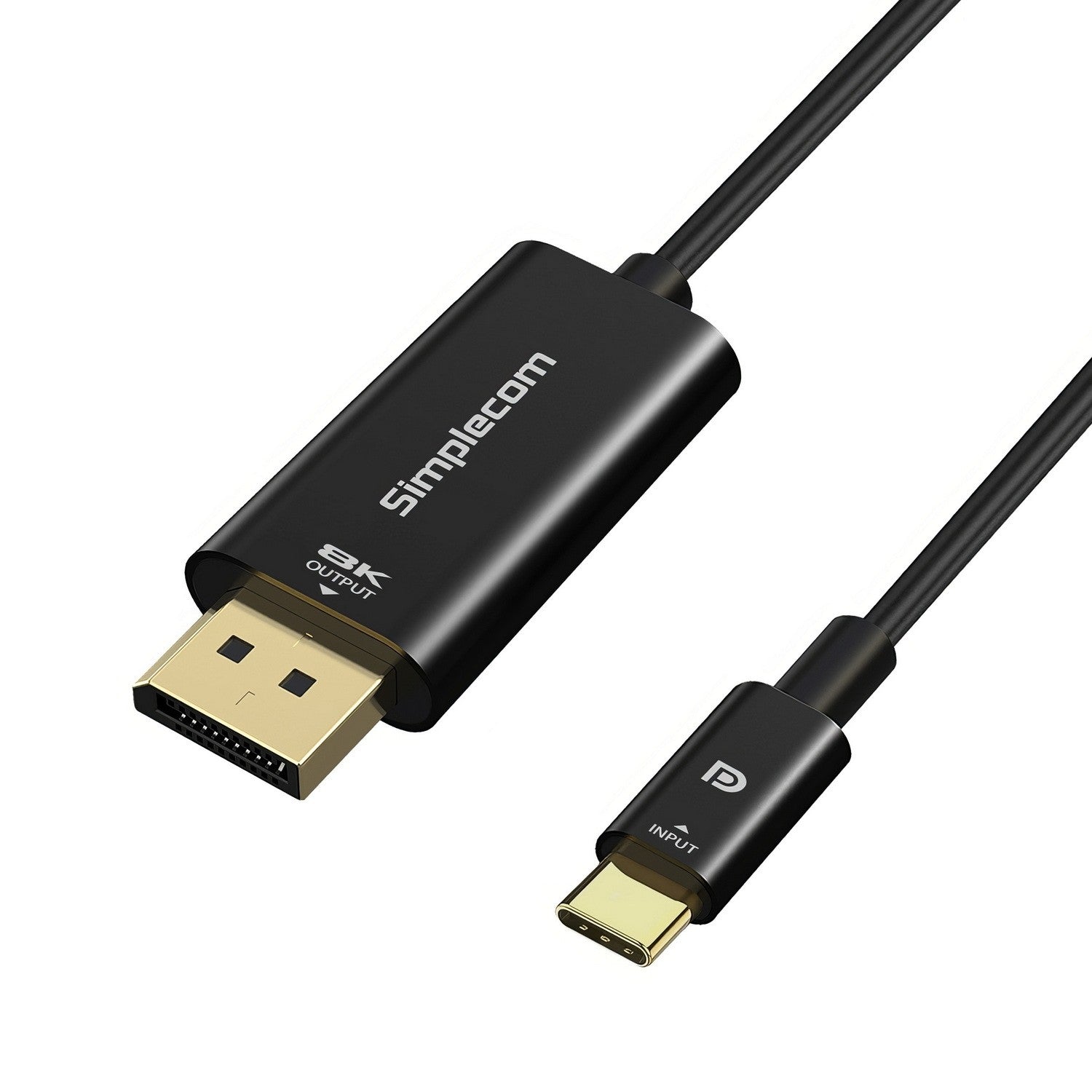

- The Simplecom DA323 USB-C to DisplayPort cable provides a direct connection between USB-C devices and DisplayPort displays, delivering exceptional video and audio quality for professional and business environments. Built with premium aluminium alloy connectors and gold-plated contacts, it ensures superior signal transmission and durability. Compliant with the DP1.4 standard, it supports resolutions up to 8K at 60Hz, making it ideal for high-definition content creation, presentations, and multitasking scenarios.
This cable is plug-and-play, requiring no drivers or additional software installation. It supports both mirror and extended display modes, allowing professionals to expand their workspace or deliver presentations seamlessly. The 2-metre length provides flexibility for typical workspace configurations. Compatible with laptops, tablets, and smartphones that support DisplayPort Alternate Mode, it is a reliable solution for connecting modern devices to high-resolution displays.
Important consideration: Verify that your device's USB-C port supports DisplayPort Alternate Mode, as some USB-C ports are limited to charging or data transfer only. For 8K compatibility, both the device and display must be 8K-enabled.
Specifications
| Brand | Simplecom |
|---|---|
| Model | DA323 |
| Product Type | USB-C to DisplayPort Cable |
| Input Connector | USB-C Male |
| Output Connector | DisplayPort |
| DisplayPort Version | 1.4 |
| Cable Length | 2.0 metres |
| Bandwidth | Up to 32 Gbps |
| Maximum Resolution | 8K@60Hz (7680x4320) |
| Supported Resolutions | 8K@60Hz, 4K@144Hz, 2K@165Hz, 1080p@240Hz |
| Connector Shell | Aluminium alloy with gold-plated contacts |
| Audio Support | Multi-channel digital audio |
| Display Modes | Mirror and extended |
| Locking Mechanism | No |
| Driver Required | No |
| Warranty | 12 months |
| Compatibility | Windows 10+, macOS 10.12+, Chrome OS, Android devices with USB-C DisplayPort Alternate Mode support, Thunderbolt 3 and 4 ports |
Key Features
Ideal For
FAQs
What devices are compatible with the Simplecom DA323?
The cable is compatible with any device featuring a USB-C port that supports DisplayPort Alternate Mode (DP Alt Mode), including laptops, tablets, and smartphones running Windows 10 or above, macOS 10.12 or above, Chrome OS, or Android. Thunderbolt 3 and 4 ports are also supported.
Will this cable work with my USB-C device?
Not all USB-C ports support video output. Please verify that your device's USB-C port supports DisplayPort Alternate Mode. Some USB-C ports are limited to charging or data transfer only. Check your device specifications or contact the manufacturer to confirm DP Alt Mode support.
What is the maximum resolution this cable supports?
The DA323 supports resolutions up to 8K@60Hz (7680x4320). It also supports 4K@144Hz, 2K@165Hz, and 1080p@240Hz depending on your device and display capabilities.
Can this cable carry audio as well as video?
Yes, the cable supports multi-channel digital audio in addition to video, allowing you to transmit both audio and video through a single connection.
Is this cable unidirectional?
Yes, the DA323 is unidirectional and converts only from USB-C to DisplayPort. It cannot be used in reverse to connect a DisplayPort device to a USB-C display.
What do I need for 8K video output?
For 8K compatibility, your device must have an 8K-enabled USB-C port (such as those with Intel Iris Xe Graphics) and your display must also be 8K-capable. Standard devices may support lower resolutions such as 4K or 2K.
Do I need to install drivers or software?
No, the cable is plug-and-play and requires no drivers or additional software installation. Simply connect it to a compatible device and display.
What is the warranty period?
The Simplecom DA323 includes a 12-month manufacturer's warranty covering defects in materials and workmanship.
