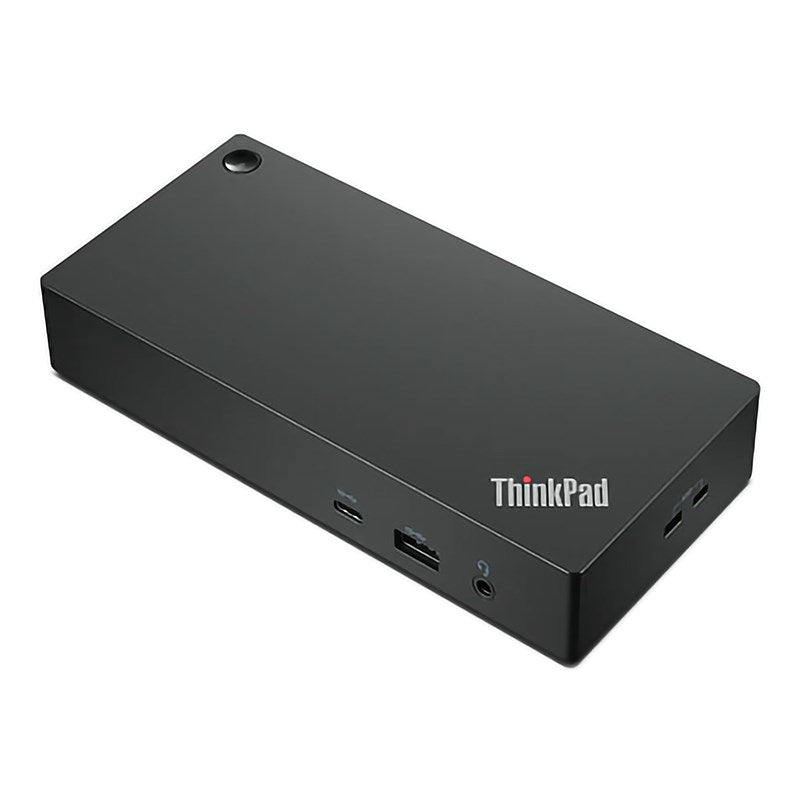

Lenovo ThinkPad Universal USB-C Docking Station 90W
Lenovo ThinkPad Universal USB-C Docking Station 90W
SKU:NAL-40AY0090AU
Couldn't load pickup availability
- See our return policy
- CRU Manufacturer Warranty
Product Information
| Brand | Lenovo |
|---|---|
| Category | Notebook Accessories |
| SKU | NAL-40AY0090AU |
| Availability | In Stock |
Overview
- The Lenovo ThinkPad Universal USB-C Docking Station delivers a complete single-cable connectivity solution for modern workplaces. With 90W power delivery, it rapidly charges your ThinkPad whilst supporting up to three external displays, including dual 4K monitors, eliminating the need for multiple adapters and cables.
Designed for IT managers and enterprise users, this dock includes critical management features such as automatic firmware updates, PXE boot support, and remote device monitoring. Its physical security lock slot provides peace of mind in shared office environments and hot-desking scenarios.
The comprehensive port array—3x USB 3.1, 2x USB 2.0, Gigabit Ethernet, and combo audio jack—ensures seamless integration with printers, external storage, displays, and other workplace peripherals. Whether your team works in the office, rotates through shared desks, or operates remotely, this dock simplifies IT deployment and user experience.
Specifications
| Brand | Lenovo |
|---|---|
| Model | ThinkPad Universal USB-C Docking Station |
| Product Type | USB-C Docking Station |
| Colour | Black |
| Power Input | 90W |
| Power Output | 65W with 90W adapter; 100W with 135W adapter |
| Power Delivery | Yes |
| Power Connector | DC-IN (Slim-tip) |
| Power Button | Yes |
| USB Ports | 3x USB 3.1, 2x USB 2.0, 1x USB-C |
| Video Ports | 2x DisplayPort, 1x HDMI |
| Maximum Resolution | 2x 3840x2160 @ 60Hz, 1x 3840x2160 @ 30Hz |
| Maximum External Monitors | 3 |
| Ethernet | 1x Gigabit Ethernet |
| Audio | 1x Combo Audio Jack |
| Security | 1x Security lock slot |
| Driver Required | Yes |
| Physical Dimensions (L x D x H) | 171 x 80 x 30.75 mm |
| Product Weight | 340g |
| Packed Weight | 955g |
| Packed Dimensions (L x D x H) | 210 x 158 x 75 mm |
| Warranty | 3 years |
| Warranty Type | CRU |
| Certifications | FCC, ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV, Serbia Kvalitet, Israel SII, Ukraine DoC, NOM |
Key Features
Ideal For
FAQs
What power output does the Lenovo ThinkPad Universal Docking Station provide?
The dock delivers 65W with a 90W power adapter and 100W with a 135W power adapter. It supports full power delivery over a single USB-C connection to charge compatible ThinkPad notebooks rapidly.
How many external monitors can I connect to this docking station?
You can connect up to three external monitors. The dock features 2x DisplayPort and 1x HDMI port, supporting dual 4K displays at 3840x2160 @ 60Hz plus an additional 4K display at 30Hz.
Is this docking station suitable for remote workers and IT management?
Yes. The dock supports automatic firmware updates, PXE boot, Wake-on-LAN (WOL), and MAC Address Pass Through. IT managers can remotely monitor and manage the dock and attached devices with minimal workflow interruption.
Which ThinkPad models are compatible with this docking station?
This is a universal USB-C docking station compatible with ThinkPad models featuring USB-C connectivity, including X1 Carbon, X1 Yoga, and Tablet 10, as well as other USB-C equipped notebooks.
What connectivity options are available on this dock?
The dock provides 3x USB 3.1, 2x USB 2.0, 1x USB-C, 2x DisplayPort, 1x HDMI, 1x Gigabit Ethernet, and 1x Combo Audio Jack, delivering comprehensive peripheral and network connectivity.
Does the docking station include a security lock slot?
Yes, it includes one physical security lock slot to secure the dock in shared or hot-desking environments, preventing unauthorised removal.
What warranty does this docking station come with?
The Lenovo ThinkPad Universal Docking Station includes a 3-year CRU (Customer Replaceable Unit) warranty.
