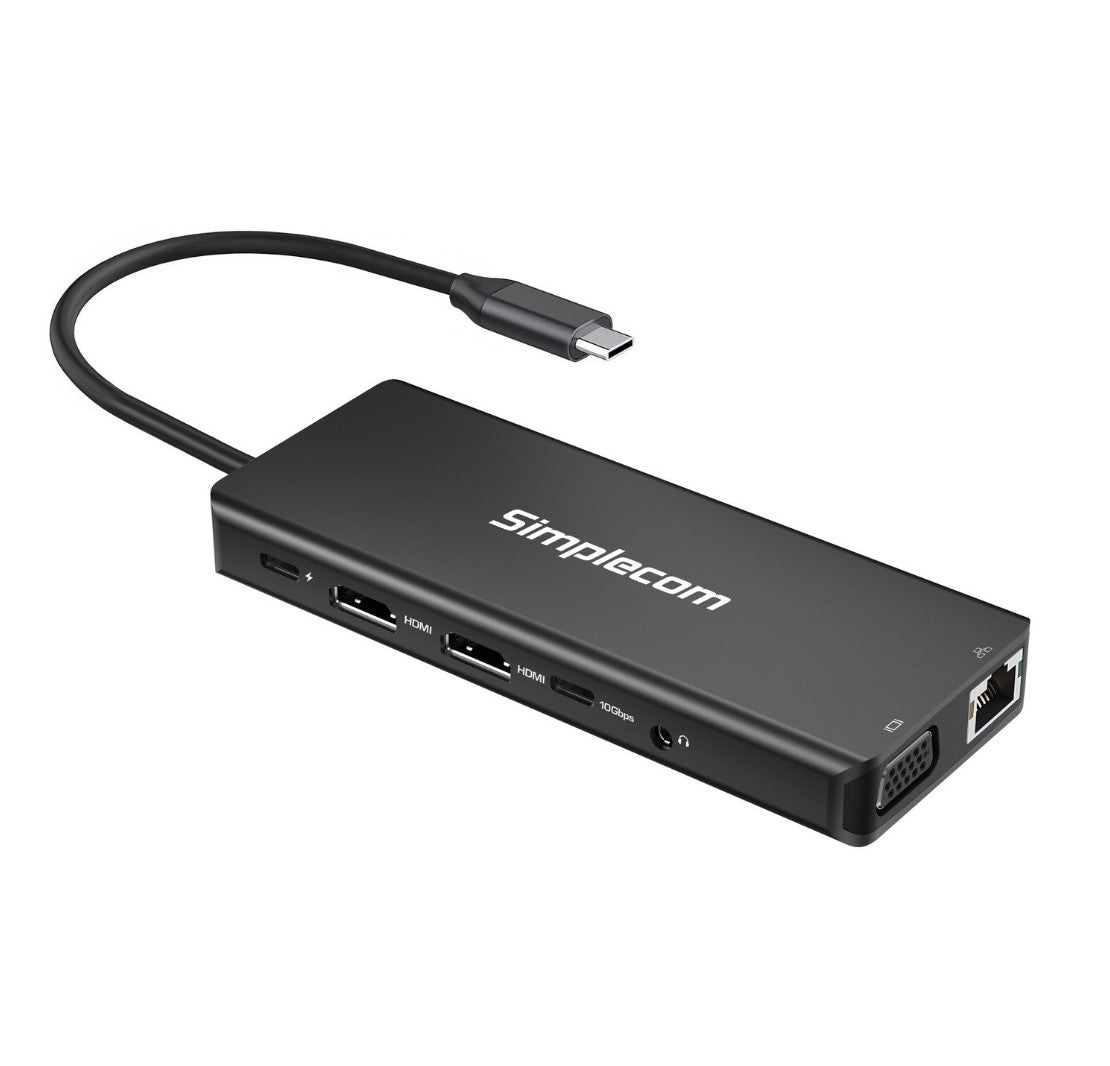

Simplecom CHN613 USB-C 13-in-1 Multiport Docking Station
Simplecom CHN613 USB-C 13-in-1 Multiport Docking Station
SKU:HXSI-CHN613
The Simplecom CHN613 is a 13-in-1 USB-C docking station designed for laptop connectivity and expanded productivity. Featuring dual HDMI plus VGA for triple displays, USB 3.2 Gen 2 (10Gbps) connectivity, and 100W USB-C power delivery, it delivers comprehensive desktop expansion for mobile professionals.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Notebook Accessories |
| SKU | HXSI-CHN613 |
| Availability | In Stock |
Overview
- The Simplecom CHN613 is a versatile 13-in-1 USB-C docking station that transforms a single USB-C port into a fully-featured desktop workspace. It supports triple displays (dual HDMI at 1080p@60Hz plus VGA), gigabit networking, rapid data transfer, and simultaneous laptop charging via 100W USB-C power delivery.
Designed for mobile professionals and hybrid workers, the CHN613 delivers the connectivity and speed needed for demanding workloads. Fast USB 3.2 Gen 2 ports enable quick file transfers, whilst the integrated card reader supports both SD and microSD formats for photographers and content creators. The aluminium alloy construction is durable and lightweight, making it ideal for regular travel between office, home, and client sites.
With no driver software required and straightforward plug-and-play setup, the CHN613 integrates seamlessly into existing corporate environments. Its compact 15cm cable provides flexibility in desk arrangement, and the audio jack supports headphone and speaker connections for conferencing and media consumption.
Specifications
| USB Ports | 4x USB-A Female (2x 5Gbps, 2x 10Gbps), 1x USB-C Female (10Gbps) |
|---|---|
| Video Outputs | 2x HDMI, 1x VGA |
| HDMI Resolution | Single display up to 4K@30Hz; dual displays up to 1920x1080@60Hz each |
| VGA Resolution | Up to 1920x1080@60Hz |
| Multi-Stream Transport (MST) | Yes (Windows only) |
| Ethernet | Gigabit RJ45 (10/100/1000 Mbps) |
| Card Reader | SD and microSD (SuperSpeed 5Gbps) |
| USB-C Power Delivery | 100W (charging only) |
| Audio | 3.5mm jack (output only) |
| Operating Temperature | 0–45°C |
| Housing Material | Aluminium alloy |
| Dimensions | 13.5 x 5.5 x 1.6 cm |
| Cable Length | 15 cm |
| Setup | Plug-and-play, no driver required |
| Warranty | 12 months |
| System Requirements | USB-C port with DisplayPort Alternate Mode; Windows 8+ for MST and extended displays; Thunderbolt, USB 3.2 Gen2, or USB4 port for 10Gbps speeds |
Key Features
Ideal For
FAQs
Does the CHN613 support multiple monitors?
Yes. The CHN613 supports triple displays via dual HDMI and VGA. A single HDMI output supports up to 4K@30Hz, whilst dual HDMI outputs each support 1920x1080@60Hz. VGA supports up to 1080p@60Hz. Multi-Stream Transport (MST) is supported on Windows systems only for extended mode displays.
Can I charge my laptop whilst using the docking station?
Yes. The CHN613 includes a USB-C power delivery port that charges laptops with up to 100W of power, allowing simultaneous charging and operation of all other connected devices.
What are the data transfer speeds on the USB ports?
The CHN613 features USB 3.2 Gen 2 support on two USB-A ports and the USB-C port, offering up to 10Gbps transfer rates. The other two USB-A ports support 5Gbps. Data speed depends on your device's USB-C port capability (Thunderbolt, USB 3.2 Gen2, or USB4 recommended for 10Gbps speeds).
Is a driver or software installation required?
No. The CHN613 is plug-and-play. Simply connect it to your laptop's USB-C port and it will work immediately without requiring any driver software installation.
Is the CHN613 compatible with macOS?
Yes, the CHN613 works with macOS devices equipped with a USB-C port supporting DisplayPort Alternate Mode. However, macOS does not support Multi-Stream Transport (MST), so only one extended display mode is available on Mac systems.
What is the cable length and is it removable?
The integrated USB-C cable is 15cm long and is not removable. This fixed design helps maintain a compact form factor whilst providing sufficient reach for flexible desk setup.
Can the card reader handle both SD and microSD cards?
Yes. The CHN613 has a 2-slot card reader supporting both SD and microSD cards, each with SuperSpeed 5Gbps data transfer rates. Both slots can be used simultaneously.
What laptops and devices are compatible with the CHN613?
The CHN613 is compatible with any laptop or device featuring a USB-C port with DisplayPort Alternate Mode support, including Windows 8+, macOS, and Linux systems. For full 10Gbps data speeds and multiple extended displays, a Thunderbolt, USB 3.2 Gen2, or USB4 port is recommended.
