Simplecom CHT595 9-in-1 USB-C Docking Station with NVMe
Simplecom CHT595 9-in-1 USB-C Docking Station with NVMe
SKU:HXSI-CHT595

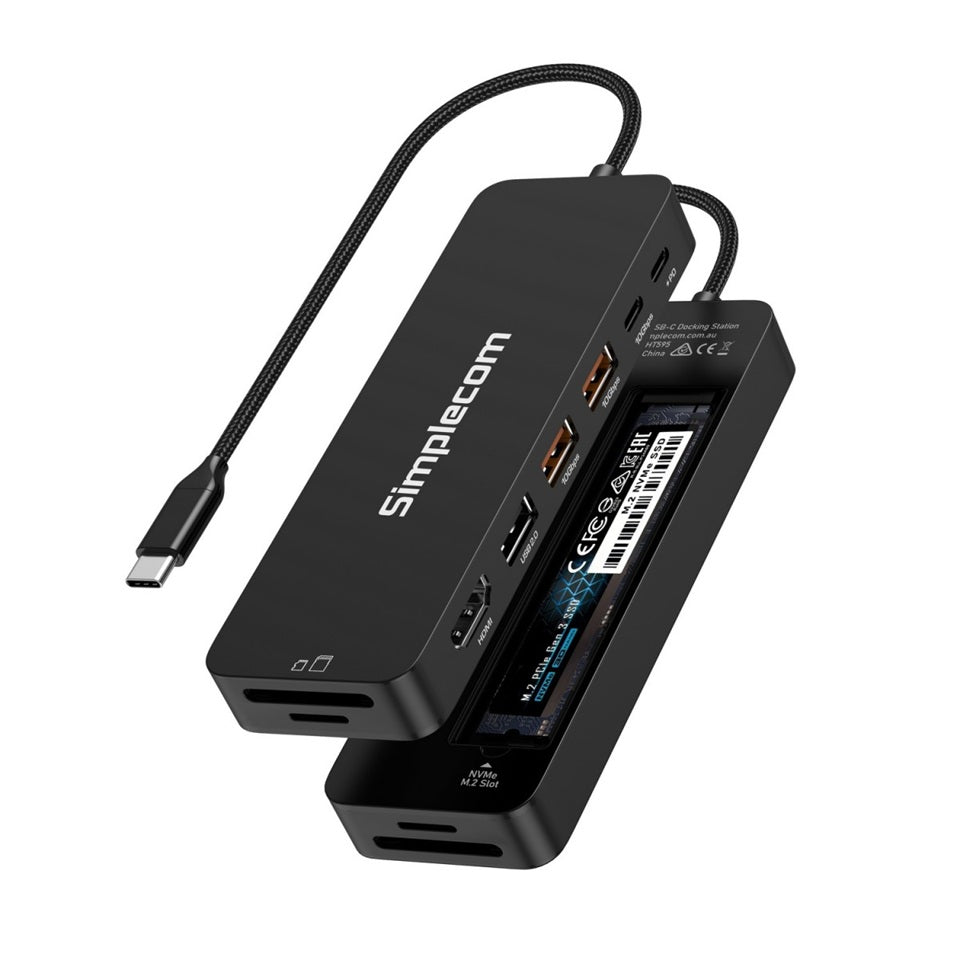

The Simplecom CHT595 is a 9-in-1 USB-C docking station designed for laptop users needing expanded connectivity. Featuring 10Gbps USB-A and USB-C ports, 4K HDMI output, integrated NVMe M.2 storage, SD/microSD card reader, and 100W power delivery, it delivers comprehensive port expansion for professionals and mobile workers.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Notebook Accessories |
| SKU | HXSI-CHT595 |
| Availability | In Stock |
Overview
- The Simplecom CHT595 transforms a single USB-C port into a fully featured docking hub, eliminating the need for multiple adapters and cables. With two 10Gbps USB-A ports, a 10Gbps USB-C port, HDMI 2.0 video output, and integrated NVMe M.2 storage capability, it provides comprehensive connectivity for modern laptops in a compact aluminium chassis.
The integrated NVMe M.2 slot allows you to attach high-speed SSD storage directly to your docking station, turning it into both a connectivity hub and portable storage device. The 100W USB-C Power Delivery port supports efficient laptop charging while simultaneously using other connected peripherals, making it ideal for stationary and mobile workflows.
Designed for Windows 10 or later and macOS 10.12 or later systems, the CHT595 requires no driver installation and works immediately when connected to compatible USB-C ports with DisplayPort Alternate Mode support. The built-in 15cm cable and lightweight 80g design make it travel-friendly, while the premium aluminium construction ensures durability and heat dissipation.
Specifications
| Host Interface | USB-C |
|---|---|
| USB Ports | 2x USB-A (10Gbps), 1x USB-C (10Gbps) |
| Video Output | HDMI 2.0, up to 4K@60Hz (3840 x 2160p) |
| Video Display Modes | Mirror and Extended |
| Card Reader | SD and microSD (USB 2.0 Hi-Speed, 480Mbps) |
| M.2 Slot Protocol | NVMe only (M Key) |
| M.2 Compatible Sizes | 2242, 2260, 2280 |
| M.2 Data Transfer Rate | Up to 10Gbps |
| Power Delivery | USB-C PD, up to 100W (charging only) |
| Housing Material | Aluminium alloy |
| Operating Temperature | 0 – 55°C |
| Dimensions | 13 x 4.2 x 1.5 cm |
| Cable Length | 15 cm (integrated) |
| Weight | 80g |
| Warranty | 12 months |
| Supported Operating Systems | Windows 10 or later; macOS 10.12 or later |
| System Requirements | USB-C port with DP Alt Mode, Thunderbolt, or USB4; Laptop GPU with DP 1.4 (4K@60Hz) or DP 1.2 (4K@30Hz) |
Key Features
Ideal For
FAQs
Does the Simplecom CHT595 support video output on all USB-C ports?
No. Video output is supported only on the primary USB-C host port and requires DisplayPort Alternate Mode (DP Alt Mode) support. The USB-C PD port is for charging only and does not support data or video transfer.
What M.2 SSDs are compatible with the integrated slot?
Only NVMe M.2 SSDs with M Key are compatible. SATA M.2 SSDs are not supported. Compatible sizes are 2242, 2260, and 2280.
Can I charge my laptop while using other ports simultaneously?
Yes. The 100W USB-C Power Delivery port supports charging while all other connected devices remain operational.
What laptop models require for 4K@60Hz video output?
Laptops with Intel 11th Gen Core Mobile Processors or newer (DP 1.4 support) are required for 4K@60Hz. Older processors with DP 1.2 support 4K@30Hz maximum.
Is driver installation required?
No. The CHT595 is plug-and-play and requires no driver installation for Windows 10 or later and macOS 10.12 or later.
Will this work with my USB-C monitor or dock?
The CHT595 requires a compatible USB-C port on your laptop with DP Alt Mode support. It is a docking station for expanding laptop connectivity, not for daisy-chaining with other USB-C devices.
How fast are the USB-A and USB-C data transfer ports?
Both the USB-A and USB-C data ports support USB 3.2 Gen 2, delivering up to 10Gbps data transfer speeds for large file backups and external drive operations.
