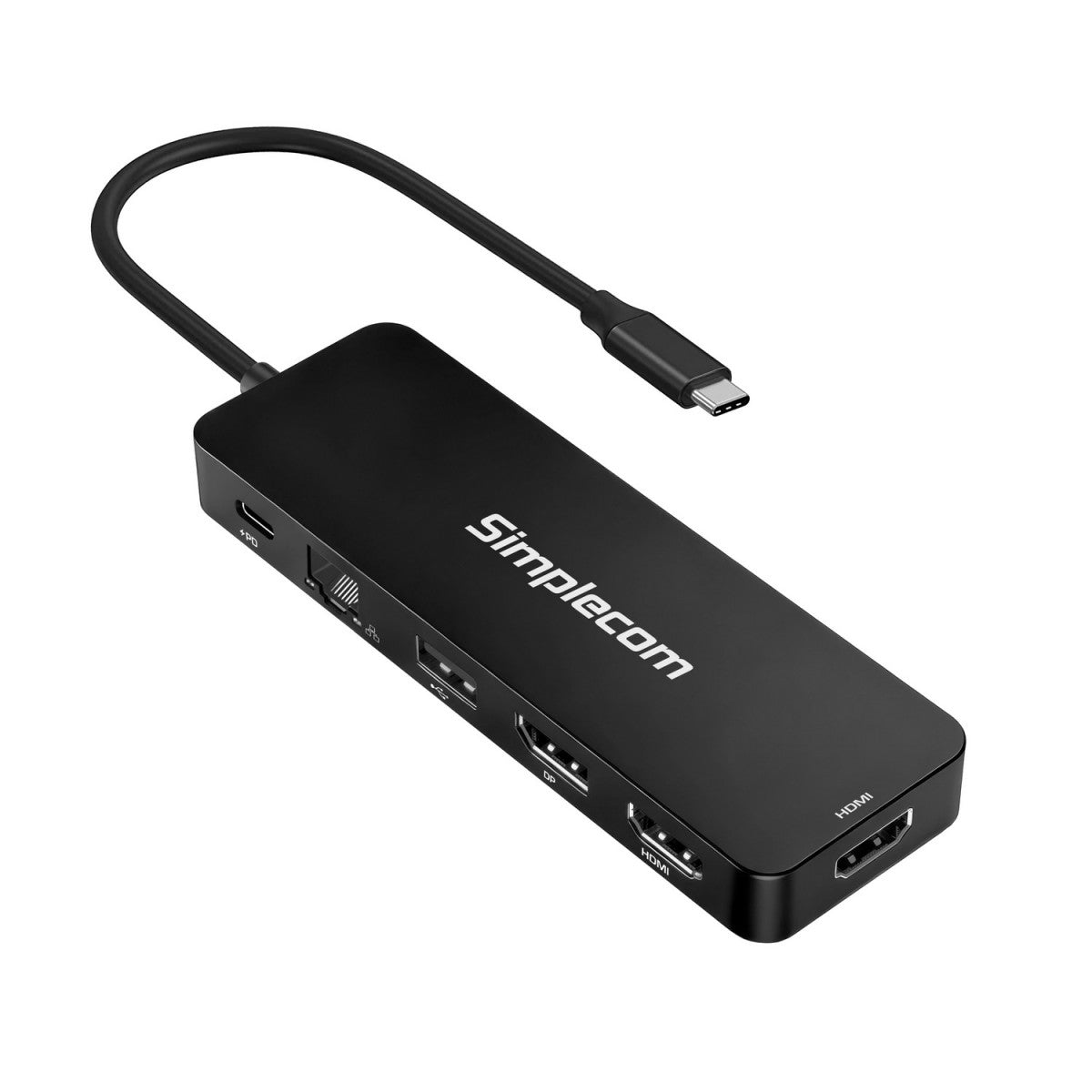

Simplecom CHT811 11-in-1 USB-C Docking Station
Simplecom CHT811 11-in-1 USB-C Docking Station
SKU:USSI-CHT811
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | USB, Bluetooth & IEEE |
| SKU | USSI-CHT811 |
| Availability | In Stock |
Overview
- The Simplecom CHT811 is a feature-rich 11-in-1 USB-C docking station that connects to your laptop via a single USB-C cable, transforming a single-display setup into a productive multi-monitor workspace. It delivers three display outputs—two HDMI and one DisplayPort—each capable of 4K@60Hz resolution, enabling true multitasking across up to three external monitors.
Beyond display expansion, the CHT811 consolidates connectivity with five USB data ports (USB-A and USB-C), Gigabit Ethernet, a 3.5mm audio jack, and dedicated 100W Power Delivery charging. This means you can connect peripherals, maintain a stable wired network connection, and charge your laptop simultaneously—all through one cable.
Built with an aluminium chassis and weighing just 86g, the CHT811 is designed for portability without compromising durability. It's plug-and-play compatible with Windows 10+ and macOS 10.12+, requiring no software installation. The docking station supports MST technology for flexible display configuration, making it suitable for professionals in design, development, finance, and content creation who demand serious multitasking capability.
Specifications
| Model | CHT811 |
|---|---|
| Host Interface | USB-C |
| USB Ports | 1x USB 480Mbps (Type-A), 2x USB 5Gbps (Type-A), 1x USB 480Mbps (Type-C), 1x USB 5Gbps (Type-C) |
| Display Outputs | 2x HDMI, 1x DisplayPort |
| HDMI Resolution | Up to 4K@60Hz (3840x2160) |
| DisplayPort Resolution | Up to 4K@60Hz (3840x2160) |
| HDCP Support | HDCP 2.3 (backwards compatible) |
| Network | RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
| Audio | 3.5mm TRRS Jack (Stereo + Microphone) |
| Power Delivery | USB-C PD, up to 100W (charging only) |
| Housing Material | Aluminium |
| Dimensions | 133 x 42 x 14mm |
| Weight | 86g |
| Operating Temperature | 0–50°C |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Does the CHT811 support three 4K displays simultaneously?
Yes, with compatible hardware. Your laptop GPU must support DisplayPort 1.4 or higher with Display Stream Compression (DSC) for three extended displays at 4K@60Hz. DisplayPort 1.2 supports two extended screens; DP 1.4+ supports three.
Will this docking station work with my MacBook?
Yes, the CHT811 is compatible with macOS 10.12 or later. Note: macOS does not support MST technology, so it will operate in single extended display mode only (one external monitor).
Can I charge my laptop while using the docking station?
Yes. The CHT811 includes a dedicated USB-C Power Delivery port that supplies up to 100W charging independently of data operations, allowing simultaneous charging and peripheral use.
What USB-C ports do I need on my laptop?
Your laptop must have a USB-C port with DisplayPort Alternate Mode (DP Alt Mode) support for video output. This is typically found on Thunderbolt 3, Thunderbolt 4, or USB4 ports. Standard USB-C charging-only ports will not work for display output.
Is the Gigabit Ethernet port included in the 11 ports?
The docking station includes Gigabit Ethernet as one of its features. It provides stable wired connectivity at speeds up to 1000Mbps alongside the USB and display ports.
Do I need to install drivers to use the CHT811?
No. The CHT811 is plug-and-play on Windows 10+ and macOS 10.12+. Simply connect it to your laptop's USB-C port and it will be recognised without additional software.
What is MST (Multi-Stream Transport)?
MST allows a single DisplayPort output from your laptop to drive multiple external monitors independently through the docking station. This enables true multitasking across separate screens. Note: macOS does not support MST.
How portable is this docking station?
Very. At just 86g and measuring 133 x 42 x 14mm, the CHT811 is compact and lightweight, making it easy to pack with your laptop for travel or hot-desking scenarios.
