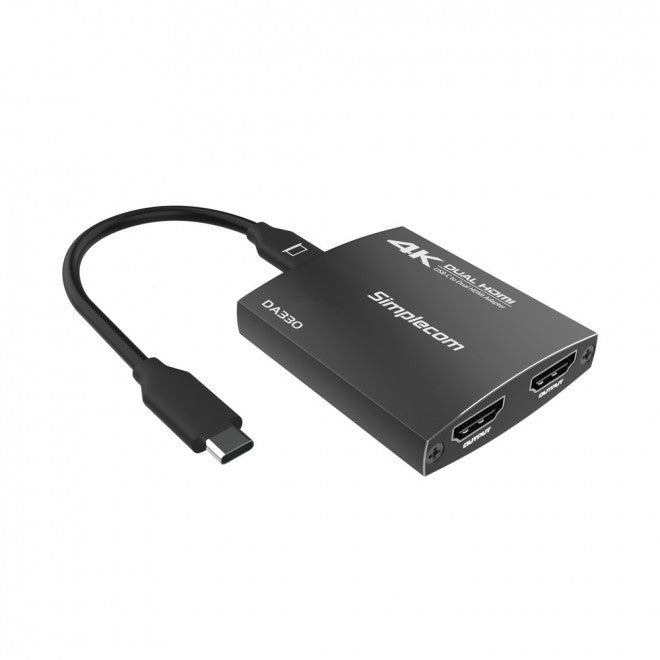

Simplecom DA330 USB-C Dual HDMI MST Adapter 4K@60Hz
Simplecom DA330 USB-C Dual HDMI MST Adapter 4K@60Hz
SKU:CBSI-DA330
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | USB, Bluetooth & IEEE |
| SKU | CBSI-DA330 |
| Availability | In Stock |
Overview
- The Simplecom DA330 is a compact USB-C multiport adapter that transforms single-port laptops into full dual-monitor workstations. By connecting two HDMI displays simultaneously through one USB-C port, it significantly increases screen real estate and productivity without requiring additional software or drivers.
The adapter supports resolutions up to 4K@60Hz for single displays and 4K@30Hz when both displays are active, making it suitable for professional workflows including video editing, data analysis, and software development. The integrated 100W Power Delivery means your laptop stays charged while you work, eliminating the need for separate power cables.
With its aluminium construction, compact 10cm cable, and support for both mirror and extended display modes, the DA330 is an ideal solution for professionals seeking a portable, reliable multi-display setup. The 3.5mm audio output adds flexibility for audio routing without competing for USB ports.
Specifications
| Brand | Simplecom |
|---|---|
| Model | DA330 |
| Product Type | USB-C Multiport Adapter |
| HDMI Outputs | 2x HDMI |
| Audio Output | 1x 3.5mm jack |
| USB-C Ports | 1x USB-C (input), 1x USB-C Female (Power Delivery only) |
| Maximum Resolution (Single Display) | 3840x2160 at 60Hz (4K@60Hz) |
| Maximum Resolution (Dual Displays) | 3840x2160 at 30Hz (4K@30Hz) |
| Power Delivery | Up to 100W via USB-C |
| Display Modes | Mirror or Extended (Windows); Extended only (macOS) |
| Material | Aluminium |
| Cable Length | 10cm |
| Dimensions | 6.2cm (L) x 5.2cm (W) x 1.5cm (H) |
| Operating Temperature | 0–50°C |
| System Requirements | USB-C port with DisplayPort Alternate Mode; Windows 8 or above |
| Driver Required | No |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Can I use the DA330 with a Mac?
The DA330 is compatible with macOS, however it supports only one extended screen on Mac devices. MST functionality for dual independent displays is available on Windows 8 and above only.
Does the adapter require drivers or software installation?
No. The Simplecom DA330 is plug and play and requires no drivers or software installation. It will work immediately once connected to a compatible USB-C port.
Can I charge my laptop while using the DA330?
Yes. The adapter includes 100W USB-C Power Delivery, allowing you to charge your laptop simultaneously while using both HDMI displays.
What is the difference between mirror and extended display modes?
Mirror mode displays the same content on both screens. Extended mode treats both displays as separate workspaces, allowing you to drag windows across screens and use them independently for increased productivity.
Will both displays support 4K resolution at the same time?
When both HDMI displays are connected, the maximum supported resolution is 4K@30Hz per display. For 4K@60Hz, only a single display should be connected.
What USB-C port capabilities do I need on my laptop?
Your laptop's USB-C port must support DisplayPort Alternate Mode. Most modern USB-C equipped laptops include this feature. Check your laptop specifications if unsure.
Can the DA330 be used with USB-C hubs or docking stations?
The DA330 is a standalone multiport adapter. It connects directly to your laptop's USB-C port. Using it with additional hubs may impact performance or power delivery.
