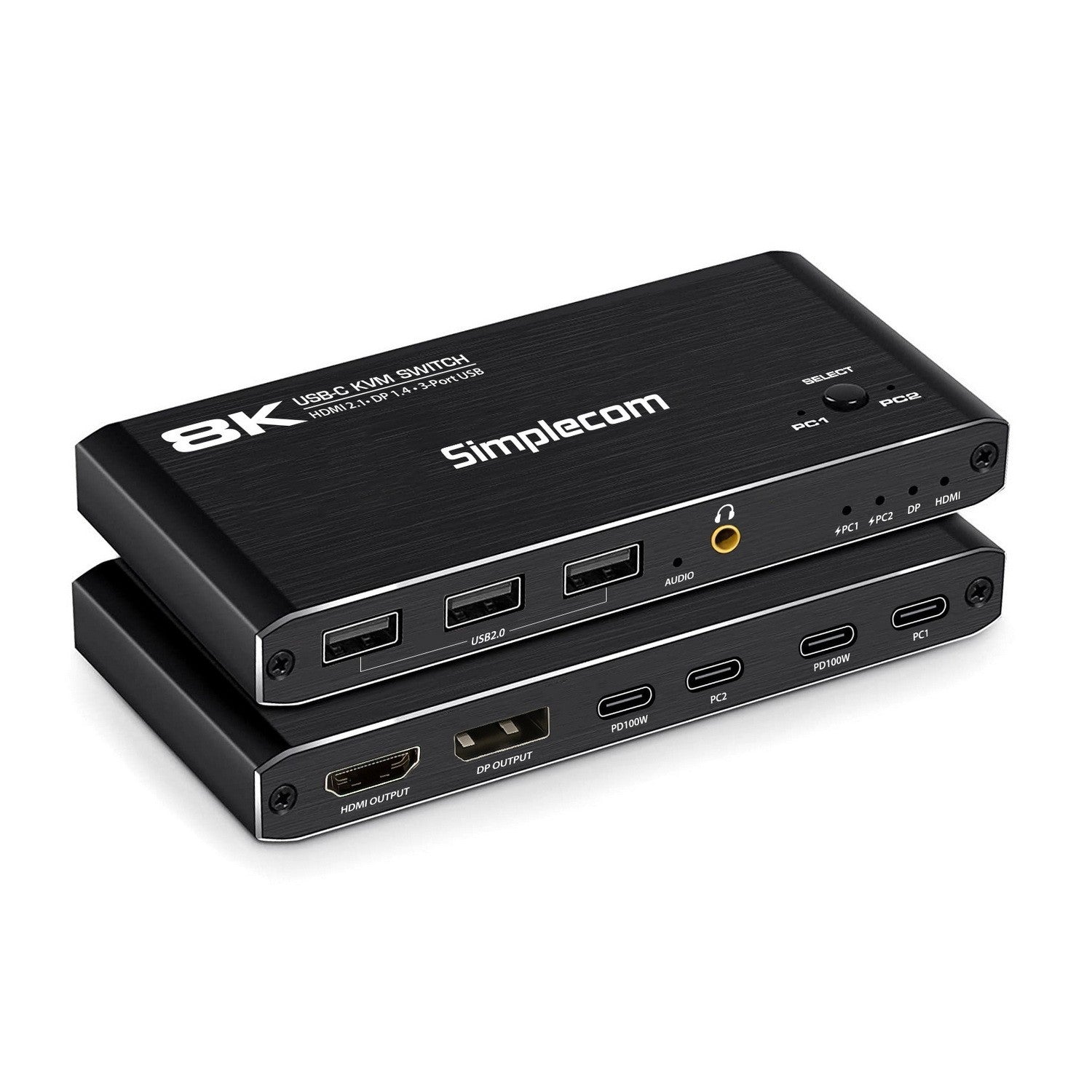

Simplecom KM470 2-Port USB-C KVM Switch & 8K Docking Station
Simplecom KM470 2-Port USB-C KVM Switch & 8K Docking Station
SKU:HXSI-KM470
The Simplecom KM470 is a 2-port USB-C KVM switch and docking station that allows two laptops to share a single display and peripherals. Featuring HDMI 2.1 and DisplayPort 1.4 support for 8K resolution, dual 100W PD charging ports, and integrated USB 2.0 hub, it delivers seamless multitasking and connectivity for professionals.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Notebook Accessories |
| SKU | HXSI-KM470 |
| Availability | In Stock |
Overview
- The Simplecom KM470 is a powerful 2-port USB-C KVM switch combined with a full-featured docking station. It allows two USB-C laptops to seamlessly share a single external display, keyboard, mouse, and other peripherals with just a toggle of a button. This eliminates the need to constantly swap cables and reconnect devices when switching between work systems.
Designed for professionals who demand high-performance video output, the KM470 supports 8K resolution via HDMI 2.1 and DisplayPort 1.4, making it ideal for video professionals, designers, and content creators. The dual 100W USB-C PD charging ports enable both laptops to charge simultaneously, whilst a 3-port USB 2.0 hub accommodates standard peripherals. Since the device draws power directly from the connected laptop, no external power adapter is required.
Built with durable aluminium alloy construction and engineered for efficient heat dissipation, the KM470 offers a reliable, compact solution for organisations looking to streamline workspaces and reduce peripheral management overhead. Compatible with Windows, macOS, and Chrome OS, it works with any laptop featuring a USB-C port with DisplayPort Alternate Mode support, including Thunderbolt 3, Thunderbolt 4, and USB4 devices.
Specifications
| Model | KM470 |
|---|---|
| USB Upstream Ports | USB-C x2 (for PC1 and PC2) |
| USB Downstream Ports | USB 2.0 x3 |
| PD Charging Ports | USB-C x2 (100W maximum per port) |
| Video Output Ports | HDMI 2.1 x1, DisplayPort 1.4 x1 |
| USB Maximum Bandwidth | 480 Mbps (High-Speed) |
| HDMI Maximum Bandwidth | 48 Gbps |
| DisplayPort Maximum Bandwidth | 32.4 Gbps |
| Supported Video Resolutions | 1080p @ 60/120/165Hz; 4K @ 60/120/144Hz (DSC); 8K @ 30/60Hz (DSC) |
| Audio Output | 3.5mm jack (sound output only) |
| Operating Temperature Range | 0°C to 50°C |
| Dimensions | 13 x 6.3 x 1.6mm |
| Weight | 109g |
| Casing Material | Aluminium alloy |
| Compatible Operating Systems | Windows, macOS, Chrome OS |
| System Requirements | Laptop or tablet with USB-C port supporting DisplayPort Alternate Mode; Thunderbolt 3, Thunderbolt 4, or USB4 compatible |
| Power Requirements | Self-powered via connected laptop (no external adapter needed) |
| Warranty | 12 months |
| Included Accessories | 2x USB-C to USB-C cables |
Key Features
Ideal For
FAQs
Can I charge both laptops at the same time with the KM470?
Yes. The KM470 features two separate USB-C PD charging ports, each capable of delivering up to 100W. This allows both connected laptops to charge simultaneously whilst sharing peripherals and displays.
Do I need an external power adapter to use this KVM switch?
No. The KM470 is self-powered via the connected laptop. It draws power directly from whichever laptop is actively using it, so no additional power adapter is required.
What video resolutions does the KM470 support?
The KM470 supports up to 8K resolution at 30–60Hz via HDMI 2.1 and DisplayPort 1.4. It also supports 4K at up to 144Hz (with DSC) and 1080p at up to 165Hz. It is backward compatible with HDMI 2.0 and HDMI 1.4.
Which laptops are compatible with the KM470?
The KM470 works with any laptop or tablet featuring a USB-C port that supports DisplayPort Alternate Mode. This includes devices with Thunderbolt 3, Thunderbolt 4, or USB4 ports. Compatible operating systems include Windows, macOS, and Chrome OS.
How do I switch between the two connected laptops?
Simply press the toggle button on the KM470 to switch between your two laptops. The LED indicator shows which laptop is currently active. The switch is hot-swappable, so you can switch between devices without disconnecting cables.
Can I connect USB devices like a mouse and keyboard through the KM470?
Yes. The KM470 includes a 3-port USB 2.0 hub for connecting peripherals such as mouse, keyboard, printer, and other USB devices. These peripherals are shared between both connected laptops.
What is the maximum USB bandwidth of the KM470?
The USB 2.0 ports support a maximum bandwidth of 480 Mbps (High-Speed USB). This is sufficient for most standard peripherals like mice, keyboards, and printers.
Does the KM470 require any driver installation?
No. The KM470 is plug-and-play and does not require driver installation on Windows, macOS, or Chrome OS. Simply connect it to your laptops and it will work immediately.
