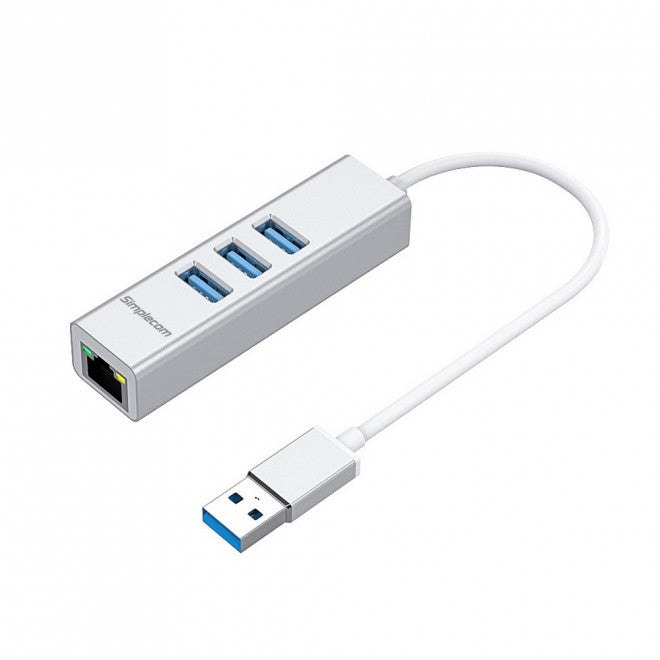

Simplecom CHN420 3-Port USB 3.0 Hub with Gigabit Ethernet
Simplecom CHN420 3-Port USB 3.0 Hub with Gigabit Ethernet
SKU:HXSI-CHN420-SIL
The Simplecom CHN420 is a 3-port USB 3.0 hub with integrated Gigabit Ethernet adapter designed for laptops and ultrabooks lacking network connectivity. Featuring SuperSpeed USB ports supporting up to 5Gbps transfer speeds and a 1000Mbps Ethernet connection, it delivers efficient data and network access for mobile professionals.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | USB, Bluetooth & IEEE |
| SKU | HXSI-CHN420-SIL |
| Availability | In Stock |
Overview
- The Simplecom CHN420 combines three high-speed USB ports with a Gigabit Ethernet adapter in a single, compact aluminium device. This makes it ideal for modern laptops—particularly ultrabooks and Chromebooks—that have eliminated traditional Ethernet ports and USB-A connectivity. The hub supports data transfer speeds of up to 5Gbps over USB and up to 1000Mbps over Ethernet, allowing you to simultaneously connect multiple peripherals and maintain reliable wired network access.
Designed for simplicity and durability, the CHN420 features an elegant aluminium construction that resists wear while maintaining a minimal footprint on your desk. It requires no external power source, drawing power directly from your laptop's USB port, and requires no driver installation—simply plug it in and it works with Windows, macOS, and Chrome OS.
This hub is particularly valuable for professionals who work in environments requiring stable wired network connections, such as offices with corporate network policies or locations with unreliable Wi-Fi. The integrated Ethernet adapter eliminates the need for a separate network dongle, reducing cable clutter and simplifying your mobile workstation setup.
Specifications
| USB Specification | USB 3.2 Gen1 (USB 3.0) |
|---|---|
| USB Ports | 3x SuperSpeed USB-A |
| USB Transfer Speed | Up to 5Gbps |
| Ethernet | Gigabit Ethernet (RJ45) |
| Ethernet Speed | Up to 1000Mbps (10BASE-T, 100BASE-TX, 1000BASE-T) |
| Network Protocols | IPv4 and IPv6 |
| Power Source | USB bus-powered |
| Operating Current | <300 mA ±10 mA |
| Dimensions | 87 x 24 x 17 mm |
| Material | Aluminium unibody |
| Operating Temperature | 0–50°C |
| Operating Humidity | 10–85% RH (non-condensing) |
| Compatible Operating Systems | Windows 7+ (32/64-bit), macOS 10.6+, Chrome OS |
| Installation | Plug and play (no drivers required) |
| Indicators | LED power and network status |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Does the CHN420 require an external power supply?
No. The CHN420 is USB bus-powered and draws power directly from your laptop or computer via the USB connection. No external power adapter is needed.
What operating systems are supported?
The CHN420 is compatible with Windows 7 and later (32 and 64-bit), macOS 10.6 and later, and Chrome OS. Installation is plug-and-play with no additional drivers required.
Can I use the USB ports and Ethernet connection simultaneously?
Yes. The CHN420 provides three independent USB 3.0 ports and a Gigabit Ethernet adapter that can all be used at the same time, allowing you to connect multiple peripherals and maintain network access simultaneously.
What transfer speeds should I expect?
USB ports support SuperSpeed transfer rates of up to 5Gbps (USB 3.0 speeds), while the Gigabit Ethernet adapter supports network speeds of up to 1000Mbps.
Is the CHN420 suitable for Chromebooks?
Yes. The CHN420 is specifically designed for Chromebooks and ultrabooks that lack built-in Ethernet and traditional USB-A ports. It provides both wired network access and additional USB connectivity.
Will this hub work with my MacBook or ultrabook?
Yes. The CHN420 is compatible with macOS 10.6 and later and works with any laptop featuring a USB-A port. It is particularly useful for ultrabooks without built-in Ethernet ports.
How compact is the CHN420?
The CHN420 measures 87 x 24 x 17 mm and features a slim aluminium design, making it highly portable and ideal for mobile professionals who need a compact connectivity solution.
