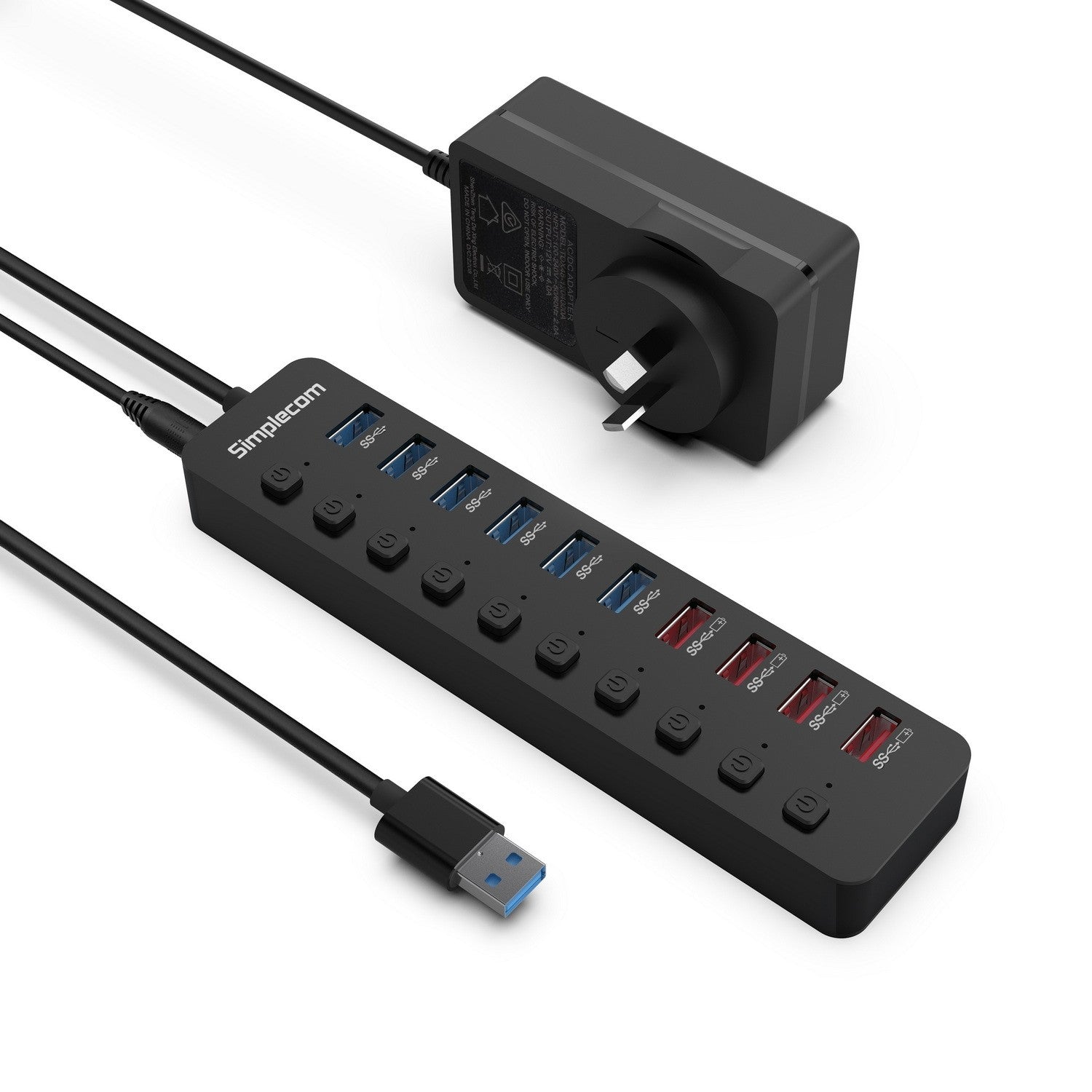

Simplecom CHU810 10-Port USB 3.0 Hub and Charger
Simplecom CHU810 10-Port USB 3.0 Hub and Charger
SKU:HXSI-CHU810
The Simplecom CHU810 is a 10-port USB 3.0 hub with integrated charging capability, designed for expanding connectivity and powering multiple devices simultaneously. Featuring individual port switches, BC 1.2 fast charging ports, and 48W power delivery, it provides reliable expansion for offices and creative workstations.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | USB, Bluetooth & IEEE |
| SKU | HXSI-CHU810 |
| Availability | In Stock |
Overview
- The Simplecom CHU810 combines a 10-port USB 3.0 hub with integrated charging functionality, allowing you to expand your computer's USB connectivity whilst simultaneously powering multiple devices. With 48W of total power delivery and four dedicated BC 1.2 fast charging ports, it handles both data-intensive transfers and power-hungry devices without compromise.
Each port features its own on/off switch, giving you independent control over connected devices and helping reduce power consumption when certain peripherals aren't in use. The aluminium construction provides durability and efficient heat dissipation, whilst built-in protections guard against short-circuits, over-current, over-voltage, and overheating.
Designed for plug-and-play operation on Windows and macOS systems, the CHU810 requires no additional driver installation. It's backwards compatible with USB 2.0 and 1.1 devices, making it suitable for mixed environments with legacy equipment.
Specifications
| brand | Simplecom |
|---|---|
| model | CHU810 |
| product_type | USB 3.0 Hub and Charger |
| ports | 10 × USB 3.0 Type-A |
| data_transfer_rate | Up to 5 Gbps (USB 3.2 Gen 1) |
| power_input | USB 3.0 Type-A upstream connection |
| power_adapter | 12V/4A (48W total power) |
| fast_charging_ports | 4 × BC 1.2 ports (up to 1.5A per port) |
| port_switches | Individual on/off switches on all 10 ports |
| indicators | Individual blue LEDs per port |
| material | Aluminium shell |
| backwards_compatibility | USB 2.0 and USB 1.1 |
| operating_system_support | Windows XP and above (32/64-bit), macOS 10.2 and above |
| driver_requirement | None—plug and play |
| safety_features | Short-circuit, over-current, over-voltage, and over-heating protection |
| warranty | 12 months |
Key Features
Ideal For
FAQs
How many devices can I charge simultaneously?
The CHU810 supports charging on all 10 ports. Four ports provide BC 1.2 fast charging (up to 1.5A each), whilst the remaining six ports provide standard USB 3.0 charging. The 48W adapter distributes power across all ports, so total charging capacity depends on the combined power draw of your connected devices.
Do I need to install drivers?
No. The CHU810 is plug-and-play and requires no additional driver installation on Windows XP and above or macOS 10.2 and above.
What's the difference between the fast charging ports and standard ports?
The four BC 1.2 ports automatically optimise current delivery up to 1.5A per port for faster charging of smartphones and tablets. The six standard USB 3.0 ports provide data transfer and standard charging at lower power levels.
Can I use individual port switches to control power consumption?
Yes. Each port has its own on/off switch, allowing you to disable specific ports independently. This helps reduce power consumption and prevents unwanted data transfers when certain devices aren't needed.
Is the CHU810 compatible with older USB devices?
Yes. The hub is backwards compatible with USB 2.0 and USB 1.1 devices, though data transfer rates will be limited to those older standards.
What safety features are included?
The CHU810 includes comprehensive protection against short-circuits, over-current, over-voltage, and overheating. The aluminium shell also aids in thermal management.
What's the maximum data transfer speed?
The hub supports USB 3.2 Gen 1 (USB 3.0) SuperSpeed data transfer rates up to 5Gbps, providing rapid file transfers when used with compatible devices.
