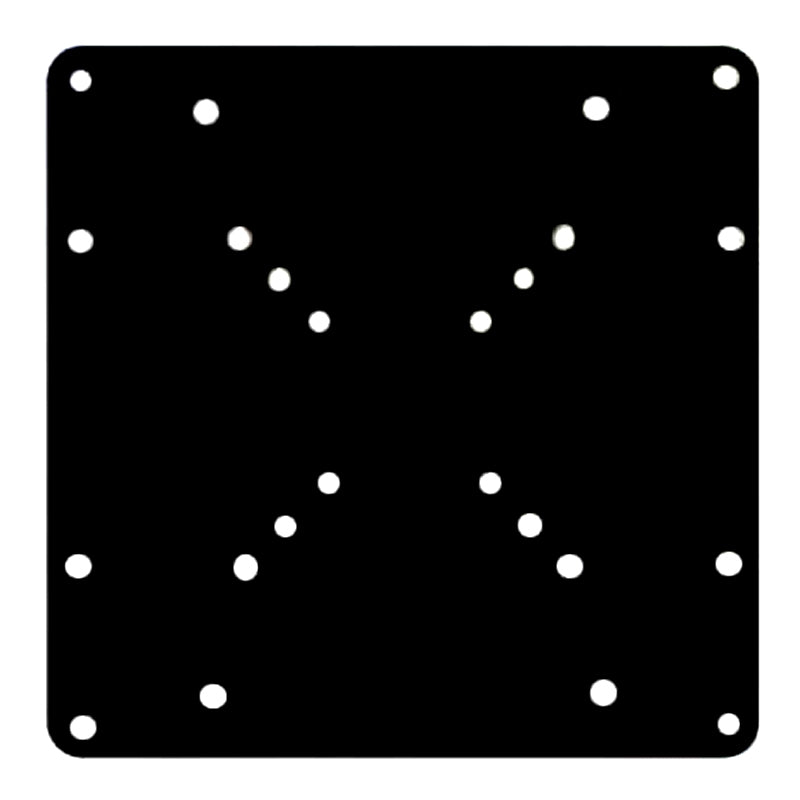

Brateck LCD-201C 200x200 VESA Extension Plate
Brateck LCD-201C 200x200 VESA Extension Plate
SKU:MABT-LCD-201C
Couldn't load pickup availability
- See our return policy
- 5 years Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LCD-201C |
| Availability | In Stock |
Overview
- The Brateck LCD-201C VESA extension plate solves a common mounting challenge: bridging the gap between older or standardised mounting hardware and larger modern displays. It adapts smaller VESA hole patterns (50x50, 75x75, 100x100) to accommodate displays with VESA 200x200 or 200x100 patterns, making it ideal for offices looking to upgrade without replacing existing wall mounts or arm systems.
Constructed from steel with a durable powder-coated finish, the LCD-201C is designed to handle displays up to 42 inches with a maximum weight capacity of 30kg. The fixed panel design integrates seamlessly with standard mounting interfaces, and all assembly hardware is included for straightforward installation.
This adapter is strength-tested and approved to deliver reliable, secure mounting. It's a cost-effective solution for businesses standardising their display infrastructure or retrofitting existing installations.
Specifications
| Product Type | VESA Extension Plate |
|---|---|
| Material | Steel |
| Surface Finish | Powder-coated |
| Colour | Fine texture black |
| Dimensions | 220 × 220 mm |
| Compatible Screen Sizes | 23–42 inches |
| VESA Input Patterns | 50×50, 75×75, 100×100 mm |
| VESA Output Patterns | 200×100, 200×200 mm |
| Maximum VESA | 200×200 mm |
| Weight Capacity | 30 kg (66 lbs) |
| Panel Type | Fixed |
| Strength Testing | 4× approved |
| Warranty | 5 years |
Key Features
Ideal For
FAQs
What VESA patterns does the Brateck LCD-201C support?
The LCD-201C accepts input patterns of VESA 50×50, 75×75, and 100×100 mm, and outputs VESA 200×100 and 200×200 mm patterns. This allows older or standardised mounts to support larger modern displays.
What is the maximum display size and weight capacity?
The plate is compatible with displays from 23 to 42 inches and supports a maximum weight capacity of 30 kg (66 lbs).
Is the plate easy to install?
Yes. Assembly is straightforward, and all required mounting hardware is included in the package.
What is the warranty coverage?
The Brateck LCD-201C includes a 5-year warranty, covering manufacturing defects and structural integrity.
Can I use this plate with my existing wall mount?
Yes, provided your existing mount has a VESA 50×50, 75×75, or 100×100 pattern and is compatible with standard mounting interfaces. The plate attaches to wall mounts and other mounting systems using these patterns.
How durable is the LCD-201C?
The plate is constructed from steel with a powder-coated finish for durability. It has been strength-tested and approved four times to ensure reliable, secure mounting.
