Shuttle PVG01 VGA Port Extension Adapter
Shuttle PVG01 VGA Port Extension Adapter
SKU:CBS-PVG01
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Shuttle |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | CBS-PVG01 |
| Availability | In Stock |
Overview
- The Shuttle PVG01 is a VGA port extension adapter that equips compatible Shuttle Slim PCs with analog VGA output capability. This is particularly useful for businesses and organisations relying on legacy display systems or requiring multi-monitor configurations in space-constrained environments.

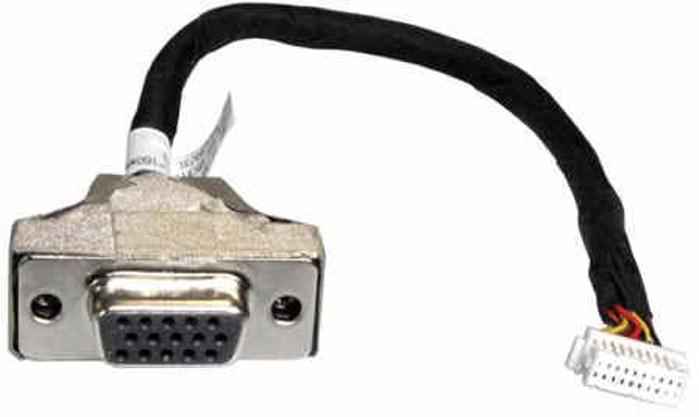

The adapter connects internally via a Subminiature 2x10-pin connector and extends a 15-pin Mini D-Sub female socket to the back panel, providing standard VGA connectivity. The 160 mm cable allows flexible routing within the chassis.
Note that on DS81 systems, using the VGA adapter limits serial interface availability to COM 1. Systems with H81 chipset support simultaneous dual displays, meaning only two video outputs can be used at once across available connectors.
Installation is straightforward, with the kit including the adapter, installation guide, and mounting screws. The PVG01 extends the functionality of Shuttle Slim PCs without requiring case modification.
Specifications
| Brand | Shuttle |
|---|---|
| Model | PVG01 |
| Product Type | VGA Port Extension Adapter |
| Cable Length | 160 mm |
| Back Panel Connector | 15-pin Mini D-Sub female socket (DE15) |
| Internal Connector | Subminiature 2x10-pin, 1 mm pitch |
| Connector Type | Female |
| Compatible Models | Shuttle DS81, DS87, DH170, XH81, XH81V |
| Display Support | Up to 2 simultaneous displays on H81 chipset systems |
| Included Accessories | Installation guide, two mounting screws |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Which Shuttle systems are compatible with the PVG01?
The PVG01 is compatible with Shuttle Slim PC models DS81, DS87, DH170, XH81, and XH81V. Compatibility should be verified before purchase, particularly for older or newer Shuttle models not listed.
What type of VGA connector does the PVG01 provide?
The PVG01 provides a standard 15-pin Mini D-Sub female socket (DE15) connector on the back panel, compatible with all standard VGA cables and displays.
How many displays can I connect using the PVG01?
On systems with H81 chipset, you can use up to two displays simultaneously across all available video outputs. The number of displays depends on your system's total video output capacity.
Will the PVG01 affect other features on my Shuttle PC?
On DS81 systems, installing the PVG01 limits serial interface availability to COM 1. Verify your system requirements before installation to ensure this does not impact your specific application.
How long is the internal adapter cable?
The internal adapter cable is 160 mm long, allowing flexible routing within the chassis while maintaining secure connection to the system board.
What is included in the PVG01 package?
The package includes the PVG01 adapter, installation guide, and two mounting screws. A standard VGA cable is not included and must be purchased separately.
Can the PVG01 be installed without opening the system?
No, the PVG01 requires internal installation and connection to the system board via a Subminiature 2x10-pin connector. Professional installation is recommended if you are not familiar with system component installation.
