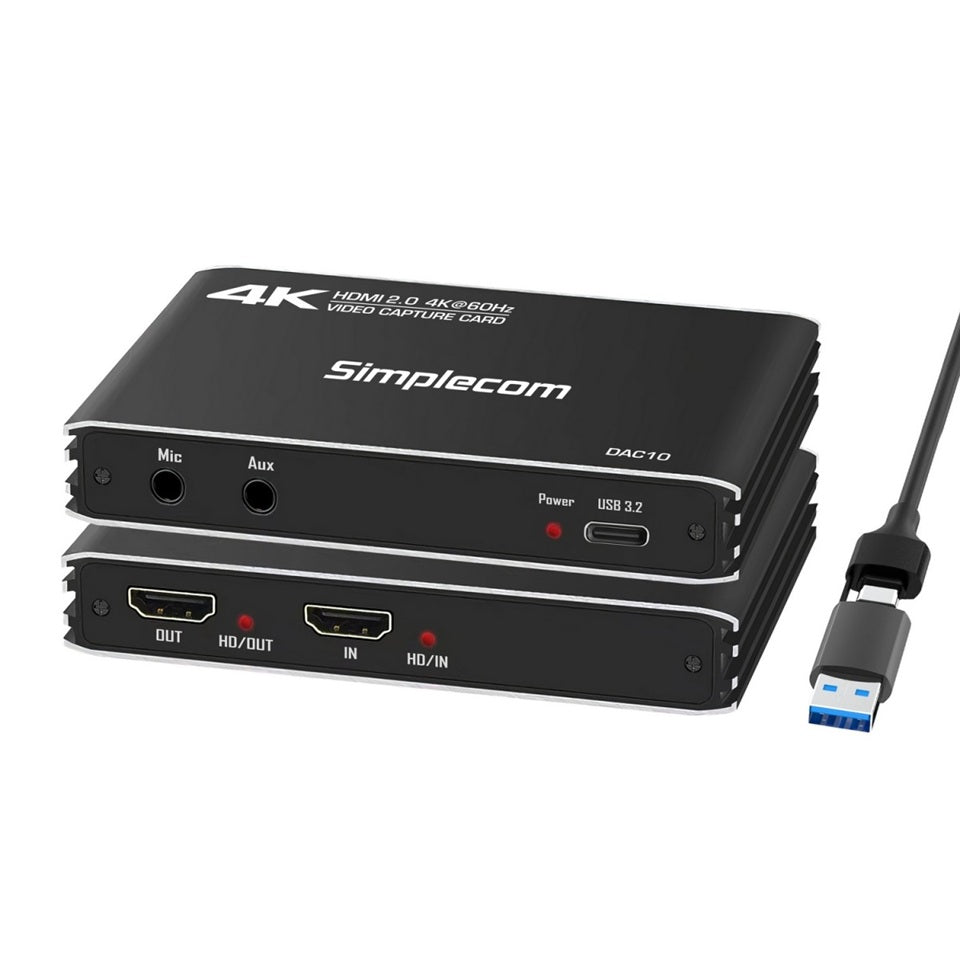

Simplecom DAC10 HDMI to USB 4K 60FPS Video Capture Card
Simplecom DAC10 HDMI to USB 4K 60FPS Video Capture Card
SKU:CBSI-DAC10
The Simplecom DAC10 is a 4K 60FPS HDMI to USB video capture card designed for gamers, streamers, and content creators. Featuring HDMI 2.0 passthrough, built-in audio inputs, and ultra-low latency, it delivers professional-grade video recording and streaming without driver installation.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Cables |
| SKU | CBSI-DAC10 |
| Availability | In Stock |
Overview
- The Simplecom DAC10 is a professional-grade HDMI to USB video capture card that enables high-quality 4K@60Hz video recording and streaming without the complexity of driver installation. It supports multiple video formats and resolutions, making it versatile enough for gamers, streamers, and content creators who need reliable, low-latency capture.
With HDMI 2.0 passthrough and Variable Refresh Rate (VRR) technology, the DAC10 eliminates screen tearing and lag while delivering pristine video quality in real time. The integrated 3.5mm microphone input and audio output jack allow users to capture commentary and monitor audio simultaneously, simplifying multi-source setups.
The device is powered entirely by USB, requires no external power supply, and works immediately upon connection—ideal for portable streaming rigs and quick deployments. Its compact aluminium design and universal software compatibility with OBS, VLC, and most capture platforms make it a practical choice for both hobbyist and semi-professional setups.
Specifications
| Host Interface | USB-C, USB 3.2 Gen 2, 10Gbps |
|---|---|
| HDMI Input | HDMI 2.0 (unencrypted), backward compatible |
| HDMI Output (Passthrough) | HDMI 2.0 with HDR10 and VRR support |
| Microphone Input | 3.5mm line input (3-pole) |
| Audio Output | 3.5mm line output (3-pole) |
| Video Format Support | MJPEG, YUY2, NV12, I420 |
| Video Resolution & Frame Rate (MJPEG) | Up to 4K@60Hz, 2K@144Hz, 1080p@240Hz |
| Video Resolution & Frame Rate (YUY2) | Up to 2K@60Hz, 1080p@60Hz |
| Video Resolution & Frame Rate (NV12/I420) | Up to 4K@30Hz, 2K@60Hz, 1080p@120Hz |
| Audio Format | LPCM |
| HDCP Support | HDCP2.3 passthrough |
| Operating Temperature | -10°C to 55°C |
| Housing Material | Aluminium alloy |
| Dimensions | 9.2 x 6.3 x 1.5 cm (L x W x H) |
| Weight | 81g |
| Power Supply | USB-powered, no external adapter required |
| Cable Included | USB-C and USB-A combo cable |
| Compliance Standards | UVC (USB Video Class), UAC (USB Audio Class) |
| Operating Systems | Windows 10 or later, macOS 10.12 or later |
| Warranty | 12 months |
| Installation | Plug and play, no driver installation required |
Key Features
Ideal For
FAQs
Do I need to install drivers to use the Simplecom DAC10?
No. The DAC10 is UVC and UAC compliant, making it plug-and-play. Simply connect it to your computer via USB, and it will be recognised immediately by Windows and macOS without additional driver installation.
What video resolutions and frame rates does the DAC10 support?
The DAC10 supports multiple resolutions depending on the video format: MJPEG up to 4K@60Hz, 2K@144Hz, or 1080p@240Hz; YUY2 up to 2K@60Hz or 1080p@60Hz; and NV12/I420 up to 4K@30Hz, 2K@60Hz, or 1080p@120Hz.
Does the DAC10 support HDMI passthrough, and what is it used for?
Yes. HDMI passthrough allows you to connect a display to the DAC10 while recording or streaming from an HDMI source. This lets you monitor your content in real time without lag while capturing it to your PC.
Can I use the DAC10 with streaming software like OBS and Streamlabs?
Yes. The DAC10 is fully compatible with popular capture software including OBS, Streamlabs, VLC, and most mainstream streaming platforms.
Does the DAC10 require an external power supply?
No. The DAC10 is powered entirely via USB from your computer, so no external power adapter is needed.
What is Variable Refresh Rate (VRR) support, and how does it benefit gaming?
VRR synchronises frame rates between your display and video source, eliminating screen tearing, flicker, and input lag. This is particularly beneficial for fast-paced gaming and competitive streaming where smooth visuals are critical.
Can I capture audio from my source device and add microphone commentary simultaneously?
Yes. The DAC10 includes a 3.5mm microphone input for adding live commentary and a 3.5mm AUX output for monitoring audio from your source device in real time.
What operating systems is the DAC10 compatible with?
The DAC10 works with Windows 10 or later and macOS 10.12 or later.
