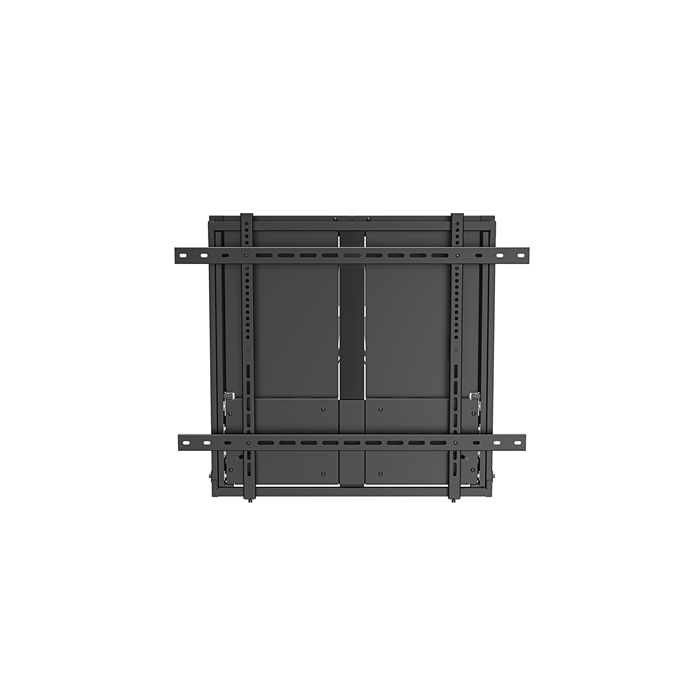

Brateck HAW400E-75 Manual Height-Adjustable Wall Mount 65–86 inch
Brateck HAW400E-75 Manual Height-Adjustable Wall Mount 65–86 inch
SKU:MABT-HAW400E-75
The Brateck HAW400E-75 is a manual height-adjustable wall mount designed for large displays up to 86 inches. Featuring smooth finger-touch height adjustment, weight-balanced design, and heavy-duty steel construction, it delivers reliable mounting for commercial and corporate environments.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-HAW400E-75 |
| Availability | In Stock |
Overview
- The Brateck HAW400E-75 is a professional-grade wall mount engineered for large displays between 65 and 86 inches. Its manual height-adjustment mechanism allows users to position screens precisely without tools, making it ideal for collaborative spaces where viewing angles change throughout the day.
With a weight capacity of 35–65kg and extensive VESA compatibility (200x200 through 800x600), this mount accommodates a broad range of display sizes and weights. The heavy-duty steel construction and powder-coated finish ensure durability in demanding commercial environments while maintaining a sleek, professional appearance.
Installation is straightforward on solid walls or double-stud framing. The included bubble level aids in proper alignment, and the detachable panel system provides flexibility for future adjustments or relocations. The compact profile ensures the mount remains concealed behind the display.
Specifications
| Brand | Brateck |
|---|---|
| Model | HAW400E-75 |
| Product Type | Manual Height-Adjustable Wall Mount |
| Screen Size Compatibility | 65–86 inches |
| Weight Capacity | 35–65kg (77–143lbs) |
| VESA Mounting Patterns | 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 350x350, 400x400, 600x300, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 800x600 |
| Maximum Mounting Hole | 800x600 |
| Height Adjustment Range | 400mm (15.7 inches) |
| Material | Steel, Aluminium, Plastic |
| Bracket Arm Thickness | 2.5mm pickling sheet |
| Wall Plate Thickness | 3mm pickling sheet |
| Square Steel Tube Size | 30x15x1.2mm |
| Overall Profile Depth | 107mm (4.2 inches) |
| Overall Dimensions | 107 × 840 × 696mm (4.2 × 33.1 × 27.4 inches) |
| Surface Finish | Matte black powder coating |
| Colour | Matte Black |
| Tilt Capability | No |
| Curved TV Compatible | No |
| Installation Type | Solid wall or double-stud (406mm/450mm) framing |
| Wall Plate Type | Fixed |
| Panel Type | Detachable |
| Direction Indicator | Yes |
| Included Accessories | Hook-on bubble level |
| Cable Management | No |
| Anti-theft Features | No |
| Strength Testing | 4 times approved |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What screen sizes does the Brateck HAW400E-75 support?
The mount is designed for displays between 65 and 86 inches. It supports VESA mounting patterns from 200x200 up to 800x600, accommodating a wide range of display models within this size range.
How much weight can this wall mount hold?
The HAW400E-75 has a weight capacity of 35–65kg (77–143lbs). Before mounting, verify your display's weight is within this range and that it matches a compatible VESA pattern.
How much vertical height adjustment does it offer?
The mount provides 400mm (15.7 inches) of smooth height adjustment using finger-touch positioning, allowing users to optimise viewing angles without tools.
What walls is this mount suitable for?
Installation is recommended on solid walls or double-stud framing (406mm or 450mm spacing). Always ensure the mounting surface is structurally sound and capable of supporting the total weight.
Is the Brateck HAW400E-75 suitable for curved TVs?
No, this mount is not compatible with curved displays. It is designed for flat-panel screens only.
Does the mount include all necessary installation hardware?
The mount includes a hook-on bubble level to assist with level installation. A comprehensive installation kit is provided with the necessary fasteners and components for standard wall installation.
Can the mount be tilted or rotated?
No, the HAW400E-75 is a fixed wall mount with height adjustment only. It does not offer tilt or rotation capabilities.
What warranty is provided?
The Brateck HAW400E-75 comes with a 36-month manufacturer's warranty covering defects in materials and workmanship.
