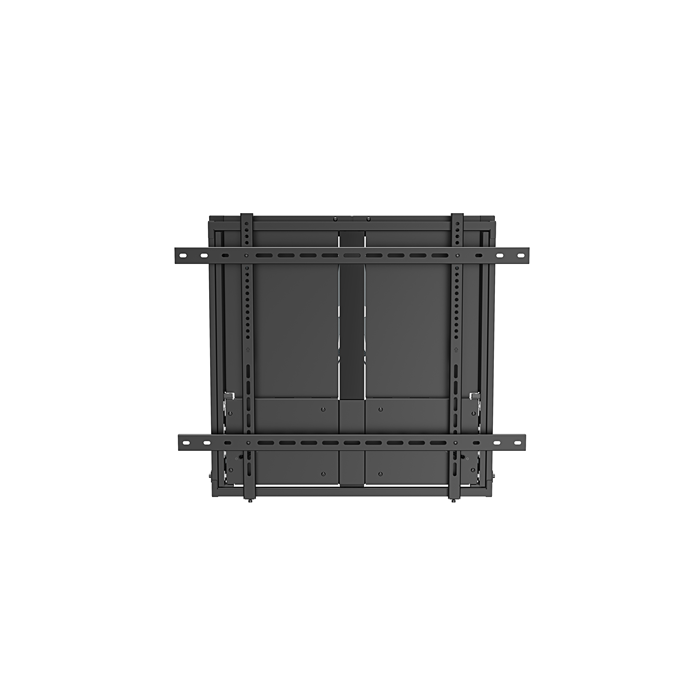

Brateck HAW400E-90 Manual Height-Adjustable Wall Mount 75–90 inch
Brateck HAW400E-90 Manual Height-Adjustable Wall Mount 75–90 inch
SKU:MABT-HAW400E-90
The Brateck HAW400E-90 is a manual height-adjustable wall mount designed for 75–90 inch displays. Featuring finger-touch height adjustment, weight balance design, and heavy-duty steel construction, it delivers stable, flexible mounting for large commercial and residential displays.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-HAW400E-90 |
| Availability | In Stock |
Overview
- The Brateck HAW400E-90 is a manual height-adjustable wall mount engineered for large-format displays between 75 and 90 inches. Its finger-touch height adjustment system allows smooth repositioning without tools, making it ideal for spaces where viewing angles need regular adjustment. The mount's weight balance design safely supports displays from 60 to 90kg, while the heavy-duty steel construction ensures long-term stability even with the heaviest screens.
With broad VESA compatibility spanning 200x200 through 800x600 mounting patterns, the HAW400E-90 accommodates most modern large-format TVs and commercial displays. The compact 107mm profile keeps the mount hidden behind the screen, maintaining a clean aesthetic. Powder-coated matte black finish resists scratches and provides a professional appearance suitable for corporate and commercial environments.
Installation is straightforward on solid walls or double studs (406–450mm), and the included bubble level ensures accurate alignment. A 36-month warranty provides confidence in durability and performance.
Specifications
| Brand | Brateck |
|---|---|
| Model | HAW400E-90 |
| Product Type | Manual Height-Adjustable Wall Mount |
| Screen Size | 75–90 inches |
| Weight Capacity | 60–90kg (132–198lbs) |
| VESA Compatibility | 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 350x350, 400x400, 600x300, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 800x600 |
| Maximum VESA | 800x600 |
| Height Adjustment Range | 400mm (15.7 inches) |
| Material | Aluminium, Steel, Plastic |
| Bracket Arm Thickness | 2.5mm |
| Wall Plate Thickness | 3mm |
| Steel Tube | 30x15x1.2mm square tube |
| Dimensions | 107 x 840 x 696mm (4.2 x 33.1 x 27.4 inches) |
| Profile Depth | 107mm (4.2 inches) |
| Surface Finish | Powder coating |
| Colour | Matte black |
| Mounting Patterns | VESA and Universal |
| Wall Types | Solid wall, double stud (406–450mm) |
| Panel Type | Detachable |
| Wall Plate | Fixed |
| Curved TV Support | No |
| Screen Tilt | No |
| Direction Indicator | Yes |
| Cable Management | No |
| Anti-theft | No |
| Included Accessories | Hook-on bubble level |
| Strength Testing | 4x approved |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What size displays does the HAW400E-90 support?
The HAW400E-90 is designed for displays between 75 and 90 inches with a weight capacity of 60–90kg. It supports VESA mounting patterns from 200x200 up to 800x600.
Can I adjust the height of the display after installation?
Yes. The HAW400E-90 features smooth finger-touch height adjustment allowing you to reposition the display up and down (400mm range) without tools.
Is the HAW400E-90 suitable for curved TVs?
No, the HAW400E-90 is not compatible with curved displays. It is designed for flat screens only.
What walls can I install this mount on?
Installation is suitable for solid walls and double stud walls spaced at 406–450mm. Ensure the wall can support the weight of your display plus the mount.
Does the mount offer cable management?
The HAW400E-90 does not include cable management features. You will need to route cables separately behind the display or wall.
Is a level included for installation?
Yes, the HAW400E-90 includes a hook-on bubble level to help ensure accurate horizontal alignment during installation.
What warranty is provided with the HAW400E-90?
The mount comes with a 36-month manufacturer's warranty covering defects in materials and workmanship.
