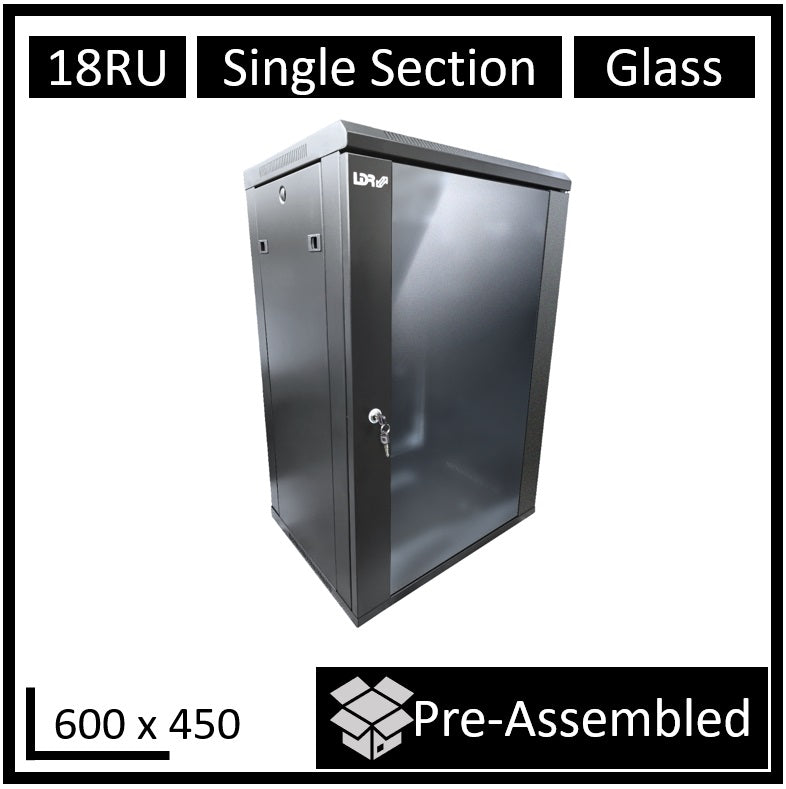

LDR 18U Wall Mount Cabinet Glass Door 600x450mm
LDR 18U Wall Mount Cabinet Glass Door 600x450mm
SKU:RCLDR-SS450-18U-A
The LDR 18U wall mount cabinet is an assembled solution for security, CCTV, and access control installations. Features a smoked glass front door, 60kg load capacity, and side access panels, delivering secure device organisation for IT and security professionals.
Couldn't load pickup availability
Product Information
| Brand | LDR |
|---|---|
| Category | Data Racks & Accessories |
| SKU | RCLDR-SS450-18U-A |
| Availability | In Stock |
Overview
- The LDR 18U wall mount cabinet is a robust, pre-assembled solution designed for security, CCTV, and access control system installations. With a smoked tempered glass front door and locking side panels, it provides secure access to mounted equipment whilst maintaining a professional appearance. The cabinet supports both 19-inch standard rack equipment and non-standard devices such as switches and recorders, making it highly versatile for diverse installation requirements.
Built with black metal construction and featuring IP20 protection, this cabinet is suitable for office environments and secured facilities. The 60kg load capacity and 400mm mounting depth accommodate typical networked devices, whilst the top fan vents support thermal management. Side access panels enable quick maintenance without full cabinet disassembly, reducing downtime during system updates or troubleshooting.
Specifications
| Brand | LDR |
|---|---|
| Model | RCLDR-SS450-18U-A |
| Product Type | Wall Mount Cabinet |
| Mounting Height | 18U |
| Total Height | 900mm |
| Width | 600mm |
| Depth (Outer) | 450mm |
| Mounting Depth | 400mm |
| Colour | Black |
| Load Capacity | 60kg |
| Protection Class | IP20 |
| Front Door | Smoked tempered glass (5mm) with lock |
| Back Door | Not applicable |
| Side Panels | Full steel with latches and lock assembly option |
| Frame Material | Steel |
| Assembly Status | Pre-assembled |
| Shipping Dimensions | 920mm × 620mm × 470mm |
| Shipping Weight | 26kg |
| Packaging | 1 unit per box |
Key Features
Ideal For
FAQs
Is this cabinet pre-assembled?
Yes, the LDR 18U wall mount cabinet comes fully assembled and ready for installation. No assembly is required.
What is the maximum load capacity?
The cabinet has a maximum load capacity of 60kg, suitable for standard networking equipment, switches, recorders, and security devices.
Can I mount non-standard equipment inside?
Yes. The cabinet supports both 19-inch standard rack equipment and non-standard devices such as switches and recorders through the use of optional shelves.
Are the doors lockable?
Yes. The front glass door and side access panels both feature lock assembly options for security and protection of mounted equipment.
What is the IP20 protection class?
IP20 protection provides defence against solid objects larger than 12mm and is suitable for indoor office and facility environments. It is not suitable for wet or dusty outdoor conditions.
What is the mounting depth available for equipment?
The cabinet offers a 400mm mounting depth, which accommodates most standard network switches, patch panels, and security recorders.
Can the side panels be removed for maintenance?
Yes. The side panels are mounted on latches and can be dismounted for quick access to equipment and maintenance work.
