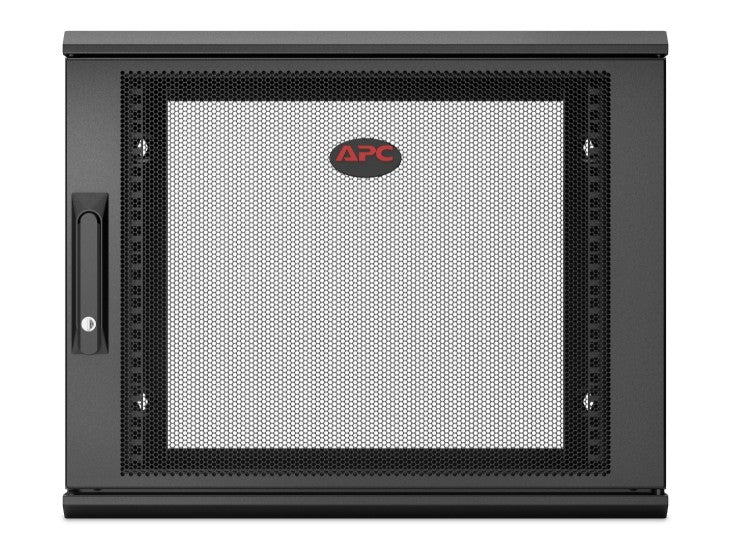

APC NetShelter 9U Wall Mount Rack Enclosure Cabinet
APC NetShelter 9U Wall Mount Rack Enclosure Cabinet
SKU:UPAPC-AR109SH6
The APC NetShelter AR109SH6 is a 9U wall mount rack enclosure designed for edge computing and network deployments in space-constrained environments. Featuring reversible doors, flexible mounting depth, and Netbotx compatibility, it delivers reliable equipment housing for retail, healthcare, and educational facilities.
Couldn't load pickup availability
- See our return policy
- 5 years Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPC-AR109SH6 |
| Availability | Out of Stock |
Overview
- The APC NetShelter 9U wall mount rack enclosure is purpose-built for organisations deploying servers and networking equipment in areas with limited floor space. Its reversible door design and adjustable mounting depth (2.87–20.8 inches) provide flexibility to accommodate various equipment types and installation scenarios.
With a 200lb weight capacity and standard 19" rack width, it supports entry-level servers, network switches, patch panels, and UPS systems. The enclosure ships fully assembled and ventilated, reducing deployment time and on-site assembly work.
The cabinet is compatible with APC's Netbotx security upgrade (sold separately), enabling remote access, video surveillance, and environmental monitoring—critical capabilities for unattended edge locations. Knockouts at the top and bottom facilitate cable management and accessory mounting, while optional 120V fan tray mounting supports active cooling in warm environments.
Backed by a 5-year APC warranty, this enclosure is a reliable choice for retail, healthcare, and educational deployments where space efficiency and equipment protection are priorities.
Specifications
| Brand | APC |
|---|---|
| Model | AR109SH6 |
| Product Type | Wall Mount Rack Enclosure |
| Rack Units | 9U |
| Rack Width | 19 inches |
| Mounting Depth Range | 2.87 to 20.8 inches |
| Weight Capacity | 200 lbs (90.7 kg) |
| Door Type | Reversible |
| Mounting Style | Wall mount |
| Assembly | Fully assembled |
| Ventilation | Ventilated design |
| Netbotx Compatible | Yes (security upgrade sold separately) |
| Optional Cooling | 120V fan tray (top or bottom mount, sold separately) |
| Accessory Mounting | Knockouts at top and bottom (1/2U each) |
| UPS Compatibility | Low-profile APC Smart-UPS models |
| Warranty | 5 years |
Key Features
Ideal For
FAQs
Is the APC NetShelter 9U suitable for small retail locations?
Yes. The wall mount design is ideal for retail environments with limited floor space. It can house servers, network switches, and patch panels efficiently while keeping equipment secure and organised.
What is the maximum weight this enclosure can support?
The APC NetShelter 9U has a static weight capacity of 200 lbs (90.7 kg), suitable for entry-level servers, switches, and UPS systems commonly deployed in edge locations.
Can I use this enclosure with APC UPS systems?
Yes. The NetShelter 9U is compatible with low-profile APC Smart-UPS models and other APC equipment, making it ideal for integrated power and IT infrastructure deployments.
Does it come assembled and ready to install?
Yes. The enclosure ships fully assembled, reducing deployment time and on-site labour. Installation requires only wall mounting and equipment configuration.
Can I add cooling to this enclosure?
Yes. An optional 120V fan tray is available (sold separately) and can be mounted at either the top or bottom of the enclosure for active cooling in warm environments.
Is Netbotx security monitoring supported?
Yes. The reversible door is compatible with APC's Netbotx security upgrade (sold separately), which provides remote access, video surveillance, and environmental monitoring capabilities.
What is the warranty coverage?
The APC NetShelter 9U includes a 5-year manufacturer's warranty, providing peace of mind for your equipment investment.
