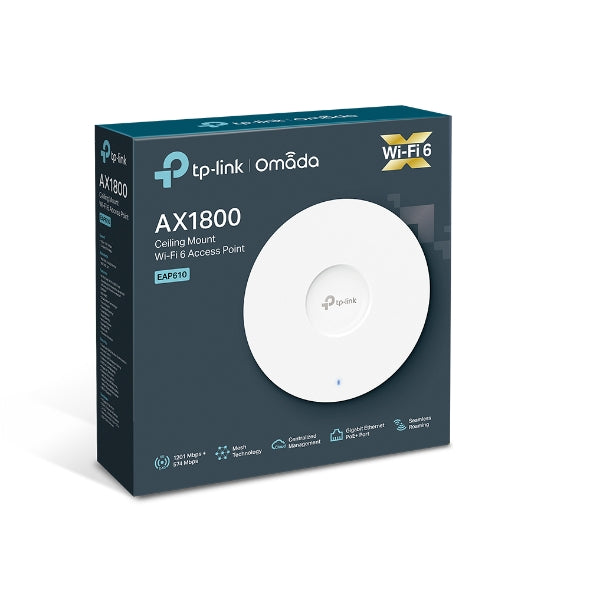

TP-Link EAP610 AX1800 WiFi 6 Ceiling Access Point
TP-Link EAP610 AX1800 WiFi 6 Ceiling Access Point
SKU:NWTL-EAP610
The TP-Link EAP610 is an AX1800 WiFi 6 access point designed for enterprise and SMB networks. Featuring dual-band wireless (1775 Mbps combined), PoE+ power, centralised cloud management, and seamless roaming, it delivers reliable high-speed connectivity for distributed workforces.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-EAP610 |
| Availability | In Stock |
Overview
- The TP-Link EAP610 is a professional-grade WiFi 6 access point engineered for business and enterprise networks. With combined dual-band speeds of 1775 Mbps and support for more connected devices simultaneously, it provides the performance foundation for modern workplaces. The access point supports both PoE+ and DC power options, simplifying deployment in ceiling-mounted and distributed installations without dedicated power infrastructure.
Centralised management through the Omada cloud platform or local controller allows IT teams to monitor, configure, and secure the entire network from a single interface. Seamless roaming ensures users experience uninterrupted connectivity when moving between access points, critical for video conferencing and VoIP applications. The Omada Mesh feature enables wireless backhaul between access points, reducing installation complexity and deployment costs in buildings where cabling is difficult.
Enterprise security features including MAC access control, L3 management, VLAN support, and multiple guest authentication methods ensure your network meets compliance requirements. With a 5-year warranty, the EAP610 represents a dependable investment for organisations planning medium-term network upgrades.
Specifications
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
|---|---|
| Frequency Bands | 2.4 GHz and 5 GHz dual-band |
| 5 GHz Data Rate | Up to 1201 Mbps |
| 2.4 GHz Data Rate | Up to 574 Mbps |
| Combined Speed | 1775 Mbps |
| Antenna Type | Internal omnidirectional (2× 4 dBi @ 2.4 GHz, 2× 5 dBi @ 5 GHz) |
| Network Interface | 1× Gigabit Ethernet (RJ-45) with IEEE 802.3at PoE support |
| Power Supply Options | 802.3at PoE or 12 V / 1 A DC |
| Power Consumption (PoE) | 12.8 W (EU) / 13.9 W (US) |
| Power Consumption (DC) | 10.8 W (EU) / 11.8 W (US) |
| Dimensions | 243 × 243 × 64 mm (W × D × H) |
| Mounting | Ceiling or wall mounted (hardware included) |
| Management Interface | Web-based (HTTP/HTTPS), SSH, Omada mobile app |
| Centralised Management | Omada Hardware Controller (OC300/OC200) or Omada Software Controller |
| Cloud Management | Yes (via OC300, OC200, or Software Controller) |
| SNMP Support | v1, v2c, v3 |
| System Logging | Local and remote Syslog |
| Additional Management Features | Multi-site management, VLAN support, MAC access control, L3 management, email alerts, LED control |
| Security Features | Guest network, multiple authentication methods (SMS, Facebook WiFi, voucher), wireless encryption |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What is WiFi 6 and why does it matter for my business?
WiFi 6 (802.11ax) is the latest wireless standard offering faster speeds, improved efficiency, and better performance with more connected devices. The EAP610 delivers combined speeds up to 1775 Mbps, supporting modern workplaces with video conferencing, cloud applications, and multiple simultaneous connections without congestion.
Can the EAP610 be powered over existing network cables?
Yes. The EAP610 supports PoE+ (802.3at) power delivery over standard Gigabit Ethernet cables, eliminating the need for separate power outlets at the access point location. A 12 V DC power supply is also available as an alternative.
How does seamless roaming work and which devices support it?
Seamless roaming allows devices to move between multiple EAP610 access points without dropping their connection or interrupting voice calls and video streams. Support depends on client device capability; most modern smartphones, laptops, and tablets support this feature when multiple access points share the same network name and security settings.
What is Omada Mesh and when would I use it?
Omada Mesh enables wireless connectivity between access points, allowing them to communicate without requiring wired backhaul. This is useful in buildings where running network cables between access points is impractical, such as heritage buildings, open-plan spaces, or temporary deployments.
Can I manage multiple EAP610 access points from one location?
Yes. The Omada centralised management system supports multi-site management, allowing you to monitor and configure multiple access points across different locations from a single cloud-based or local controller dashboard. The Omada app and web interface provide remote access.
What are the security features available?
The EAP610 includes enterprise security features such as multiple authentication methods (SMS, Facebook WiFi, voucher-based), MAC address access control, VLAN support, WPA3 encryption, guest network isolation, and support for SNMP and remote logging for compliance and monitoring.
Is the EAP610 suitable for ceiling installation?
Yes. The EAP610 is designed for ceiling or wall mounting with included hardware. Its compact 243 × 243 × 64 mm form factor fits standard ceiling grids, and PoE+ power eliminates the need for ceiling-mounted power outlets, simplifying installation.
What warranty and support does TP-Link provide?
The EAP610 includes a 60-month (5-year) manufacturer warranty covering hardware defects. TP-Link provides technical support and regular firmware updates through the Omada management platform to ensure security and feature enhancements.
