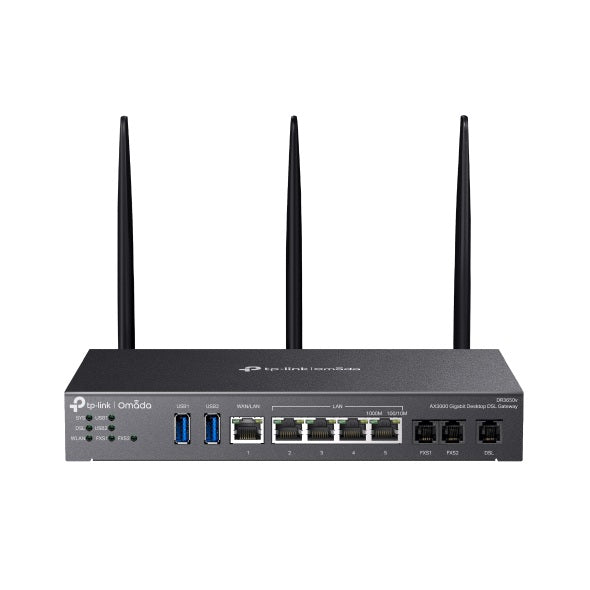

TP-Link DR3650v Omada AX3000 Wi-Fi 6 DSL Gateway
TP-Link DR3650v Omada AX3000 Wi-Fi 6 DSL Gateway
SKU:NWTL-DR3650V
Couldn't load pickup availability
- See our return policy
- 5 years Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-DR3650V |
| Availability | In Stock |
Overview
- The TP-Link DR3650v Omada AX3000 is a professional-grade DSL gateway combining modern Wi-Fi 6 performance with established broadband technology. It supports VDSL2 35b for high-speed DSL access whilst delivering wireless speeds of up to 2.4 Gbps on the 5 GHz band and 574 Mbps on 2.4 GHz, making it suitable for bandwidth-intensive business applications.
Designed for small and medium businesses, the DR3650v integrates VoIP telephony directly into the gateway, eliminating the need for separate equipment. The device supports load balancing between DSL and Ethernet WAN connections, providing failover protection and optimised traffic management. With Omada Mesh Technology integration, it can extend coverage whilst remaining centrally managed through TP-Link's cloud-based Omada platform.
Security is built-in with support for multiple VPN protocols including IPSec, OpenVPN, WireGuard, and L2TP, enabling secure remote access and branch connectivity. The five Gigabit Ethernet ports and dual USB 3.0 ports provide flexible connectivity options for diverse business environments.
Specifications
| Brand | TP-Link |
|---|---|
| Model | DR3650v |
| Product Type | Wi-Fi 6 DSL Gateway |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| 5 GHz Speed | 2402 Mbps |
| 2.4 GHz Speed | 574 Mbps |
| Total Wi-Fi Speed | AX3000 |
| DSL Standard | VDSL2 35b |
| DSL Maximum Speed | 350 Mbps |
| DSL Compatibility | VDSL2/ADSL2+/ADSL2/ADSL |
| VoIP Ports | 2 × FXS |
| DSL Port | 1 × RJ11 |
| Gigabit Ethernet Ports | 5 × RJ45 |
| USB Ports | 2 × USB 3.0 |
| VPN Protocols | IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SSL VPN |
| Management | Centralised Cloud Management (Omada) |
| Mesh Technology | Omada Mesh |
| Features | Load balancing between DSL and Ethernet WAN |
| Mounting | Desktop/Wall Mountable |
| Dimensions | 226 × 131.2 × 35 mm (8.9 × 5.2 × 1.4 inches) |
| Warranty | 5 years |
Key Features
Ideal For
FAQs
What is the difference between VDSL2 and standard ADSL?
VDSL2 (Very High Bit-rate DSL) delivers significantly faster speeds than ADSL—up to 350 Mbps with VDSL2 35b versus typically 10–20 Mbps with ADSL. The DR3650v supports both, allowing it to work on various DSL services. VDSL2 availability depends on your location and service provider.
Can I use this gateway if I have Ethernet broadband instead of DSL?
Yes. The DR3650v has five Gigabit Ethernet ports and supports load balancing between DSL and Ethernet WAN. You can use it with Ethernet-only broadband by connecting your service through one of the WAN Ethernet ports.
Does the DR3650v support mesh networking?
Yes. It features TP-Link's Omada Mesh Technology, allowing it to work seamlessly with other Omada mesh devices to extend Wi-Fi coverage whilst remaining centrally managed through the Omada platform.
What VPN protocols does the DR3650v support?
The gateway supports IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, and SSL VPN, providing multiple options for secure remote access and site-to-site connectivity.
How many telephone lines can I connect?
The DR3650v has 2 × FXS (Foreign Exchange Station) ports, allowing you to connect 2 analogue telephone lines or devices simultaneously via integrated VoIP.
Is centralised management included?
Yes. The DR3650v integrates with TP-Link's Omada cloud management platform, allowing centralised monitoring, configuration, and maintenance across your network.
What warranty is provided?
The DR3650v comes with a 5-year manufacturer's warranty, providing extended protection and support.
