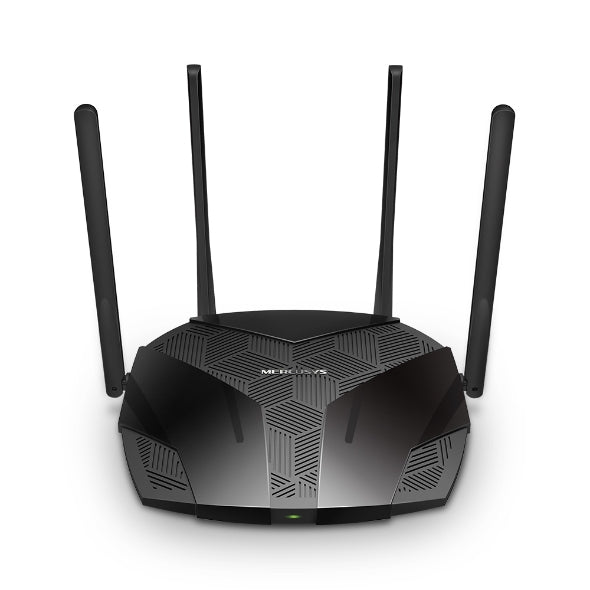

Mercusys MR70X AX1800 WiFi 6 Router
Mercusys MR70X AX1800 WiFi 6 Router
SKU:NWMS-MR70X
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWMS-MR70X |
| Availability | Out of Stock |
Overview
- The Mercusys MR70X is a modern WiFi 6 router built for homes and small offices that demand reliable, fast wireless connectivity. With combined speeds of 1.8 Gbps across dual bands, it handles multiple devices simultaneously thanks to OFDMA and MU-MIMO technology, ensuring each device receives dedicated bandwidth without performance degradation.
Equipped with four high-gain antennas and Beamforming, the MR70X delivers strong signals throughout your space, reducing dead zones and interference from neighbouring networks. WPA3 security provides the latest wireless encryption standard, protecting your network against evolving threats.
The router supports multiple connection types including Dynamic IP, Static IP, PPPoE, L2TP, and PPTP, with comprehensive firewall protection via SPI and NAT forwarding options. Smart Connect intelligently assigns devices to the optimal band, and Access Point Mode allows you to extend existing wired networks wirelessly. Eco-friendly Target Wake Time (TWT) technology reduces power consumption on mobile and IoT devices, making it efficient for modern smart homes.
Specifications
| WiFi Standard | 802.11ax (WiFi 6), 802.11ac, 802.11a, 802.11b, 802.11g, 802.11n |
|---|---|
| Frequency Bands | Dual-band (2.4 GHz and 5 GHz) |
| Maximum Signal Rate | 1.8 Gbps (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz) |
| Transmission Power 2.4 GHz | < 20 dBm (EIRP) |
| Transmission Power 5 GHz | < 23 dBm (EIRP) |
| Reception Sensitivity 11g 6Mbps | -96 dBm |
| Reception Sensitivity 11g 54Mbps | -78 dBm |
| Reception Sensitivity 11n HT40 MCS7 | -74 dBm |
| Reception Sensitivity 11n HT20 MCS7 | -77 dBm |
| Reception Sensitivity 11a 6Mbps | -94 dBm |
| Reception Sensitivity 11a 54Mbps | -76 dBm |
| Reception Sensitivity 11ac VHT20 MCS8 | -71 dBm |
| Reception Sensitivity 11ac VHT40 MCS8 | -68 dBm |
| Reception Sensitivity 11ac VHT80 MCS8 | -65 dBm |
| Antennas | 4 multi-directional high-gain antennas with Beamforming |
| Wireless Security | WPA-PSK, WPA2-PSK, WPA3 |
| Key Wireless Functions | Enable/Disable Wireless Radio, WMM, OFDMA, MU-MIMO, Smart Connect, BSS Colour |
| WAN Connection Types | Dynamic IP, Static IP, PPPoE, L2TP, PPTP |
| DHCP | Server and Client List |
| NAT Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
| Firewall Security | SPI Stateful Packet Inspection |
| Management | Local Management, Remote Management, Access Control |
| Special Features | Access Point Mode, Target Wake Time (TWT), Minimised WiFi Interference |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
What is WiFi 6 and how is it better than WiFi 5?
WiFi 6 (802.11ax) is the latest wireless standard offering faster speeds, greater capacity, and improved efficiency. The MR70X reaches 1.8 Gbps combined throughput and uses OFDMA and MU-MIMO to handle multiple devices simultaneously without performance loss, unlike older WiFi 5 routers.
Can the MR70X work as an access point?
Yes. The MR70X includes Access Point Mode, allowing you to connect it to an existing wired network and extend WiFi coverage wirelessly throughout your property.
What security features does the MR70X offer?
The MR70X features WPA3 wireless encryption (the latest standard), SPI firewall protection, port forwarding, DMZ support, and access control. These protect your network from unauthorised access and threats.
How many devices can the MR70X handle simultaneously?
OFDMA and MU-MIMO technology enable the MR70X to transmit data to multiple devices at once, significantly improving efficiency compared to older routers. The exact number depends on device types and usage patterns.
What are the coverage and antenna specifications?
The MR70X includes four multi-directional high-gain antennas with Beamforming technology. This configuration provides stable coverage throughout home and small office environments with reduced dead zones.
Does the MR70X support wired connections?
Yes. The MR70X includes Gigabit Ethernet ports for high-speed wired connections, allowing you to connect devices like gaming consoles, NAS systems, and desktop computers at full gigabit speeds.
What WAN connection types does it support?
The MR70X supports Dynamic IP, Static IP, PPPoE, L2TP, and PPTP connections, making it compatible with most Australian ISP configurations.
Is the MR70X energy-efficient?
Yes. Target Wake Time (TWT) technology reduces power consumption on mobile devices and IoT systems during data transmission, making it eco-friendly for modern smart home setups.
