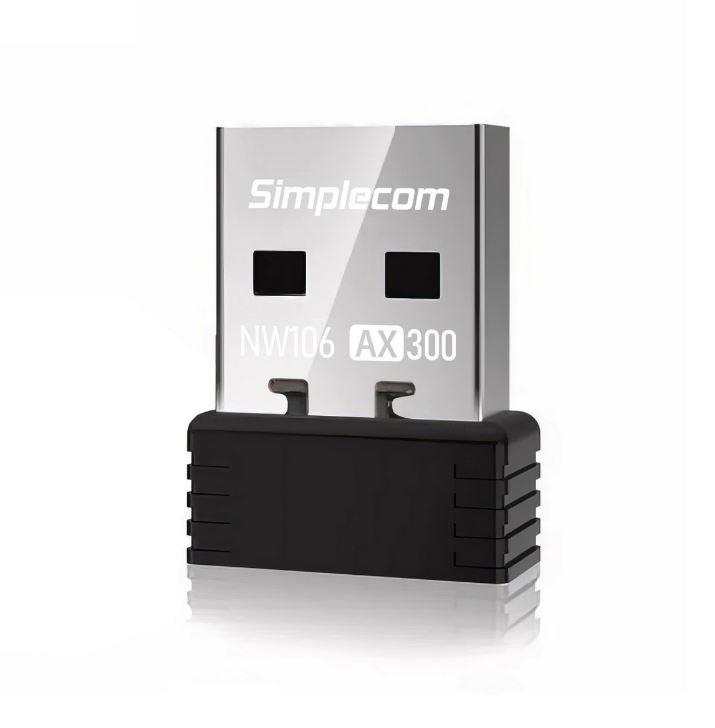

Simplecom NW106 AX300 Wi-Fi 6 USB Nano Adapter
Simplecom NW106 AX300 Wi-Fi 6 USB Nano Adapter
SKU:CBSI-NW106
The Simplecom NW106 is an ultra-compact Wi-Fi 6 USB adapter delivering up to 286Mbps on 2.4GHz. Featuring a nano form factor, on-board driver installation, and backward compatibility with 802.11b/g/n, it provides reliable wireless connectivity for laptops and PCs with minimal space impact.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | USB, Bluetooth & IEEE |
| SKU | CBSI-NW106 |
| Availability | In Stock |
Overview
- The Simplecom NW106 is a compact Wi-Fi 6 USB adapter designed for users who need reliable wireless connectivity without sacrificing space or convenience. Measuring just 20×15×6mm and protruding less than 1cm from a USB port, it fits seamlessly into tight configurations where traditional adapters would be problematic.
Delivering up to 286Mbps on the 2.4GHz band using Wi-Fi 6 technology, the NW106 offers improved signal stability and wider coverage compared to older 802.11n adapters. It maintains backward compatibility with legacy standards (802.11b/g/n), ensuring it works with existing network infrastructure.
Setup is straightforward thanks to on-board driver installation—there's no need to source external drivers or handle installation media. Windows 7, 10, and 11 are all supported. The adapter's durability and portability make it ideal for mobile professionals, travelling users, and anyone seeking a permanent but unobtrusive wireless solution.
Specifications
| Model | NW106 |
|---|---|
| Interface | USB 2.0 |
| Wireless Standards | IEEE 802.11b, 802.11g, 802.11n, 802.11ax |
| Frequency Band | 2.4GHz (single band) |
| Maximum Data Rate | 286Mbps (802.11ax) / 150Mbps (802.11n) |
| Transmit Power | 20dBm (EIRP) |
| Security Protocols | WEP, WPA, WPA2 |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–90% non-condensing |
| Supported Operating Systems | Windows 7, Windows 10, Windows 11 |
| Physical Dimensions | 20×15×6mm |
| Weight | 3g |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Does the NW106 support dual-band (2.4GHz and 5GHz)?
No. The NW106 is a single-band adapter supporting Wi-Fi 6 at 2.4GHz only. 5GHz is not supported.
Do I need to install drivers from a CD or download them separately?
No. The NW106 features on-board driver installation, so it works immediately without requiring external driver files or installation media.
What wireless standards does this adapter support?
The NW106 supports Wi-Fi 6 (802.11ax) and is backward compatible with 802.11b, 802.11g, and 802.11n standards.
Is the NW106 suitable for travel?
Yes. Its nano form factor and minimal protrusion (less than 1cm) make it ideal for portable use. You can leave it plugged in without worrying about damage from accidental contact.
What Windows versions are compatible with the NW106?
The adapter is compatible with Windows 7, Windows 10, and Windows 11.
What is the maximum data transfer rate?
The NW106 delivers up to 286Mbps using Wi-Fi 6 (802.11ax) at 2.4GHz, and up to 150Mbps with 802.11n.
Can I use this adapter in high-humidity environments?
The adapter is rated for operating humidity between 10–90% non-condensing, making it suitable for most standard office and home environments.
