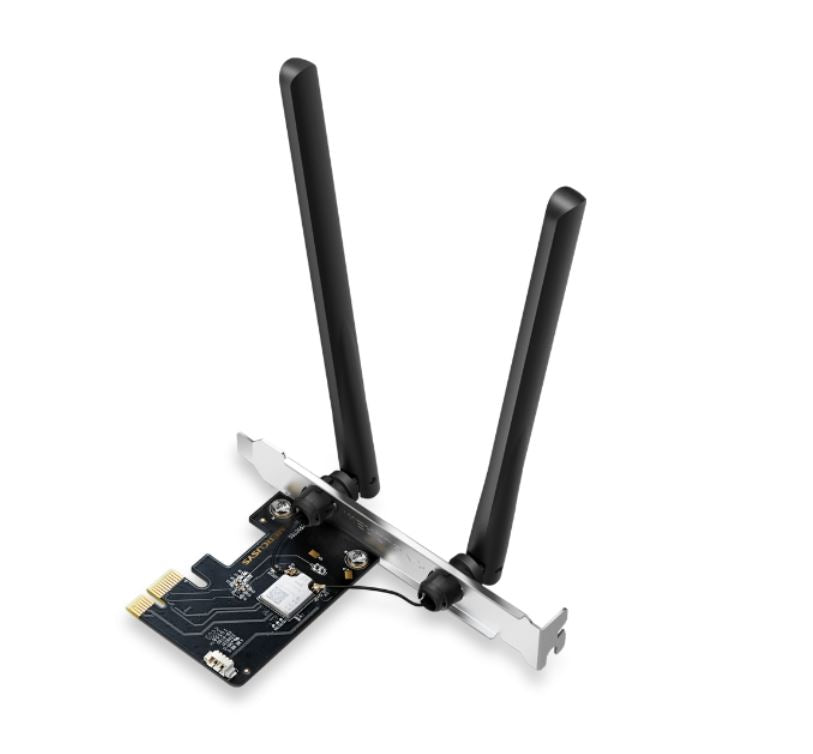

Mercusys MA86XE AXE5400 Wi-Fi 6E PCIe Adapter
Mercusys MA86XE AXE5400 Wi-Fi 6E PCIe Adapter
SKU:NWMS-MA86XE
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWMS-MA86XE |
| Availability | In Stock |
Overview
- The Mercusys MA86XE is an internal PCIe network adapter that brings Wi-Fi 6E connectivity to desktop computers. With tri-band support delivering combined speeds of up to 5.4 Gbps, this adapter utilises the latest Intel Wi-Fi 6E chipset to provide reliable, high-speed wireless performance across all three frequency bands.
The addition of the 6 GHz band offers a clearer, less congested path for data transmission, making this adapter ideal for bandwidth-intensive applications such as 4K streaming, large file transfers, and real-time collaboration. Integrated Bluetooth 5.2 support expands connectivity options for peripherals and mobile devices.
Designed for Windows systems, the MA86XE supports Windows 10 and 11 (64-bit), with full 6 GHz functionality available on Windows 11. WPA3 security enhancement ensures your wireless connection is protected with the latest encryption standards. With two high-performance antennas and backward compatibility with older Wi-Fi standards, this adapter provides a practical upgrade path for modern desktop environments.
Specifications
| Brand | Mercusys |
|---|---|
| Manufacturer | TP-LINK |
| Model | MA86XE |
| Product Type | PCIe Network Adapter |
| Wireless Standard | Wi-Fi 6E (802.11ax) |
| Supported Standards | 802.11ax/ac/a/b/g/n |
| Chipset | Intel Wi-Fi 6E |
| Speed (6 GHz) | 2402 Mbps |
| Speed (5 GHz) | 2402 Mbps |
| Speed (2.4 GHz) | 574 Mbps |
| Total Throughput | AXE5400 (5.4 Gbps combined) |
| Antennas | 2 high-performance antennas |
| Bluetooth | Bluetooth 5.2 |
| Security | WPA3 |
| Operating System | Windows 10, 11 (64-bit) |
| 6 GHz Support | Available on Windows 11 |
| Interface | PCIe |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
What is Wi-Fi 6E and how does it differ from Wi-Fi 6?
Wi-Fi 6E extends the Wi-Fi 6 standard by adding access to the 6 GHz frequency band in addition to the existing 2.4 GHz and 5 GHz bands. The 6 GHz band is wider and less congested, reducing interference and improving data transmission speeds and reliability.
Will this adapter work with my older Wi-Fi router?
Yes. The MA86XE supports backward compatibility with 802.11ax/ac/a/b/g/n standards, so it will work with older Wi-Fi 5 and Wi-Fi 6 routers. However, to utilise Wi-Fi 6E and the 6 GHz band, your router must also support Wi-Fi 6E.
Is the 6 GHz band available on Windows 10?
The adapter is compatible with Windows 10 (64-bit), but 6 GHz band support is only available on Windows 11. Windows 10 users will still benefit from tri-band connectivity on the 2.4 GHz and 5 GHz bands.
What is WPA3 and why does it matter?
WPA3 is the latest Wi-Fi security protocol that provides enhanced encryption and protection for personal password safety. It offers stronger protection against brute-force attacks and improves security on open networks compared to earlier WPA2 standards.
Can I use this adapter with Bluetooth devices?
Yes. The MA86XE includes Bluetooth 5.2, allowing you to connect wireless peripherals such as mice, keyboards, headsets, and other Bluetooth-enabled devices alongside your Wi-Fi connection.
What is the warranty period?
The Mercusys MA86XE comes with a 24-month warranty covering manufacturing defects and technical support.
