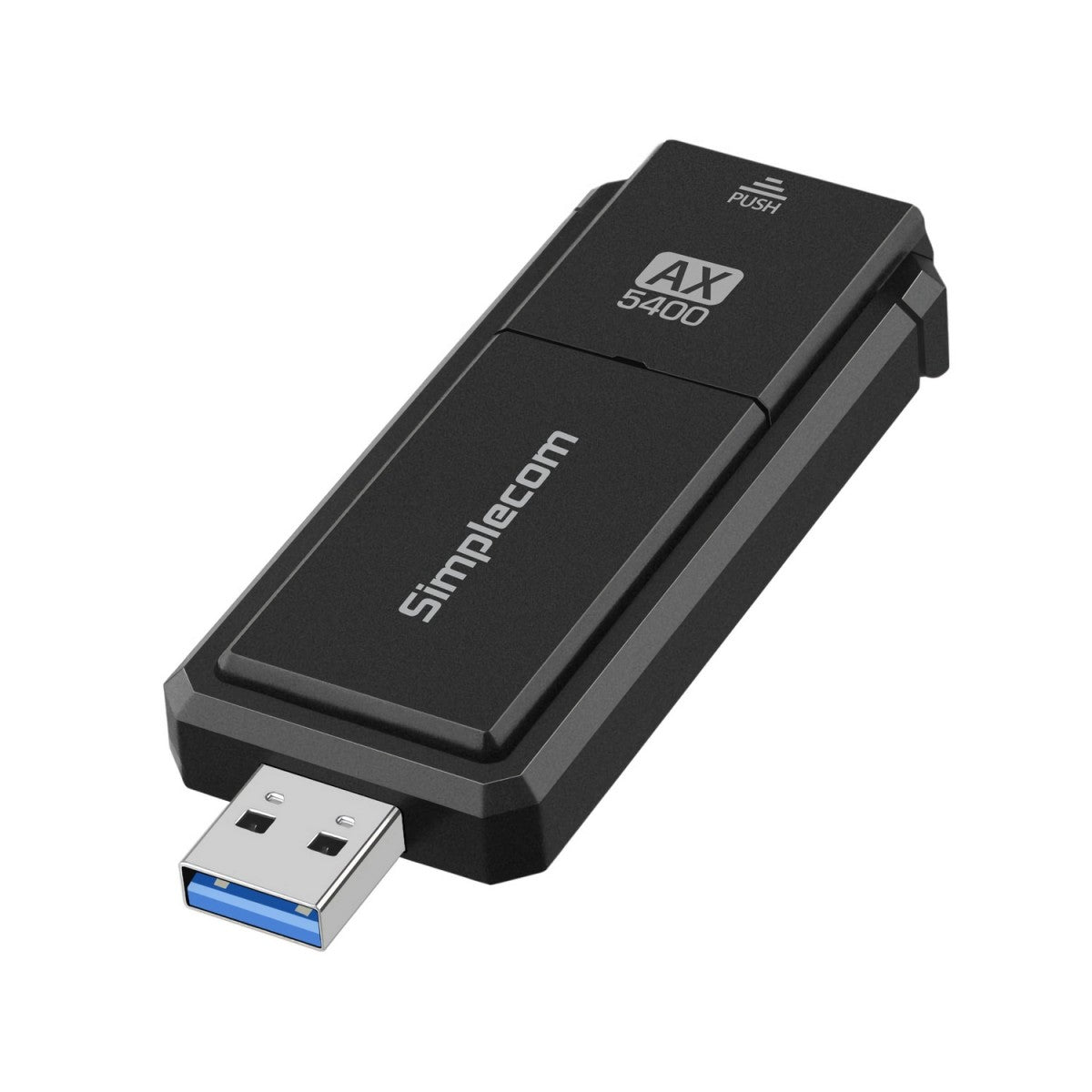

Simplecom NW812v2 AX5400 WiFi 6E USB Adapter
Simplecom NW812v2 AX5400 WiFi 6E USB Adapter
SKU:HXSI-NW812V2
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Network - Consumer |
| SKU | HXSI-NW812V2 |
| Availability | In Stock |
Overview
- The Simplecom NW812v2 is an AX5400 tri-band WiFi 6E USB adapter that brings next-generation wireless connectivity to your PC or laptop. It operates across three frequency bands (2.4GHz, 5GHz, and 6GHz), delivering speeds up to 2402 Mbps on the 5GHz and 6GHz bands, with an additional 574 Mbps available on 2.4GHz. This multi-band approach reduces congestion and improves performance in high-density network environments.
Equipped with advanced technologies including MU-MIMO, OFDMA, and beamforming, the NW812v2 optimises network efficiency while its foldable high-gain antenna ensures strong signal reception and flexible positioning. The USB 3.2 Gen 1 interface enables high-speed data transfers without bottlenecks.
Security is built-in with WPA3 support, protecting your network against modern wireless threats. The adapter is backwards compatible with existing WiFi routers and standards, making it a straightforward upgrade path. Installation is simple with plug-and-play compatibility and automatic driver support for Windows 10 and later systems.
Specifications
| Model | NW812v2 |
|---|---|
| Brand | Simplecom |
| Product Type | USB WiFi 6E Adapter |
| Interface | USB 3.2 Gen 1 (USB 3.0) |
| WiFi Standard | IEEE 802.11a/b/g/n/ac/ax (WiFi 6E) |
| Frequency Bands | Tri-band (2.4GHz, 5GHz, 6GHz) |
| Maximum Speed | 2402 Mbps (5GHz and 6GHz), 574 Mbps (2.4GHz) |
| Antenna | Foldable high-gain antenna |
| Technology | MU-MIMO, OFDMA, Beamforming |
| Security | WPA-PSK, WPA2-PSK, WPA, WPA2, WPA3 |
| Operating Temperature | 0–50°C |
| Operating Humidity | 10–90% (non-condensing) |
| Dimensions | 85 × 32 × 14 mm |
| Weight | 22 g |
| System Requirements | Windows 10 and later |
| Warranty | 12 months |
| Package Contents | USB adapter, user manual |
Key Features
Ideal For
FAQs
What is WiFi 6E and how does it differ from WiFi 6?
WiFi 6E extends WiFi 6 capabilities into the 6GHz frequency band, providing additional spectrum and reduced congestion. The NW812v2 operates across three bands (2.4GHz, 5GHz, and 6GHz) to maximise performance and reduce latency compared to standard WiFi 6.
Will the Simplecom NW812v2 work with my older WiFi router?
Yes. The NW812v2 is fully backwards compatible with previous WiFi standards including WiFi 4, WiFi 5, and earlier. It will work with any existing WiFi router.
What are MU-MIMO and OFDMA, and why do they matter?
MU-MIMO (Multi-User MIMO) allows the adapter to communicate with multiple devices simultaneously, whilst OFDMA (Orthogonal Frequency-Division Multiple Access) divides bandwidth more efficiently. Together, they reduce lag and improve performance in high-density network environments.
Is installation difficult?
No. The NW812v2 features plug-and-play installation with built-in drivers for Windows 10 and later. Simply connect it to a USB port and it will install automatically.
What is WPA3 and why is it important?
WPA3 is the latest WiFi security standard that provides enhanced protection against modern wireless attacks and threats. It protects both enterprise networks and home users with improved encryption and authentication methods.
Can the antenna be adjusted?
Yes. The NW812v2 features a foldable high-gain antenna that can be repositioned for optimal signal reception and flexible placement.
What operating systems does the NW812v2 support?
The adapter supports Windows 10 and later operating systems.
