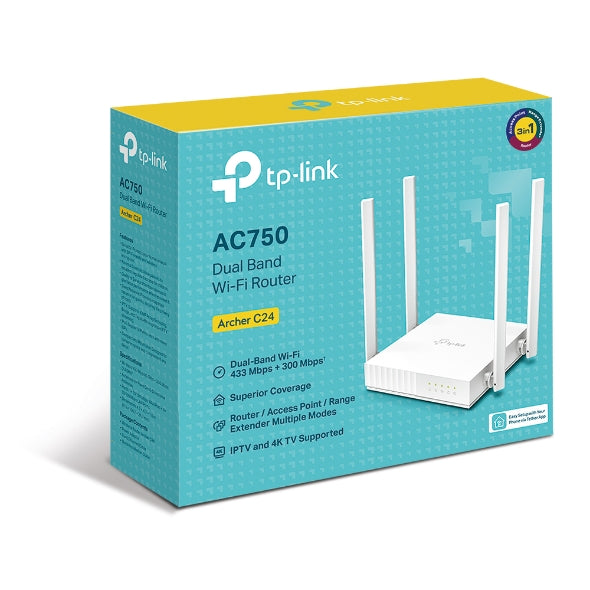

TP-Link Archer C24 AC750 Dual-Band Wi-Fi Router
TP-Link Archer C24 AC750 Dual-Band Wi-Fi Router
SKU:NWTL-ARCHERC24
The TP-Link Archer C24 is an AC750 dual-band Wi-Fi router designed for small to medium homes and offices. Featuring four fixed antennas, triple-mode flexibility, and comprehensive parental controls, it delivers reliable coverage and easy network management for small business and home users.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-ARCHERC24 |
| Availability | In Stock |
Overview
- The TP-Link Archer C24 is a compact yet capable dual-band Wi-Fi router suited for small residential and business environments. With AC750 speeds and four fixed antennas, it provides solid coverage for typical 2-bedroom properties and small offices. The router supports three operational modes—Router, Access Point, and Range Extender—giving you flexibility to expand or reconfigure your network as needs change.
Security and management features include WPA2 encryption, SPI firewall protection, IP and MAC binding, and dual guest networks for keeping visitor traffic separate from your main network. Parental controls allow administrators to manage device internet access by time and schedule. The router is optimised for IPTV and HD video streaming through IGMP Proxy support, making it suitable for homes and businesses that rely on video content delivery.
Designed for straightforward deployment, the Archer C24 requires minimal configuration for basic operation while offering advanced options for IT professionals. Its compact, mountable form factor suits both desktop and wall-mounted installation without consuming significant space.
Specifications
| Wi-Fi Standard | IEEE 802.11ac/n/a (5GHz), IEEE 802.11n/b/g (2.4GHz) |
|---|---|
| Wi-Fi Speed | AC750 (433 Mbps @ 5GHz, 300 Mbps @ 2.4GHz) |
| Band Configuration | Dual-band with device allocation |
| Antennas | 4× fixed external antennas |
| Coverage | 2-bedroom houses |
| Operating Modes | Router, Access Point, Range Extender |
| Ethernet Ports | 1× WAN (10/100 Mbps), 4× LAN (10/100 Mbps) |
| Processor | Single-core CPU |
| Power Input | 5V ⎓ 0.6A |
| Dimensions | 115 × 106.7 × 24.3 mm (W×D×H) |
| Wi-Fi Encryption | WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x) |
| Security Features | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway |
| Guest Networks | 1× per band (5GHz and 2.4GHz) |
| Parental Controls | Yes |
| IPv6 Support | Yes |
| IPTV Support | IGMP Proxy/Snooping, Bridge and Tag VLAN |
| Warranty | 36 months |
| Reception Sensitivity (5GHz) | 802.11a 54M: −76 dBm, 802.11ac VHT20 MCS8: −71 dBm, 802.11ac VHT40 MCS9: −66 dBm, 802.11ac VHT80 MCS9: −62 dBm |
| Reception Sensitivity (2.4GHz) | 802.11g 54M: −76 dBm, 802.11n HT20 MCS7: −73 dBm, 802.11n HT40 MCS7: −71 dBm |
Key Features
Ideal For
FAQs
What is the difference between Router, Access Point, and Range Extender modes?
Router mode connects directly to your modem and distributes internet to connected devices. Access Point mode extends an existing network without acting as a router. Range Extender mode boosts an existing Wi-Fi signal to cover dead zones. All three modes are supported on the Archer C24.
Can I use both 5GHz and 2.4GHz bands simultaneously?
Yes. The Archer C24 is a true dual-band router, allowing simultaneous operation on both 5GHz and 2.4GHz bands. You can allocate devices to different bands for optimal performance.
What coverage area does the Archer C24 provide?
The Archer C24 is designed for 2-bedroom houses. Coverage depends on building materials, obstacles, and interference. The four fixed antennas are optimised to deliver consistent signal in typical residential environments.
Does the router support guest networks?
Yes. The Archer C24 provides one guest network for each band (5GHz and 2.4GHz), allowing visitors to access the internet without accessing your main network or files.
What security features are included?
Security includes WPA2 encryption, SPI firewall, IP and MAC binding, access control, and Application Layer Gateway protection. The router also supports WPA/WPA2-Enterprise (802.1x) for business deployments.
Is the Archer C24 suitable for IPTV and streaming?
Yes. The router includes IGMP Proxy/Snooping, Bridge, and Tag VLAN support optimised for IPTV and HD video streaming performance.
What is the warranty period?
The TP-Link Archer C24 comes with a 36-month warranty.
Can I control internet access for specific devices?
Yes. The Archer C24 includes parental controls that allow you to manage when and how connected devices can access the internet by schedule and access level.
