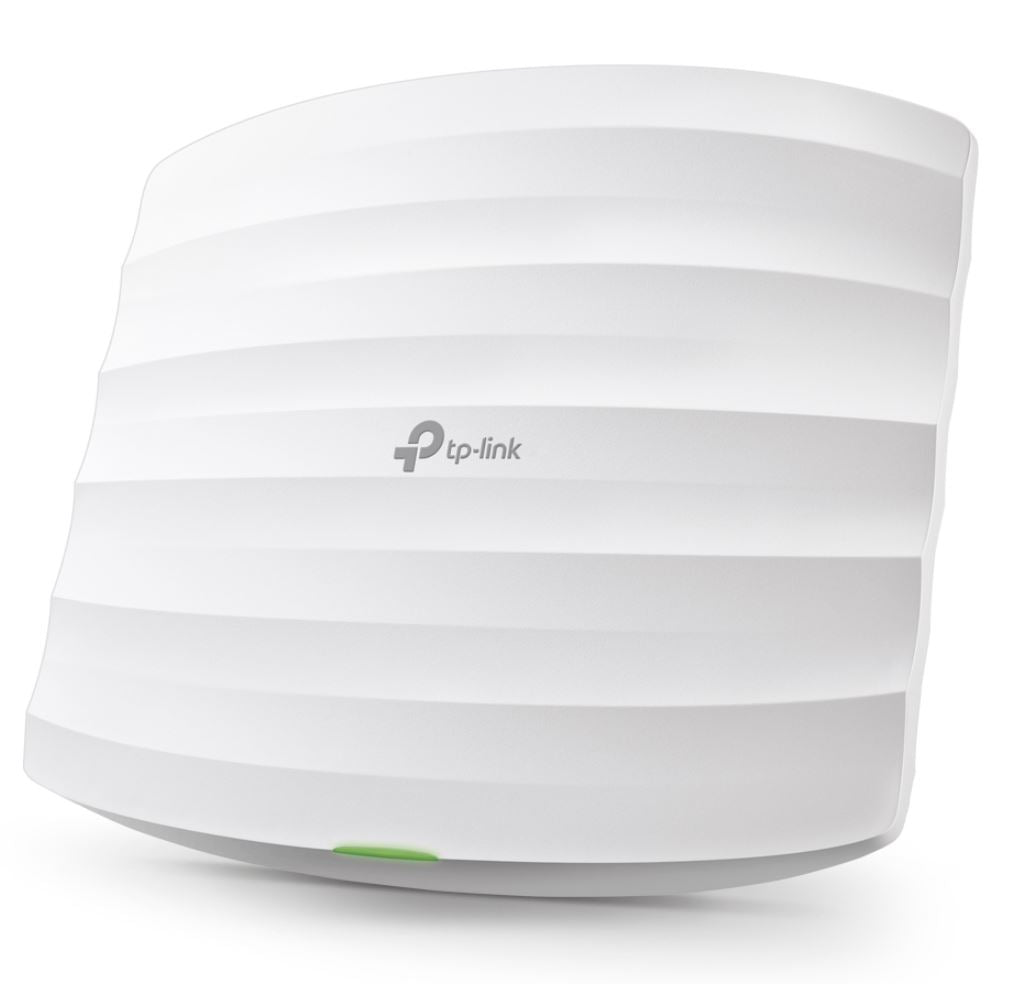

TP-Link EAP223 Omada AC1350 Wireless Access Point
TP-Link EAP223 Omada AC1350 Wireless Access Point
SKU:NWTL-EAP223
The TP-Link EAP223 is an AC1350 ceiling-mount access point designed for medium to large office environments. Featuring dual-band Wi-Fi, MU-MIMO technology, and centralized Omada cloud management, it delivers seamless connectivity and simplified network administration for growing businesses.
Couldn't load pickup availability
- See our return policy
- 60 months (5 years) Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-EAP223 |
| Availability | In Stock |
Overview
- The TP-Link EAP223 is a professional-grade AC1350 access point designed for businesses that need robust, managed Wi-Fi coverage. Built on the Omada Software-Defined Networking platform, it provides centralised cloud-based management, Zero-Touch Provisioning, and intelligent monitoring across multiple access points—ideal for scaling your network without increasing administrative overhead.
Dual-band performance delivers simultaneous 450 Mbps and 867 Mbps speeds, while MU-MIMO, Band Steering, and Beamforming optimise network efficiency for multiple connected devices. The access point supports seamless roaming, ensuring that video conferences and voice calls remain uninterrupted as users move between coverage areas.
With PoE power support (802.3af/at and Passive PoE), the EAP223 simplifies installation in ceiling-mount configurations. Built-in security features include guest network isolation, SMS/Facebook Wi-Fi authentication, voucher-based access, and comprehensive wireless encryption—essential for organisations managing both corporate and visitor traffic.
The 5-year warranty reflects TP-Link's confidence in this product's durability and performance in business environments.
Specifications
| Brand | TP-Link |
|---|---|
| Model | EAP223 |
| Product Type | Wireless Access Point |
| Wi-Fi Standard | 802.11ac (AC1350) |
| 2.4 GHz Performance | 450 Mbps |
| 5 GHz Performance | 867 Mbps |
| Total Wi-Fi Speed | 1317 Mbps |
| Bands | Dual-band (2.4 GHz and 5 GHz) |
| MIMO | MU-MIMO |
| Antenna Type | Internal |
| Interface | 1x Gigabit Ethernet |
| Power Supply | PoE (802.3af/at) or Passive PoE |
| Mounting | Ceiling mount |
| Management | Omada SDN cloud-based, Zero-Touch Provisioning, mobile app |
| Security Features | Guest network, SMS/Facebook Wi-Fi authentication, voucher authentication, wireless encryption |
| Advanced Features | Band Steering, Airtime Fairness, Beamforming, seamless roaming |
| Warranty | 60 months (5 years) |
Key Features
Ideal For
FAQs
What is the difference between the 2.4 GHz and 5 GHz bands?
The 2.4 GHz band offers better range and wall penetration, delivering 450 Mbps on the EAP223. The 5 GHz band provides faster speeds (867 Mbps) with less interference but shorter range. MU-MIMO and Band Steering automatically optimise device placement across both bands for best performance.
Does the EAP223 require a PoE injector?
The EAP223 supports standard PoE (802.3af/at) and Passive PoE. If your network switch includes PoE ports, no separate injector is needed. For Passive PoE, a PoE adapter is required (not included). Check your infrastructure before purchasing.
Can I manage multiple EAP223 access points from one location?
Yes. The EAP223 integrates into TP-Link's Omada SDN platform, which provides centralised cloud-based management. You can monitor, configure, and troubleshoot multiple access points remotely via the Omada controller or mobile app.
What is Zero-Touch Provisioning (ZTP)?
ZTP allows new access points to automatically discover and join your Omada network without manual configuration. This significantly reduces deployment time and simplifies scaling your Wi-Fi infrastructure.
Is guest network access supported?
Yes. The EAP223 includes a dedicated guest network with multiple authentication methods including SMS, Facebook Wi-Fi login, and voucher codes. Guest traffic is isolated from corporate networks for security and compliance.
What does seamless roaming mean?
Seamless roaming allows users to move between access points without dropping calls or interrupting video streams. The EAP223 automatically connects to the strongest access point as users move through your facility.
What security features are included?
The EAP223 offers WPA/WPA2/WPA3 encryption, MAC filtering, guest network isolation, and multiple authentication options (SMS, Facebook Wi-Fi, voucher). These features protect both corporate and guest networks.
What warranty does TP-Link provide?
The EAP223 includes a 5-year (60-month) warranty, reflecting TP-Link's confidence in the product's reliability for business environments.
