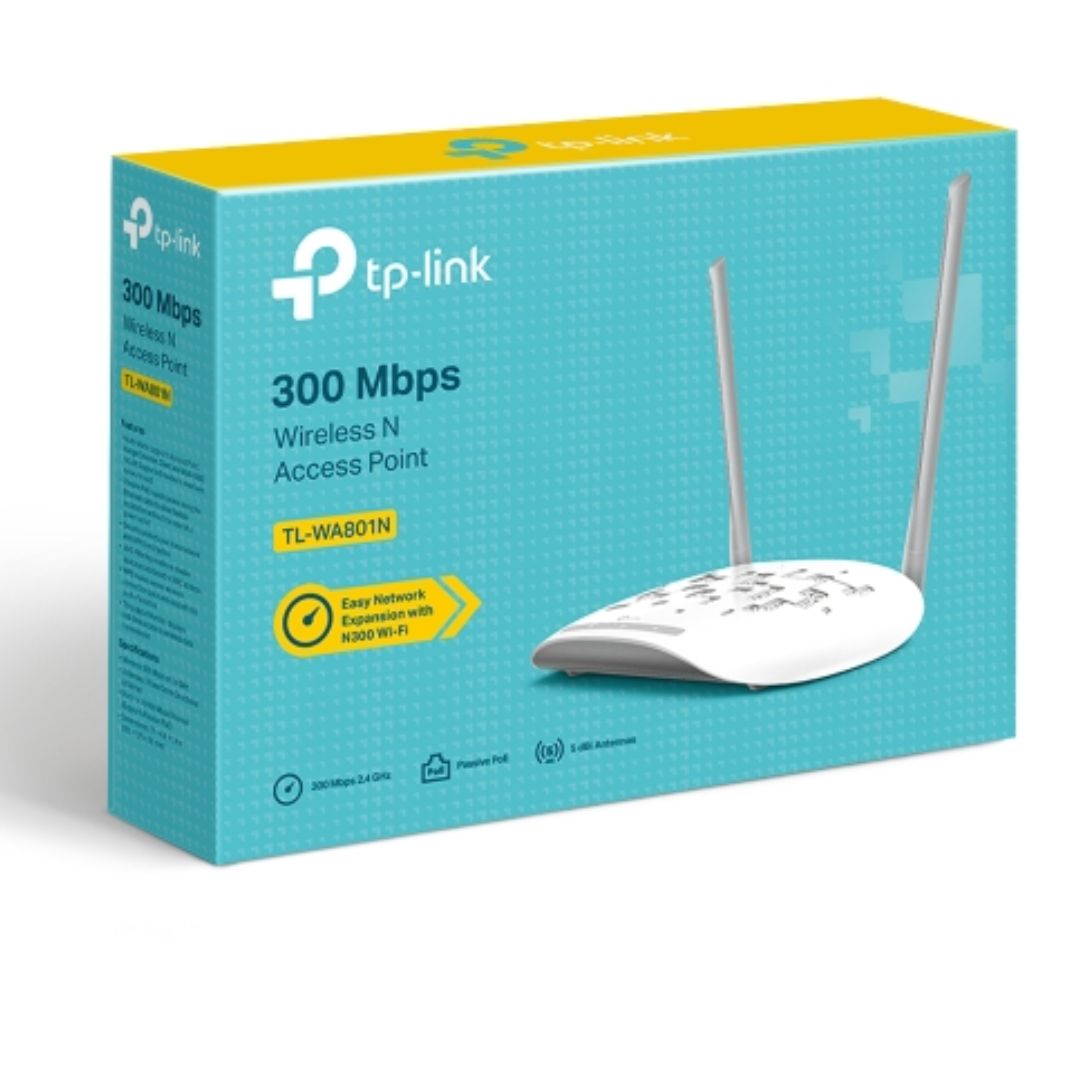

TP-Link TL-WA801N 300Mbps Wireless N Access Point
TP-Link TL-WA801N 300Mbps Wireless N Access Point
SKU:NWTL-WA801N
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-WA801N |
| Availability | In Stock |
Overview
- The TP-Link TL-WA801N is a compact 300Mbps wireless access point built for flexible network deployment. With support for access point, client, range extender, and multi-SSID modes, it adapts to various business networking scenarios. The included passive PoE injector eliminates the need for separate power supplies, enabling deployment up to 30 metres from your power source—ideal for remote offices, warehouses, or outdoor installations.
Security is built in with WPA2 encryption, WPS one-button setup, and multiple wireless security protocols. The device operates on the 2.4 GHz band with 802.11n, 802.11g, and 802.11b standards, making it compatible with most existing network equipment. With fixed omni-directional antennas and a durable design rated for Australian environments, this access point provides reliable performance across a range of business applications.
Supported by a comprehensive 3-year warranty and backed by CE/FCC certifications, the TL-WA801N is a practical choice for businesses seeking straightforward network extension without complex power infrastructure.
Specifications
| Wireless Standard | IEEE 802.11n, 802.11g, 802.11b |
|---|---|
| Frequency Band | 2.4 GHz |
| Signal Rate | 300 Mbps |
| Transmission Power | CE: <15 dBm; FCC: <20 dBm |
| Reception Sensitivity | 11g 6Mbps: -90dBm | 11g 54Mbps: -77dBm | 11n HT20 MC7: -73dBm | 11n HT40 MC7: -70dBm |
| Antenna | 2 Fixed Omni-Directional Antennas |
| Ethernet Port | 1× 10/100M (RJ45) with Passive PoE Support |
| Wireless Modes | Access Point, Multi-SSID, Client, Range Extender |
| Wireless Security | WEP, WPA/WPA2, WPA/WPA2-PSK |
| Quality of Service | WMM |
| Management | SNMP |
| Power Supply | 9VDC / 0.6A external adapter |
| PoE Support | Passive PoE up to 30 metres |
| Buttons | Power On/Off, WPS, Reset |
| Dimensions | 181.6 × 129.5 × 36.2 mm (7.1 × 5.1 × 1.4 in) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH |
| Certifications | CE, FCC, RoHS |
| Warranty | 36 months |
| Package Contents | Access Point, Power Adapter, Passive PoE Injector, Ethernet Cable, Quick Installation Guide |
Key Features
Ideal For
FAQs
Does the TL-WA801N require a separate power supply?
No. The TL-WA801N includes a passive PoE injector, allowing you to power the device via the Ethernet cable up to 30 metres away. A standard 9VDC power adapter is also included for direct connection.
What wireless modes does this access point support?
The TL-WA801N supports Access Point, Multi-SSID, Client, and Range Extender modes, giving you flexibility to deploy it in various network configurations.
Is the TL-WA801N suitable for outdoor use?
The device is rated for operating temperatures of 0°C to 40°C and humidity of 10% to 90% RH, making it suitable for most indoor and sheltered outdoor deployments in Australian conditions.
What security options are available?
The access point supports WEP, WPA/WPA2, and WPA/WPA2-PSK encryption protocols. WPS button enables quick secure connections, and all wireless functions can be managed via SNMP.
What is the warranty period?
The TL-WA801N comes with a 3-year warranty, providing peace of mind for business deployments.
Can I use this as a wireless extender?
Yes. The Range Extender mode allows you to extend your existing wireless network coverage to areas with weak signal.
What browser and system requirements are needed for management?
You will need Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, Mac OS, NetWare, UNIX, or Linux, along with a Java-enabled browser (Internet Explorer 11, Firefox, Chrome, Safari, or equivalent).
