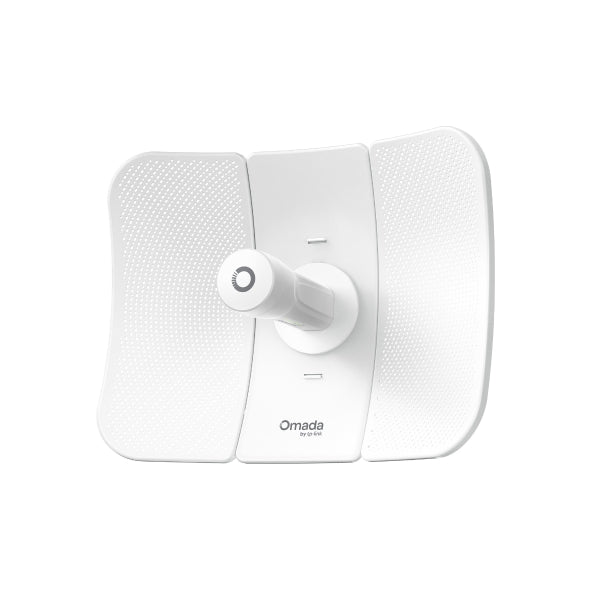

TP-Link Beam Bridge 5 UR KIT 5GHz Wireless Bridge
TP-Link Beam Bridge 5 UR KIT 5GHz Wireless Bridge
SKU:NWTL-BEAMBRIDGE5URKIT
The TP-Link Beam Bridge 5 UR KIT is a business-grade wireless bridge designed for long-distance point-to-point connectivity. Featuring ultra-range transmission up to 15 km, plug-and-play configuration, and IP65 weatherproof durability, it delivers reliable connectivity for remote site links and campus networks.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-BEAMBRIDGE5URKIT |
| Availability | In Stock |
Overview
- The TP-Link Beam Bridge 5 UR KIT is a business-grade wireless bridge engineered for point-to-point connectivity over extended distances. With transmission range up to 15 km, it eliminates the need for expensive fibre installation between buildings and sites. The preconfigured kit pairs instantly out of the box, reducing deployment time and complexity.
Durability is built in. The IP65 weatherproof enclosure, 6 kV lightning protection, and wide operating temperature range (-40°C to +70°C) make it suitable for outdoor installations in Australian climates. PoE power simplifies wiring and lowers infrastructure costs, while app-guided alignment ensures optimal antenna positioning even for first-time installers.
Management flexibility is a key strength. The bridges work standalone or integrate into the Omada SDN controller for centralised monitoring and remote management across multiple sites. This makes it ideal for growing businesses needing reliable inter-site connectivity without the complexity or cost of traditional networking solutions.
Specifications
| Brand | TP-Link |
|---|---|
| Model | Beam Bridge 5 UR KIT |
| Product Type | Wireless Bridge |
| Frequency Band | 5 GHz |
| Data Rate | 867 Mbps |
| Maximum Range | 15 km (9.3 miles) |
| Antenna Type | 23 dBi high-gain directional antennas |
| Ethernet Port | 1× Gigabit PoE port |
| PoE Support | 802.3af and Passive PoE |
| Enclosure Rating | IP65 weatherproof |
| Lightning Protection | 6 kV surge protection |
| Operating Temperature | -40°C to +70°C |
| Management | Standalone mode or Omada SDN (Web UI and mobile app) |
| Configuration | Preconfigured plug-and-play with auto-pairing |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
How far can the Beam Bridge 5 UR KIT transmit?
The kit supports wireless transmission up to 15 km (9.3 miles) in optimal conditions, thanks to the 23 dBi high-gain directional antennas. Actual range depends on line-of-sight, antenna alignment, and environmental interference.
Is this a preconfigured kit, or do I need to configure it myself?
The kit comes preconfigured for instant point-to-point pairing. It delivers connectivity right out of the box with auto-pairing functionality, though the app-guided alignment tool helps optimise antenna positioning for best performance.
What power supply does it require?
The Beam Bridge 5 UR KIT uses a single Gigabit PoE port that supports both standard 802.3af PoE and Passive PoE, simplifying power delivery over a single Ethernet cable.
Can it survive Australian outdoor conditions?
Yes. The IP65 weatherproof enclosure, 6 kV lightning protection, and operating range of -40°C to +70°C make it suitable for harsh outdoor environments including heat, cold, rain, and electrical storms.
Does it support remote management?
Yes. The bridge works standalone or integrates with the TP-Link Omada SDN controller for centralised remote management, monitoring, and configuration via Web UI or mobile app.
What warranty does it include?
The Beam Bridge 5 UR KIT includes a 3-year (36-month) manufacturer warranty.
Is this suitable for connecting remote office sites?
Yes. The ultra-range capability, plug-and-play setup, and robust outdoor design make it ideal for bridging networks between remote offices, warehouses, and distributed facilities without requiring fibre installation.
