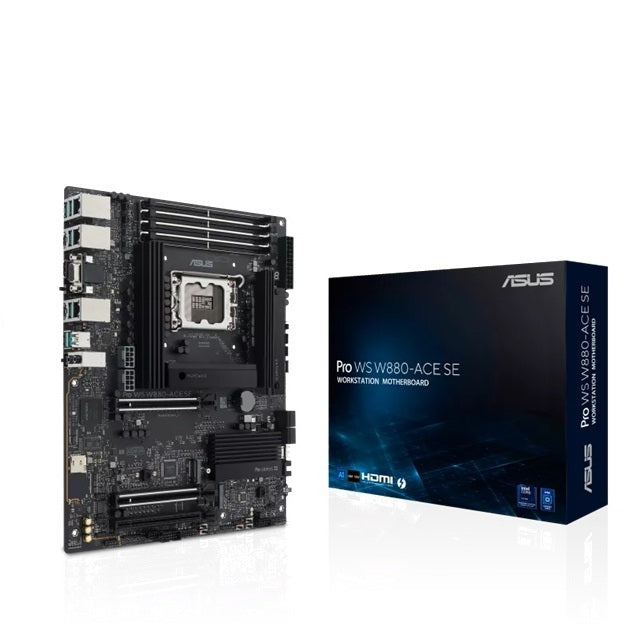

ASUS Pro WS W880-ACE SE Workstation Motherboard
ASUS Pro WS W880-ACE SE Workstation Motherboard
SKU:MBA-W880-ACE-SEP-PRO-WS
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-W880-ACE-SEP-PRO-WS |
| Availability | In Stock |
Overview
- The ASUS Pro WS W880-ACE SE is engineered for professional workstation users who demand maximum performance and reliability. Built on the Intel W880 chipset, it delivers cutting-edge connectivity with PCIe 5.0 and Thunderbolt 4, enabling lightning-fast data transfer and multi-monitor setups at 8K resolution.
Designed for dual graphics card configurations, this motherboard excels in content creation, AI development, and deep learning applications. The support for up to 256GB of DDR5 ECC memory ensures data integrity and stability during intensive computational tasks, while the dual 2.5Gb Ethernet ports provide redundancy and network performance for bandwidth-hungry workflows.
With IPMI/BMC readiness, remote management capabilities, and comprehensive I/O including 4 M.2 NVMe slots and 8 SATA ports, the W880-ACE SE provides the flexibility and control expected in professional environments. The 3-year warranty demonstrates ASUS's commitment to reliability for mission-critical workstations.
Specifications
| Model | Pro WS W880-ACE SE |
|---|---|
| Chipset | Intel W880 |
| CPU Socket | LGA1851 |
| Supported Processors | Intel Core Ultra Processors (Series 2) |
| Processor Features | Intel Turbo Boost Technology 2.0 and 3.0 |
| Memory Slots | 4 x DIMM |
| Maximum Memory | 256GB DDR5 |
| Memory Support | ECC and non-ECC un-buffered, CUDIMM, up to 9066+ MT/s (OC) |
| Memory Architecture | Dual channel |
| Memory Features | XMP, AEMP III, DIMM Fit, DIMM Flex support |
| PCIe Slots | 2 x PCIe 5.0 x16 (x16 or x8/x8 modes), 1 x PCIe 4.0 x16 (x4 mode) |
| M.2 Slots | 4 total (M.2_1: PCIe 5.0 x4; M.2_2, M.2_3, M.2_4: PCIe 4.0 x4) |
| M.2 Form Factors | 2242, 2260, 2280 |
| SATA Ports | 8 x SATA 6Gb/s |
| SlimSAS Connector | 1 x PCIe 4.0 x4 or 4 SATA devices via adapter |
| Video Outputs | 1 x HDMI (4K@60Hz), 1 x Thunderbolt 4 (8K@60Hz with DSC), 1 x VGA |
| Thunderbolt 4 | USB Type-C, supports DisplayPort and video, up to 23.8Gbps bandwidth |
| Ethernet Ports | 2 x Intel 2.5Gb Ethernet, 1 x Realtek 1Gb Ethernet (AST2600 management) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS (text-based) |
| Management Features | WOL by PME, PXE, IPMI/BMC ready |
| Form Factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm (12 inch x 9.6 inch) |
| Operating Systems | Windows 11 (22H2 and later), Windows 10 64-bit (21H2 and later) |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What processors does the ASUS Pro WS W880-ACE SE support?
The W880-ACE SE supports Intel Core Ultra Processors (Series 2) with LGA1851 socket. Intel Turbo Boost Technology 2.0 and 3.0 are supported. Refer to ASUS's CPU support list for specific processor compatibility.
Can I use this motherboard with non-ECC memory?
Yes. The W880-ACE SE supports both ECC and non-ECC DDR5 memory. Non-ECC un-buffered DDR5 memory benefits from On-Die ECC function for additional data protection.
What is the maximum memory capacity?
The W880-ACE SE supports up to 256GB of DDR5 memory across 4 DIMM slots. It supports speeds up to 9066+ MT/s when overclocked, and is compatible with XMP and AEMP III profiles.
How many graphics cards can I install?
The motherboard is engineered to support dual graphics cards, making it ideal for workloads requiring multiple GPUs such as content creation, AI, and deep learning applications.
What storage options are available?
The W880-ACE SE provides 4 x M.2 NVMe slots (supporting PCIe 5.0 and 4.0), 8 x SATA 6Gb/s ports, and 1 x SlimSAS connector for additional storage expansion via adapter cable.
Does this motherboard support Thunderbolt 4?
Yes. It features 1 x Thunderbolt 4 port (USB Type-C) supporting DisplayPort and Thunderbolt video outputs at up to 8K@60Hz with DSC, with maximum bandwidth of 23.8Gbps.
What management features are included?
The W880-ACE SE is IPMI/BMC ready for remote management. It includes Wake-on-LAN (WOL) by PME and PXE boot support, plus a dedicated 1Gb Ethernet port for management traffic.
What is the warranty period?
The ASUS Pro WS W880-ACE SE includes a 36-month manufacturer warranty, providing comprehensive coverage for professional workstation environments.
