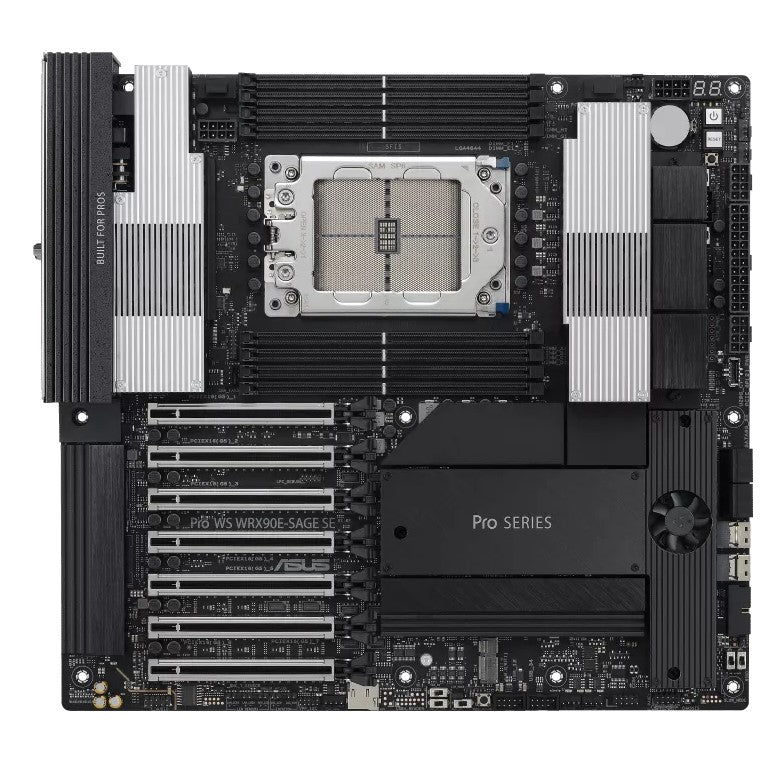

ASUS PRO WS WRX90E-SAGE SE Workstation Motherboard
ASUS PRO WS WRX90E-SAGE SE Workstation Motherboard
SKU:MBA-WRX90E-SAGE-SE-P
The ASUS PRO WS WRX90E-SAGE SE is an EEB workstation motherboard designed for multi-GPU computing and high-core-count processors. Featuring seven PCIe 5.0 x16 slots, dual 10 Gb LAN, four M.2 slots, and robust power delivery, it delivers enterprise-grade stability for professional workstations and GPU-accelerated applications.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-WRX90E-SAGE-SE-P |
| Availability | Out of Stock |
Overview
- The ASUS PRO WS WRX90E-SAGE SE is a premium EEB workstation motherboard built for demanding professional applications. With seven PCIe 5.0 x16 slots, it supports multiple GPUs, high-speed storage, and expansion cards simultaneously. The AMD sTR5 socket accommodates up to 96-core Threadripper PRO 7000 WX processors, delivering exceptional parallel processing capability.
The motherboard features a robust 32+3+3+3 power stage design with active thermal management across VRM, chipset, and M.2 heatsinks. Support for up to 2 TB ECC R-DIMM DDR5 memory ensures data integrity in mission-critical workloads. Dual 10 Gb LAN ports enable high-bandwidth networking for collaborative environments.
Built for 24/7 operation, the WRX90E-SAGE SE includes server-grade IPMI remote management with an onboard AST2600 BMC controller, enabling hardware-level monitoring and control via dedicated management LAN. ASUS Control Center Express software provides real-time system monitoring. The extensive QVL (Qualified Vendor List) and rigorous testing ensure compatibility with latest technologies and maximum uptime.
The PCIe Q-Release Slim mechanism allows tool-free GPU removal, simplifying maintenance and upgrades in professional environments.
Specifications
| Motherboard Form Factor | EEB (Extended ATX) |
|---|---|
| CPU Socket | AMD sTR5 |
| Supported Processors | AMD Ryzen Threadripper PRO 7000 WX-Series (up to 96-core) |
| PCIe Slots | 7x PCIe 5.0 x16 slots |
| Memory Support | Up to 2 TB ECC R-DIMM DDR5 (1DPC) |
| M.2 Slots | 4x PCIe 5.0 M.2 slots |
| Storage Connectors | 2x SlimSAS ports, 4x SATA ports |
| LAN Ports | 2x 10 Gb Ethernet ports |
| USB Rear Connectivity | 2x USB4 40 Gbps Type-C ports |
| Power Stages | 32+3+3+3 design |
| CPU Power Connectors | 2x 8-pin connectors |
| Remote Management | IPMI with AST2600 BMC controller |
| GPU Support | Multi-GPU configuration supported |
| Overclocking | CPU and memory overclocking ready |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What processors are compatible with the ASUS WRX90E-SAGE SE?
This motherboard supports AMD Ryzen Threadripper PRO 7000 WX-Series processors up to 96 cores via the AMD sTR5 socket. Refer to the extensive QVL list for complete compatibility details.
How many GPUs can this motherboard support?
With seven PCIe 5.0 x16 slots, the motherboard supports multiple GPUs simultaneously. Exact GPU count depends on your system configuration and power supply capacity.
What is the maximum memory capacity?
The WRX90E-SAGE SE supports up to 2 TB of ECC R-DIMM DDR5 memory in a single DIMM per channel (1DPC) configuration, ensuring data integrity for professional workloads.
Does this motherboard include remote management capabilities?
Yes, the motherboard features server-grade IPMI remote management with an onboard AST2600 BMC controller and dedicated management LAN port. ASUS Control Center Express software provides real-time monitoring and hardware-level control.
What storage connectivity options are available?
The motherboard includes four PCIe 5.0 M.2 slots, two SlimSAS ports for NVMe drives, and four SATA ports for traditional storage devices.
Is this motherboard suitable for 24/7 operation?
Yes, the WRX90E-SAGE SE is validated and tested for continuous 24/7 operation. Its robust power design, active thermal management, and enterprise-grade components ensure stability in demanding professional environments.
What networking capabilities does this motherboard offer?
The motherboard features dual 10 Gb Ethernet LAN ports for high-speed networking, plus two USB4 40 Gbps Type-C ports for ultrafast connectivity.
