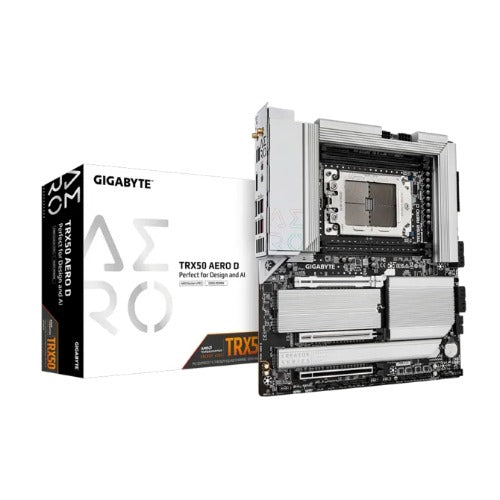

Gigabyte TRX50 AERO D AMD Ryzen Threadripper Motherboard
Gigabyte TRX50 AERO D AMD Ryzen Threadripper Motherboard
SKU:MBG-TRX50AEROD
The Gigabyte TRX50 AERO D is a high-performance workstation motherboard supporting AMD Ryzen Threadripper PRO and 7000 Series processors. With quad-channel DDR5 memory up to 1TB capacity, PCIe 5.0 expansion, Wi-Fi 7, and comprehensive I/O, it delivers exceptional performance for professional workloads and content creation.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-TRX50AEROD |
| Availability | In Stock |
Overview
- The Gigabyte TRX50 AERO D is engineered for professional workstations demanding extreme multi-threaded performance. Built on the AMD TRX50 chipset, it provides the foundation for Ryzen Threadripper PRO and standard Threadripper 7000 series processors, enabling users to leverage up to 96 cores in a single system.
Memory scalability is exceptional with quad-channel DDR5 architecture supporting up to 1TB of system RAM, critical for memory-intensive applications like 3D rendering, scientific simulation, and machine learning workflows. The motherboard features comprehensive storage expansion with 4x M.2 NVMe slots (PCIe 5.0 and 4.0) and 8x SATA connectors, all supporting RAID configurations for flexible storage strategies.
Connectivity is enterprise-grade with dual 10GbE and 2.5GbE LAN chips, Wi-Fi 7 support (with Windows 11 requirement), dual USB4 Type-C ports, and extensive USB 3.2 Gen 1 and Gen 2 connectivity. The platform includes comprehensive power delivery with dual 8-pin ATX 12V connectors and dedicated headers for advanced cooling solutions, including water cooling pump support.
Ideally suited for professional content creators, researchers, and organisations requiring high-performance computing infrastructure without compromise.
Specifications
| cpu_socket | AMD Socket sTR5 |
|---|---|
| supported_processors | AMD Ryzen Threadripper PRO 7000, AMD Ryzen Threadripper 7000 Series |
| chipset | AMD TRX50 |
| memory_type | DDR5 ECC RDIMM/RDIMM-3DS |
| memory_sockets | 4x DDR5 DIMM |
| maximum_memory | 1TB (256GB per DIMM) |
| memory_architecture | Quad-channel |
| supported_memory_speeds | DDR5 4400 MT/s, 4800 MT/s, 5200 MT/s, 5600 MT/s, 6000 MT/s (OC), 6400 MT/s (OC), 6800 MT/s (OC), 7000 MT/s (OC), 7200 MT/s (OC), 7600 MT/s (OC), 7800 MT/s (OC) |
| memory_profiles | AMD EXPO, XMP |
| pcie_slots | 3x PCIe x16 (2x PCIe 5.0, 1x PCIe 4.0) |
| m2_slots | 4x M.2 Socket 3 (1x PCIe 5.0 x4/x2, 2x PCIe 5.0 x4/x2, 1x PCIe 4.0 x4/x2) |
| sata_connectors | 8x SATA 6Gb/s |
| raid_support | RAID 0, 1, 10 (NVMe and SATA) |
| audio_rear | Realtek ALC4080 CODEC with DTS:X Ultra, 2-channel |
| audio_front | Realtek ALC897 CODEC |
| lan_primary | Marvell AQtion AQC113C 10GbE (10/5/2.5/1 Gbps, 100 Mbps) |
| lan_secondary | Realtek 2.5GbE (2.5/1 Gbps, 100 Mbps) |
| wireless | Qualcomm Wi-Fi 7 QCNCM865 (802.11a/b/g/n/ac/ax/be), Bluetooth 5.3, 2.4/5/6 GHz bands |
| wireless_standards | 802.11be 320MHz (Windows 11 SV3 required) |
| usb_type_a_gen2 | 3x USB 3.2 Gen 2 Type-A (rear), 1x USB 3.2 Gen 2 Type-A (rear) |
| usb_type_c_gen2 | 2x USB4 Type-C (rear), 1x USB 3.2 Gen 2x2 Type-C (internal header) |
| usb_gen1 | 4x USB 3.2 Gen 1 (rear), 2x USB 3.2 Gen 1 (internal header) |
| usb_legacy | 4x USB 2.0/1.1 (internal headers) |
| power_connectors | 1x 24-pin ATX, 2x 8-pin ATX 12V |
| fan_headers | 1x CPU fan, 1x CPU fan/water pump, 4x system fan, 4x system fan/water pump |
| led_headers | 3x addressable RGB Gen2, 1x RGB |
| internal_headers | Front panel, front panel audio, TPM 2.0, 2x temperature sensor |
| buttons | Q-Flash Plus, Clear CMOS, reset, power |
| display_output | 1x DisplayPort In |
| antennas | 2x SMA (2T2R) |
| form_factor | E-ATX |
| warranty | 36 months |
Key Features
Ideal For
FAQs
What processors does the TRX50 AERO D support?
The motherboard supports AMD Ryzen Threadripper PRO 7000 Series and AMD Ryzen Threadripper 7000 Series processors via the Socket sTR5 interface. This includes up to 96-core configurations.
How much memory can this motherboard support?
The TRX50 AERO D supports up to 1TB of DDR5 memory through four DIMM sockets, with individual modules supporting up to 256GB capacity. It uses quad-channel architecture with support for ECC RDIMM modules.
What storage options are available?
The motherboard provides 4x M.2 NVMe slots (supporting PCIe 5.0 and 4.0) and 8x SATA 6Gb/s connectors. Both NVMe and SATA storage support RAID 0, 1, and 10 configurations.
Does this motherboard support Wi-Fi 7?
Yes, it features Qualcomm Wi-Fi 7 (802.11be) with support for 2.4/5/6 GHz bands and Bluetooth 5.3. Wi-Fi 7 functionality requires Windows 11 SV3; Windows 10 drivers are not available. Availability of 6GHz band channels depends on local regulations.
What are the networking options?
The motherboard includes dual Ethernet with a 10GbE Marvell AQtion chip (LAN1) and a 2.5GbE Realtek chip (LAN2), plus Wi-Fi 7 and Bluetooth 5.3 for complete connectivity options.
Can I use multiple graphics cards?
Yes, the motherboard has 3x PCIe x16 slots. The first two slots support PCIe 5.0 at x16 speed, while the third supports PCIe 4.0 at x16. For optimal performance with a single GPU, install it in the PCIEX16_1 slot.
What cooling options are supported?
The motherboard provides dedicated headers for air and liquid cooling, including one CPU fan header, one CPU fan/water pump header, four system fan headers, and four additional system fan/water pump headers for comprehensive cooling flexibility.
What warranty is included?
The Gigabyte TRX50 AERO D includes a 36-month manufacturer's warranty.
